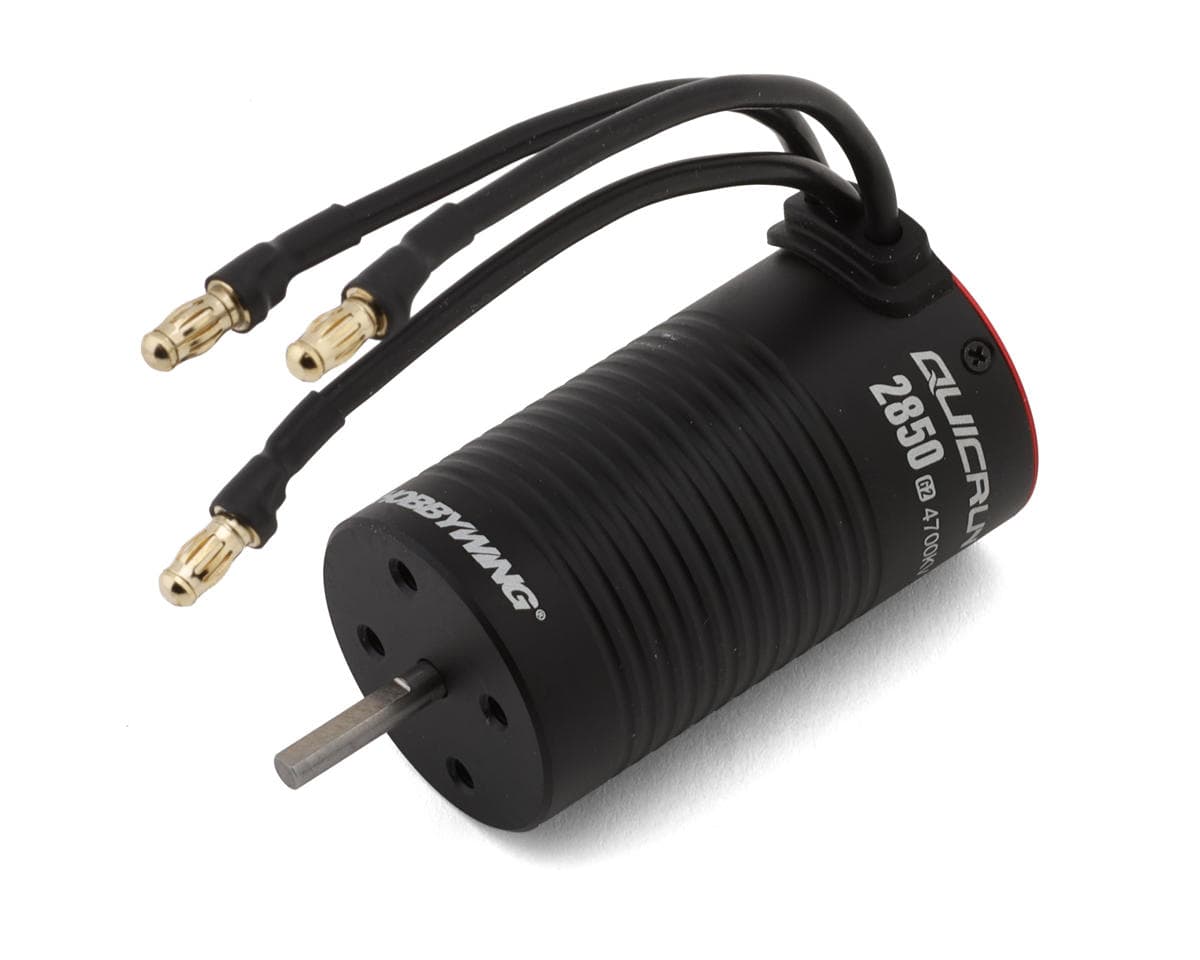

Hobbywing QuicRun 2850SL G2 1/14 Brushless Motor (4700kV)
About this part
Motor Overview:
The QuicRun 2850SL G2 1/14 Brushless Motor from Hobbywing is designed to deliver reliable brushless performance for 1/12 and 1/14 scale RC vehicles. Built with durability and efficiency in mind, this motor provides strong power output while maintaining low operating temperatures. Its rugged construction makes it suitable for both on-road and off-road environments.
About the QuicRun 2850SL G2
Efficient Design With Durable Construction
The QuicRun 2850SL G2 is engineered for high efficiency, low power consumption, and minimal heat buildup during operation. It features an IP56 protection rating to resist dust and light moisture, making it well suited for off-road driving conditions. High-quality internal components such as 0.2mm silicon steel laminations, a high-strength rotor, high-temperature enameled wire, and precision bearings enhance durability and smooth operation. Pre-installed gold-plated 3.5mm connectors simplify installation and make pairing with the recommended QuicRun 12BL45 ESC quick and easy.
Features:
- Designed For 1/12 And 1/14 Scale Vehicles
- High Efficiency And Low Power Consumption
- Low Temperature Rise During Operation
- IP56 Dust And Water Resistance
- Pre-Soldered 3.5mm Gold-Plated Connectors
- 0.2mm Silicon Steel Laminations
- High-Strength Explosion-Proof Rotor
- High-Temperature Resistant Enameled Wire
- Premium High-Precision Bearings
- Recommended For QuicRun 12BL45 ESC
Includes:
- (1) QuicRun 2850SL G2 1/14 Brushless Motor (4700kV)
Specifications:
| Type | Brushless Sensorless |
|---|---|
| Turns | 4700kV |
| Input Voltage | 2S |
| Pole/Slot | 4 |
| Max RPM | - |
| Motor Length | 1.99in (50.5mm) |
| Motor Diameter | 1.1in (28mm) |
| Shaft Diameter | 1/8in (3.18mm) |
| Weight | 4.41oz (125g) |
