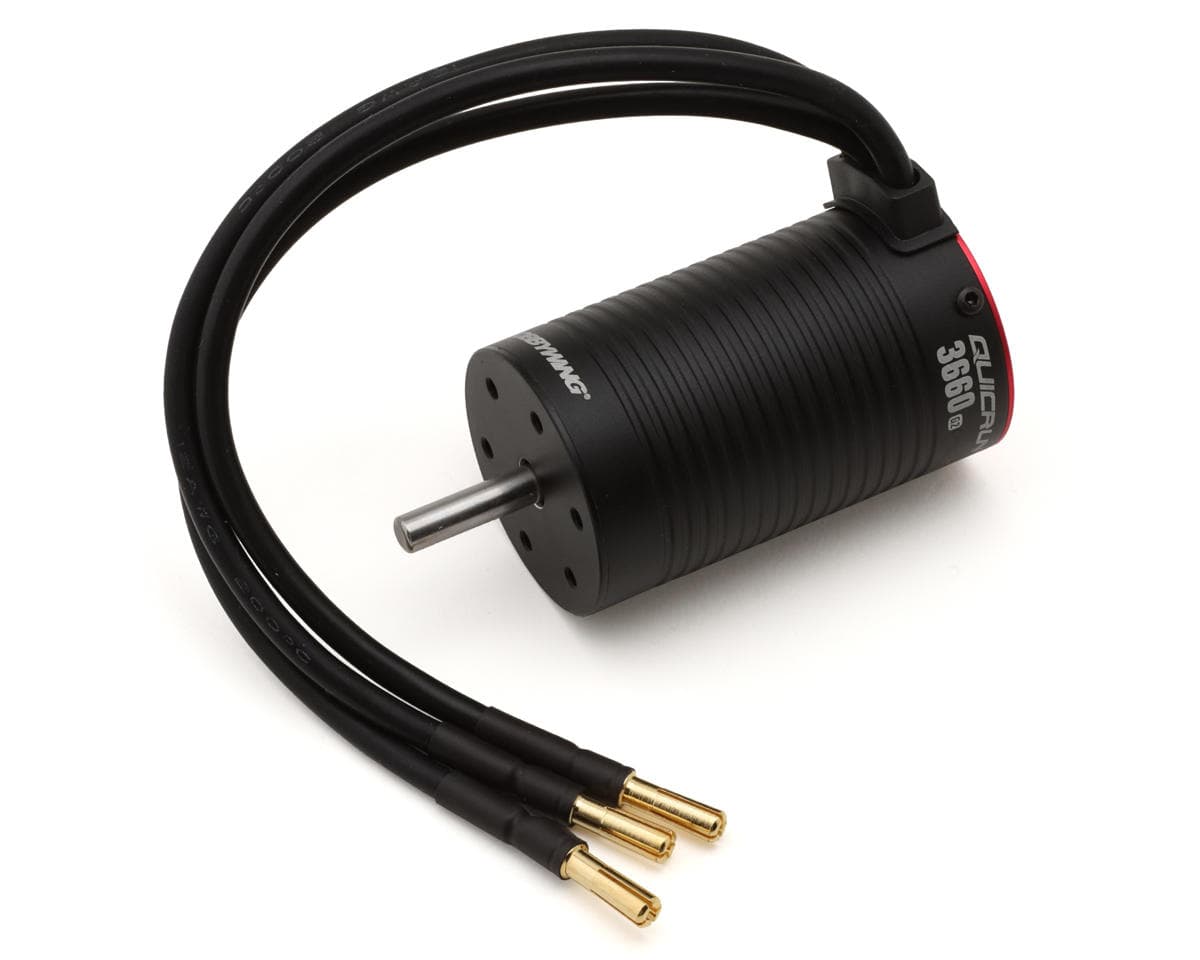

Hobbywing QuicRun 3660SL G2 Sensorless Brushless Motor (3150kV)
About this part
The Hobbywing QuicRun 3660SL G2 Sensorless Brushless Motor is designed to deliver extreme power with higher efficiency This dust-proof motor for will be a great option for off-road vehicles and trucks. Hobbywing has designed a motor compatible with a wide range of RC models. Package includes one brushless motor.
Features:
- High efficiency for more power with lower temperatures!
- 4-pole rotor design for more torque with strong explosive force.
- Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
- 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.
Specifications:
- Input Voltage: 2-3S LiPo
- KV: 3150kV
- Pole: 4
- Motor Diameter: 1.42" (36mm)
- Motor Length: 2.36" (60mm)
- Shaft Diameter: 0.20" (5mm)
- Shaft Length: 0.73" (18.5mm)
- Front Bearing size: D16*D5*T5
- Rear Bearing size: D13*D5*T4
- Weight: 273g
Reviews3.5 · 2 reviews
This motor have power, but you need heatsink to reduce the heat this monster generates. I try heat the motor by going throttle without being put on rc, the motor heat up not fast reach you can feel the motor warm. On rc you need heatsink by force. I recommend to use Arrma heatsink that use 3s line-up they cover more area and the fan is strong enough.
I bought this Quicrun motor for slash 4x4 ultimate. Motor looks very good. Quality wise also looks solid. But motor holes doesn't line up with holes on motor plate. Holes are off by a mm. Whereas other hobbywing motors line up perfectly well with motor plate.
