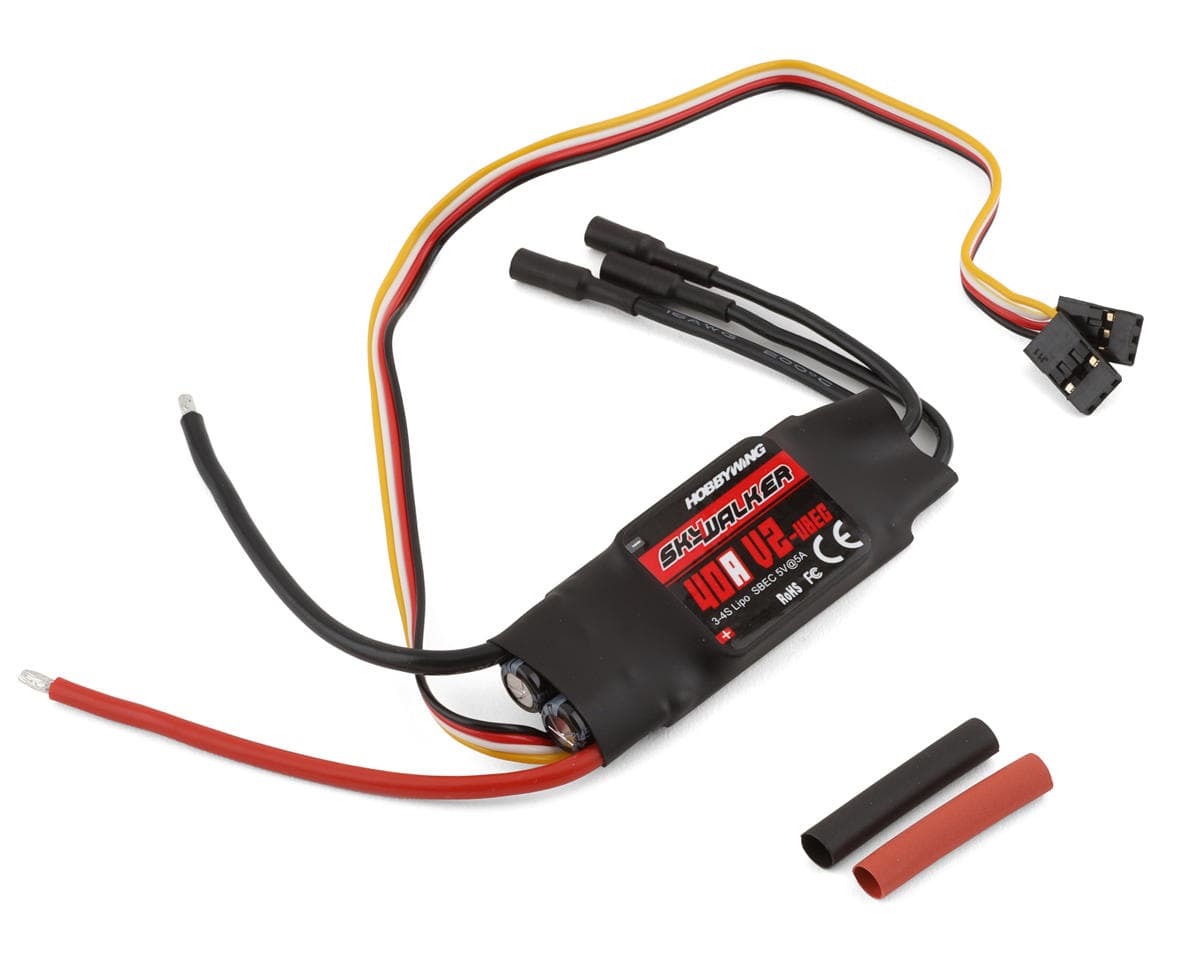

Hobbywing Skywalker 40A V2 40 Amp Brushless ESC (3-4S)
About this part
ESC Overview:
Hobbywing Skywalker 40A V2 40Amp Brushless ESC. This high performance Electronic Speed Controller was specially designed for air applications to maximize their potential performance. Features a high performance 32-bit microprocessor with a running frequency of up to 96MHz, DEO (Driving Efficiency Optimization) technology that greatly improves throttle response and driving efficiency and reduces ESC temperature. This Skywalker ESC is also equipped with normal and reverse brake modes that can effectively shorten the landing distance for the aircraft and a search mode can help users find the aircraft by the alarm beeps after the aircraft falls into a complex environment. Get your Skywalker ESC and experience high performance and efficiency with many protection features to keep your electronics safe and ready to get your planes airborne!
Features:
- High performance 32-bit microprocessor (with a running frequency of up to 96MHz)
- DEO (Driving Efficiency Optimization) Technology that greatly improves throttle response driving efficiency and reduces ESC temperature.
- Separate programming cable for connecting the ESC to a LED (program box - Sold Separately) that allows users to program the ESC anytime and anywhere.
- Normal and Reverse brake modes that can effectively shorten the landing distance for the aircraft.
- Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment
- Multiple protection features such as start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss will effectively prolong the life of the ESC
Specifications:
- Model: 40A V2
- Input Voltage: 3-4S
- BEC Output: 5V @ 5A (Switch-mode)
- Continues Current: 40A
- Peak Current: 60A
- Dimensions: 60x25x8mm (LxWxH)
- Weight: 36g
- Wire Input: 14AWG-100mm
- Wire Output: 16AWG-75mm
- Output Connectors: 3.5mm Bullets (Female)
Includes:
- (1) Hobbywing Skywalker 40A V2 40Amp Brushless ESC
Reviews5.0 · 2 reviews
The Hobbywing 40amp ESC V2 3-4S is a great speed controller. I have used mine on my 3D flatty for months now and it has worked flawlessly. I have noticed that the size and weight of V2 ESC is much less than previous versions which is great!
You can't beat the price. I was hesitant buying it for my 3D plane but it actually has smooth throttle response. I've been using it in my precision Aerobatic Ultimate AMR V2 because my PA Quantom esc burnt out. It is just as smooth as the Quantum esc running the PA Thrust 45 Revo 24 BL outrunner motor. Highly recommend if you are on a budget or just want a capable esc with smooth throttle response. I also love the reverse feature. Makes 3D much more interesting.
