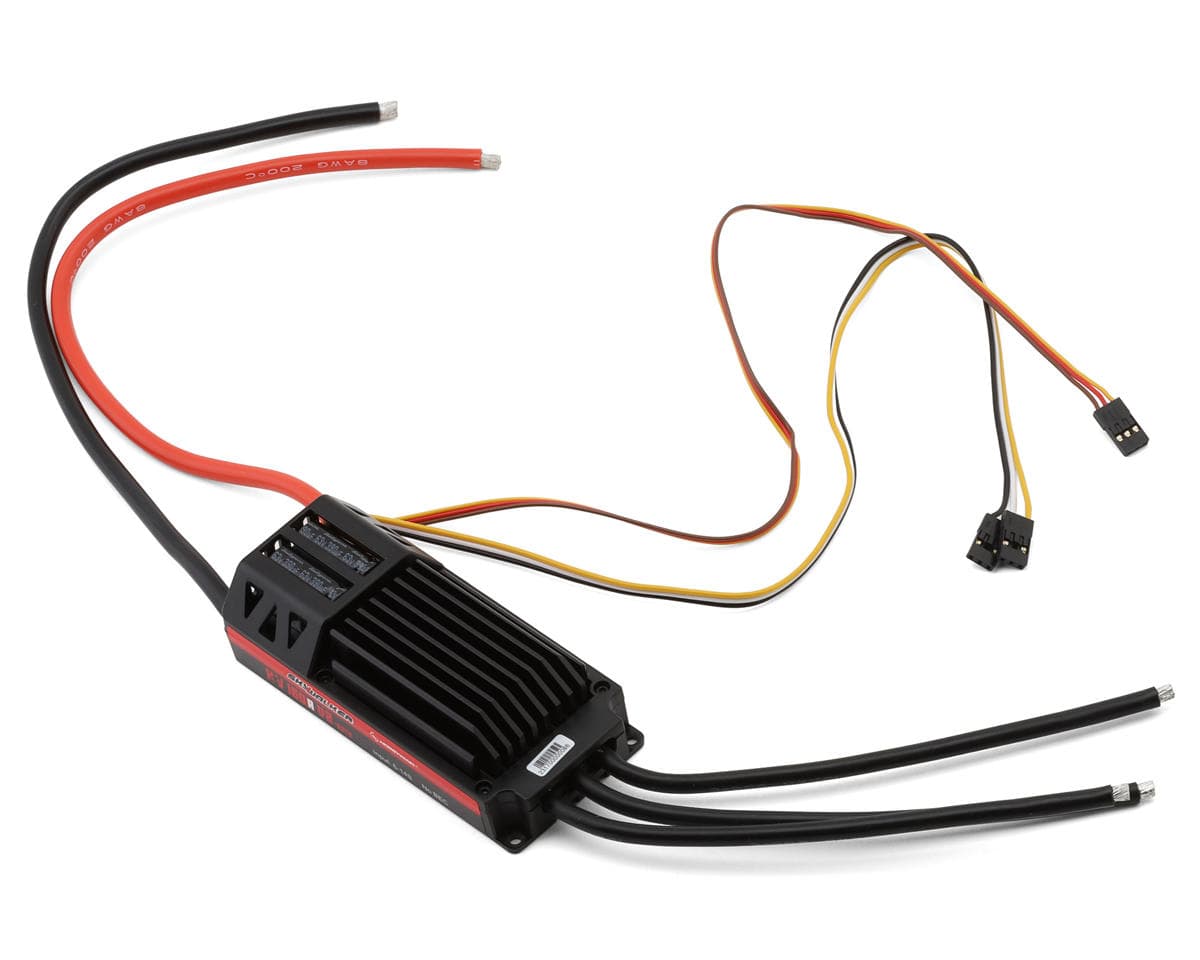

Hobbywing SkyWalker V2 160 Amp Brushless ESC (OPTO) (6-14S)
Hobbywing

Hobbywing SkyWalker V2 160 Amp Brushless ESC (OPTO) (6-14S)

Part # HWA30222301
Where to buy
$134.99
AMain Hobbies
Seen Oct 12, 2026
$134.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

SkyWalker V2 ESC Overview:

The Hobbywing SkyWalker V2 160 Amp Brushless ESC delivers exceptional control and efficiency for high-performance aircraft. Equipped with a powerful 32-bit ARM M4 microprocessor running at up to 120MHz, it ensures precise and responsive throttle management for all your flight needs. Designed for compatibility with a wide range of brushless motors, this ESC provides smooth operation and reliability in demanding flight environments. Whether you're flying aerobatic planes or large-scale models, the SkyWalker V2 is built to handle the challenge.

About the SkyWalker V2


Smooth & Reliable Performance

The SkyWalker V2 ESC stands out with advanced DEO (Driving Efficiency Optimization) technology, offering smoother throttle response and reduced heat buildup. A dedicated programming cable allows quick adjustments via the Hobbywing LED program box, making setup easy and flexible. Its intelligent protection suite covers startup safety, temperature monitoring, and signal loss prevention for dependable operation. The reverse brake mode shortens landing distances, while the unique search mode helps you locate your aircraft if it goes down in complex terrain.

Features

  • High-performance 32-bit ARM M4 microprocessor
  • DEO technology for improved throttle response and efficiency
  • Compatible with various brushless motors
  • Reverse brake mode for shorter landing distance
  • Search mode with audible beeps for aircraft recovery
  • Multiple protection functions for reliability and safety
  • Separate programming cable for quick configuration
  • Optimized heat management and power output

Includes:

  • (1) SkyWalker V2 160 Amp Brushless ESC
  • (1) Programming Cable
  • (1) User Manual

Specifications:

Suggested Application Aircraft
Motor Type Brushless
Input Voltage 6-14S (22.2-61V)
Continuous Current 160A
Burst Current 200A
Dimensions (LxWxH) 4.09x1.89x1.14in (104x48x29mm)
Weight 9.27oz (262.8g)
Motor Limits -
BEC Voltage No BEC
BEC Continuous Current No BEC
BEC Peak Current No BEC
Motor Connector -
Battery Connector -
Programming Yes

Manuals:

User Manual
