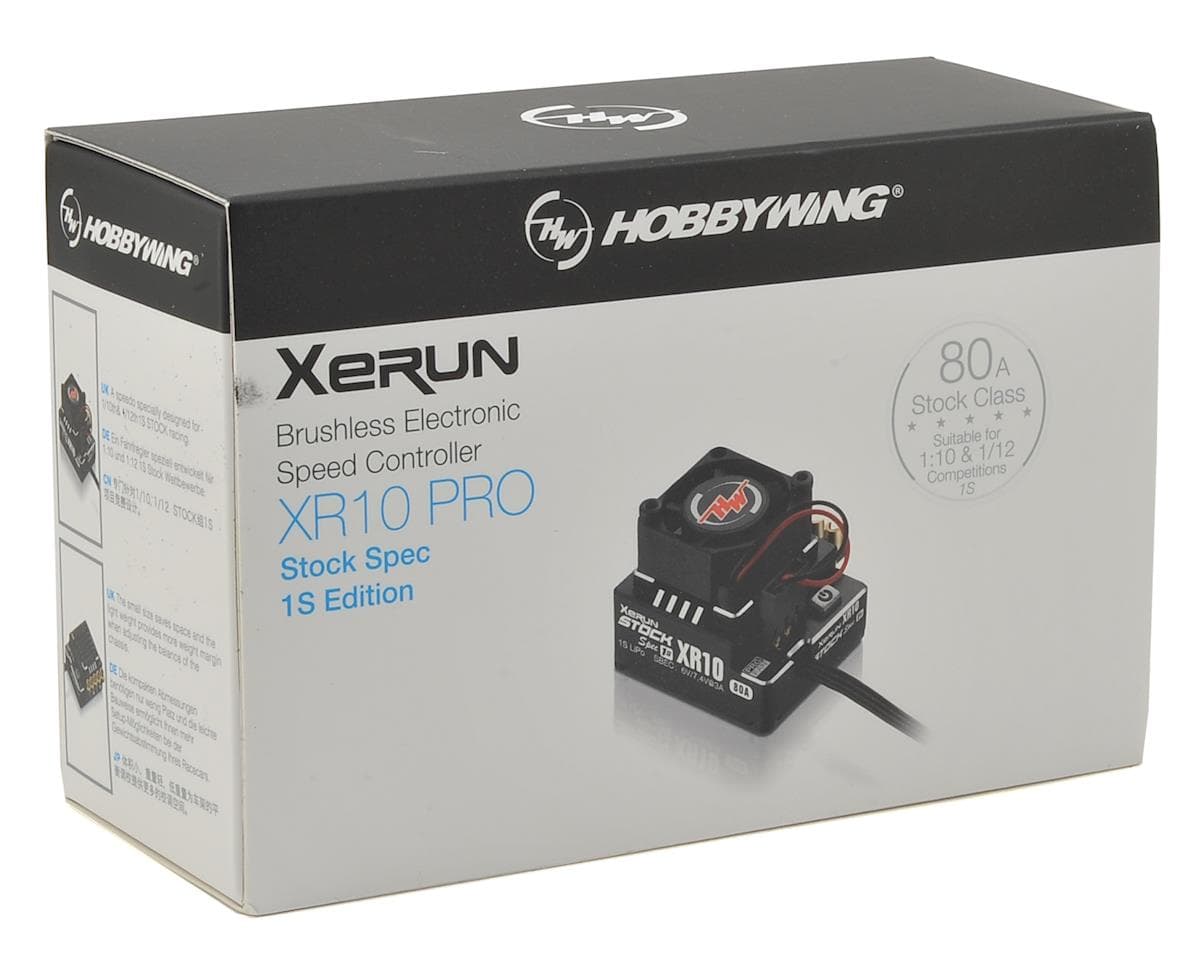

Hobbywing Xerun XR10 Pro 1S Stock Spec 1/12 Sensored Brushless ESC
About this part
Features:
- Special Design for Stock 1S Class Racing: Reliable hardware combined with powerful software (contains 5 common select-to-use profiles) provides an ideal power solution for 1/12th Stock 1S class racing
- Super Internal BEC: The built-in boost BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows users to use various, servos and receivers (without connecting any extra battery).
- Adjustable Throttle & Brake PWM Frequencies: The independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control.
- Programming/Upgrading/Data Reading Wirelessly: With Hobbywing's optional "WiFi Express" module (HWA30503000 - not included) and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.
- Built-in Electronic Switch: The internal electronic switch with a lifespan of over 50,000 on/off cycles completely solves the problems like stuck reed, rust contact points, and automatic shutdown that conventional mechanical switches often have.
- Data-logging Capability: This ESC features the data-logging function which will record the maximum ESC & motor temperatures, the maximum motor RPM, and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use.
Cont./Peak Current: 80A/380A
Input Voltage: 1S Lipo/3-4 Cell NiMH
BEC Output: 6V/7.4V@3A
Wires: Black-14AWG-200mm
Connectors: No
ESC Programing: LCD Program Box or WiFi Module
Firmware Upgrade Supported: Yes
Size: 31.6x25.8x16.2mm
Weight: 23.5g (w/o Wires)
Applications: Stock 1S class of 1/10th & 1/12th on-road racing.
KV Rating/T Count: ?10.5T, 3650-size Motor
Reviews4.9 · 17 reviews
Great product, fair price, good folks to deal with.
Awesome, awesome speed control!! Runs flawlessly highly recommend it!!
nice esc .... replaced my tekin stuff, much happier with the hobbywing
This is my 3 one. Using in my R5F1 and it works great. Small and light. The second one I accidentally smoked by connecting the battery backwards.done do that!
Works great in my 1/12 pancar very happy with the product. Hobbywing makes nice stuff.
Reviewers overwhelmingly rate this 1S sensored brushless ESC highly, with nearly all reviews giving five stars. Recurring praise centres on its small size and light weight, which suits 1/12 scale pan cars and Formula 1 chassis, and on its straightforward setup and programming. Several reviewers note good value for the price and reliable operation across racing classes. One reviewer found the factory motor wires limiting and replaced them with 16 gauge wire, while another noted the lack of wire options in the package. One review reports a unit being destroyed by connecting the battery backwards, and another reviewer repeats that warning. Most reviews are from verified owners, though overall sample size is moderate.
- + small and lightweight
- + easy setup and programming
- + good value for price
- + reliable performance
- − factory motor wires may be limiting
- − battery reverse polarity destroys unit
- − no wire options included
