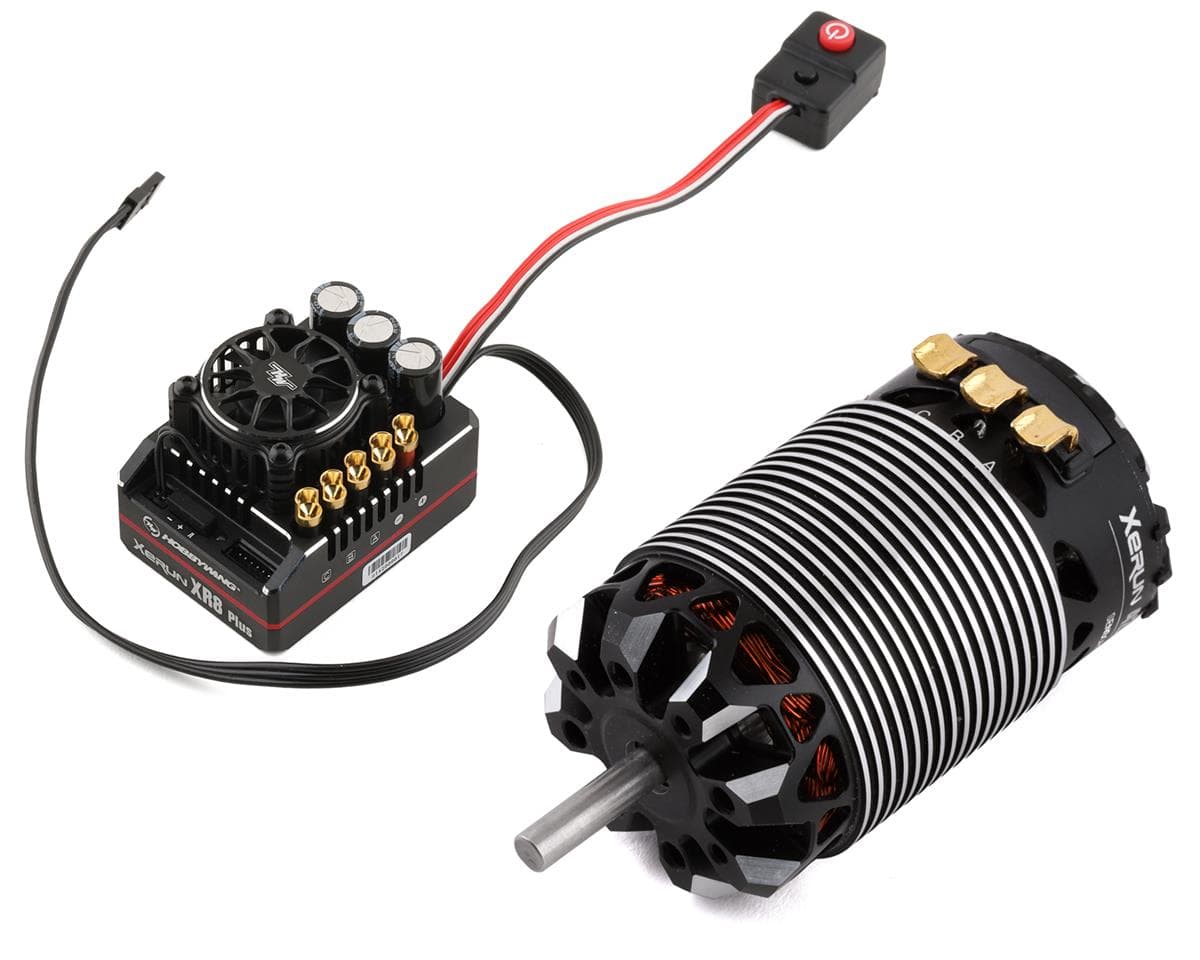

Hobbywing Xerun XR8 Plus G2S Brushless ESC/4268SD G3 Motor Combo (2000kV)
Part # HWA38020502
Where to buy
$309.99
Prices are as last seen at the store; stock is not tracked.
About this part
Hobbywing Xerun XR8 Plus G2S Brushless ESC/4268SD G3 Motor Combo. The Hobbywing Xerun XR8 Plus G2S 1/8 Competition Sensored Brushless ESC is the next level in 1/8 competition ESC's. Advancements have been made allowing this ESC to support 48° of boost and turbo timing. Pair this ESC with the included 4268SD G3 motor for extreme performance.
TECH NOTE: The included motor is recommended for 1/8th On-Road applications only.
Features:
TECH NOTE: The included motor is recommended for 1/8th On-Road applications only.
Features:
- ESC:
- Efficient heat dissipation system with lower temperature rise
- Durable frameless fan
- Internal Reverse Polarity Protection Circuit
- RPM speed limit function
- Easy Obtain Running Status with Real-time Data Recording Function
- Multiple Programmable Items
- Capacitor Thermal Protection
- Super Internal BEC
- Excellent dustproof performance
- Ultra-soft 11AWG silicone wire
- Customized solder tabs, easy to solder
- Motor:
- 2000Kv recommended for 1/8 on road
- Turbo Timing Technology
- Full Sensored mode (when paired with XR8 ESC)
- Adjustable Timing (Bi-Directional) 20-40 degrees
- Advanced Hall Sensor System
- 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
- Guarantees users the effective heat dissipation and dust prevention
- The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability
Specifications:
- ESC:
- Scale: 1/8th
- Waterproof: No
- Continuous/Peak ESC Current: 200A/1080A
- Input Voltage: 2-6S Lipo
- BEC Output: 6-8.4V Adjustable,
- Continuous/Peak BEC Current: 6A/15A(Switch-mode)
- ESC Programing: SET Button on ESC/LCD Program Box/OTA Programmer
- Firmware Upgrade: Supported
- Size: 56.1mmx42.1mmx38.5mm
- Weight: 122g(w/wires)
- Applications: SL BL Motors/SD BL Motors
- Vehicles: 1/8th On-Road/Off-Road/Truggy Racing
- KV Rating/T Count: 4S LiPo - 4268/4274 3000KV / 6S LiPo - 4274 2400KV
- ESC Fan:
- Size: 30x30x10mm
- Voltage Range: 5-8.4V

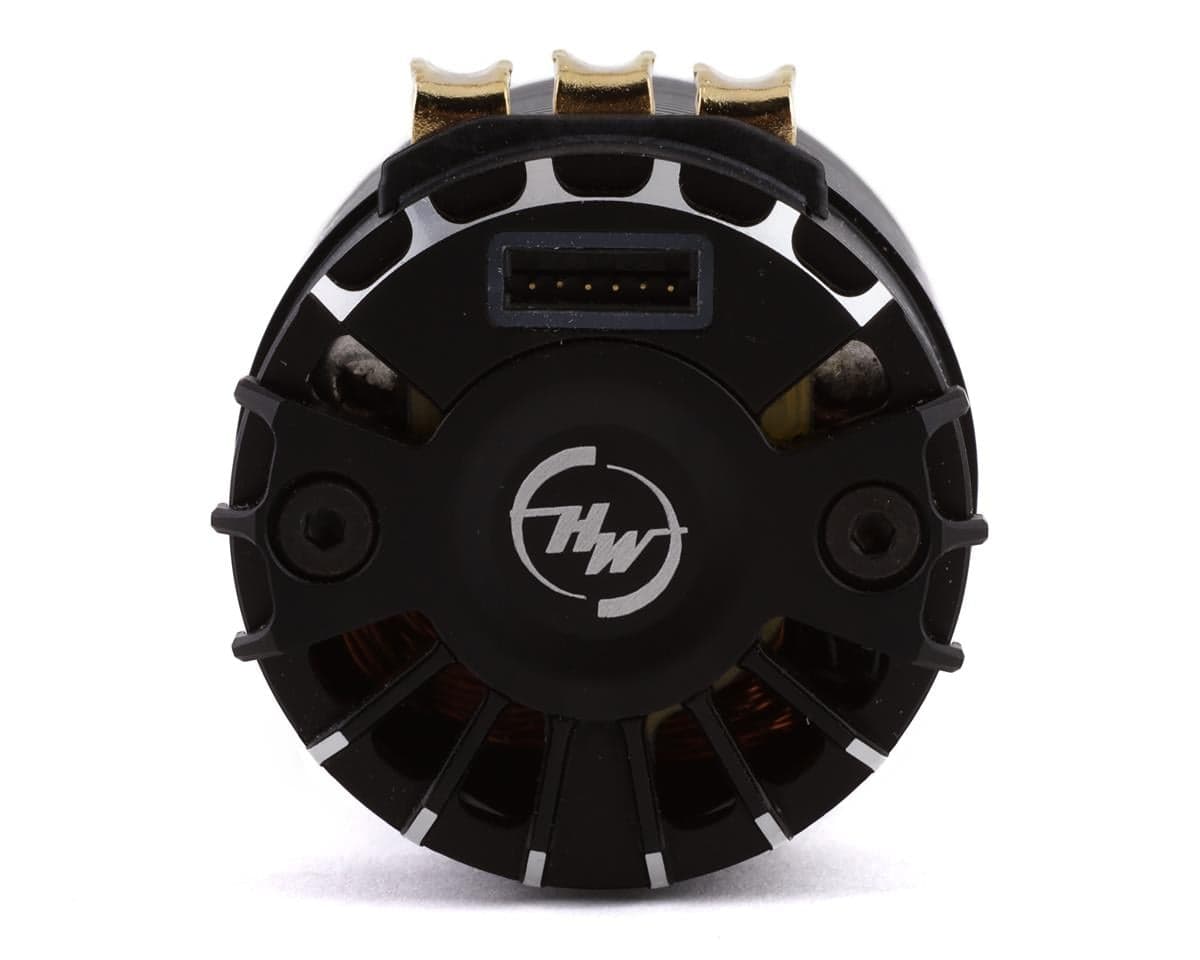

- Motor:
- Kv: 2000Kv
- Pole: 4
- LiPo: 2S-6S
- Shaft Diameter: 5mm
- Resistance: 0.0069
- No Load Current: 4.2A
- Size (Diameter x Length): 42x68mm
- Weight: 285g
- Application: 1/8 On Road
