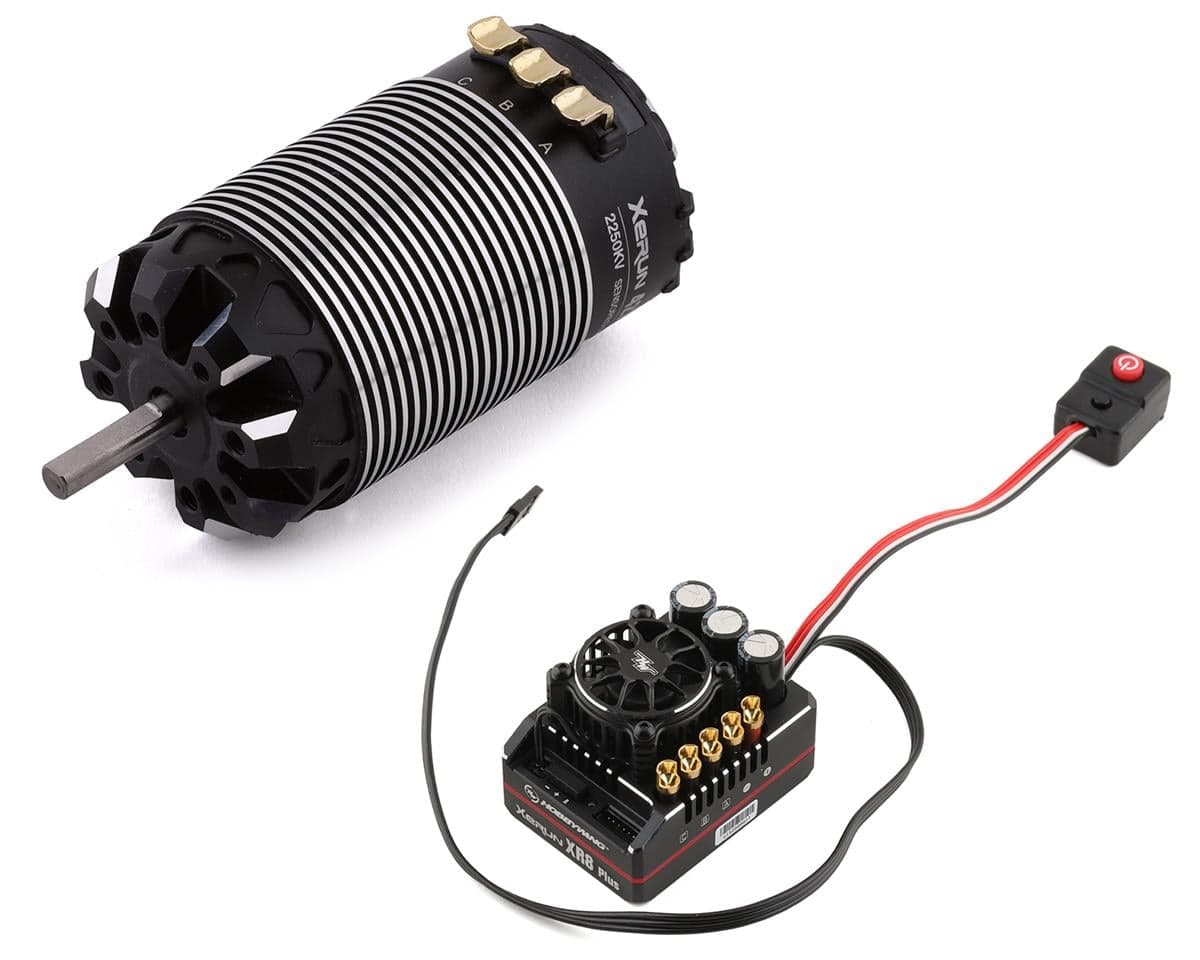

Hobbywing Xerun XR8 Plus G2S Brushless ESC/4274 G3 Motor Combo (2250kV)
About this part
- ESC:
- Efficient heat dissipation system with lower temperature rise
- Durable frameless fan
- Internal Reverse Polarity Protection Circuit
- RPM speed limit function
- Easy Obtain Running Status with Real-time Data Recording Function
- Multiple Programmable Items
- Capacitor Thermal Protection
- Super Internal BEC
- Excellent dustproof performance
- Ultra-soft 11AWG silicone wire
- Customized solder tabs, easy to solder
- Motor:
- 2250Kv recommended for 1/8 off road
- Turbo Timing Technology
- Full Sensored mode (when paired with XR8 ESC)
- Adjustable Timing (Bi-Directional) 20-40 degrees
- Advanced Hall Sensor System
- 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
- Guarantees users the effective heat dissipation and dust prevention
- The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability
- ESC:
- Scale: 1/8th
- Waterproof: No
- Continuous/Peak ESC Current: 200A/1080A
- Input Voltage: 2-6S Lipo
- BEC Output: 6-8.4V Adjustable,
- Continuous/Peak BEC Current: 6A/15A(Switch-mode)
- ESC Programing: SET Button on ESC/LCD Program Box/OTA Programmer
- Firmware Upgrade: Supported
- Size: 56.1mmx42.1mmx38.5mm
- Weight: 122g(w/wires)
- Applications: SL BL Motors/SD BL Motors
- Vehicles: 1/8th On-Road/Off-Road/Truggy Racing
- KV Rating/T Count: 4S LiPo - 4268/4274 3000KV / 6S LiPo - 4274 2400KV
- ESC Fan:
- Size: 30x30x10mm
- Voltage Range: 5-8.4V
- Motor:
- Kv: 2250Kv
- Pole: 4
- LiPo: 2S-6S
- Shaft Diameter: 5mm
- No Load Current: 5.4A
- Size (Diameter x Length): 42x74mm
- Weight: 354g
- Application: 1/8 Off Road Truck
Reviews5.0 · 3 reviews
This combo in my Tekno ET48 2.2 14t pinion, is almost too much. Naaaaa just kidding!! It’s awesome super smooth motor runs cool even without a fan. So far no issues at all, good job again Hobbwing.
Best 1/8 ESC/MOTOR COMBO HANDS DOWN. HAS NEVER FAILED ME.
This motor is ridiculously fast, durable and good looking. TLR TTT
Three reviews, all rating the Hobbywing Xerun XR8 Plus G2S ESC and 4274 G3 motor combo (2250kV) 5 out of 5. Reviewers describe the combo as smooth, fast and durable, and one reports running it in a Tekno ET48 2.2 with a 14-tooth pinion without issues, noting the motor runs cool without a fan. Another says it has never failed. Reviewers do not report any disagreement. The sample is very small and covers only short-term use, so long-term durability is not established by these reviews.
- + Smooth operation
- + Runs cool, even without a fan
- + Fast
- + Durable, no failures reported
