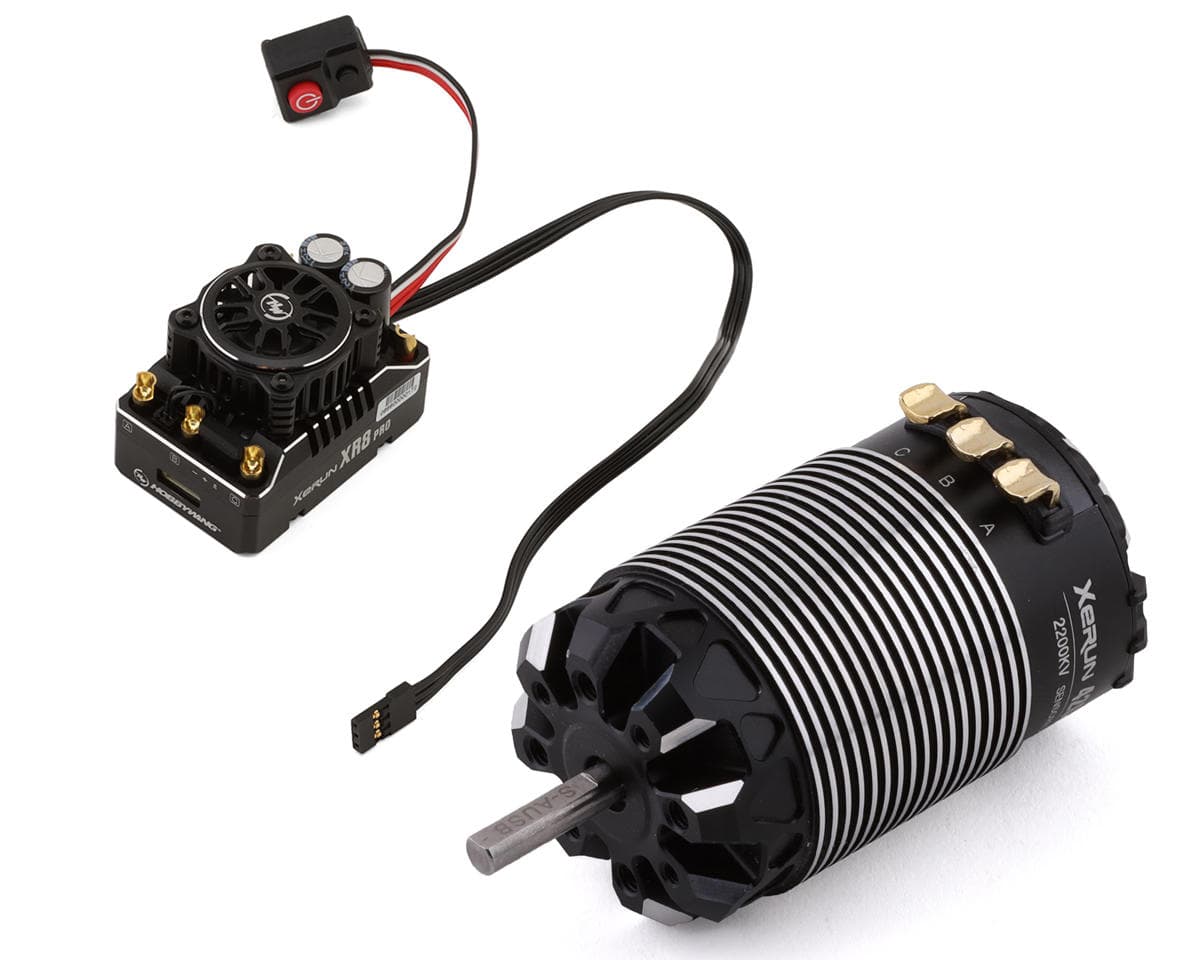

Hobbywing Xerun XR8 Pro G3 Brushless ESC/4268SD G3 Motor Combo (2200kV)
About this part
Xerun XR8 Pro G3 Sensored Brushless Combo
The Xerun XR8 Pro G3 Brushless ESC and motor combo is Loaded with cutting-edge technologies and features, this 1/8 competition combo is designed to provide a higher level of performance and reliability for all competitive racers looking for the ultimate smooth control and supreme power you'd come to expect from Hobbywing! For added protection, this ESC (Electric Speed Control) is equipped with advanced thermal protection and reverse polarity protection. These advancements allow for an ESC that is designed to outperform the competition.
NOTE: Use appropriate settings provided by the factory or team drivers. Check the operating temperature in order to maximize your electronics. The wrong settings may damage the ESC or motor.
Features:
- XR8 Pro G3
- Smart freewheeling technology enables the ESC to have higher drive efficiency and lower operating temperature
- Compared with the XR8 Pro G2, the maximum temperature is reduced by approximately 59F
- Dual brake mode
- Advanced Turbo and Boost timing technology
- Built-in reverse polarity protection circuit
- Real-time data recording function, easy to obtain power running status
- Capacitor thermal protection is designed and implemented into the ESC and will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload
- Superior dustproof protection
- Custom ultra-soft 11AWG silicone wire
- Frameless fan blade is designed with specially formulated material to reduce the defective rate of the fan caused by impact from small stones, sand, and other foreign objects
- Intelligent fan with noise reduction and power saving functions
- 4268SD G3 Motor
- 2200Kv recommended for 1/8 off road
- Turbo Timing Technology
- Full Sensored mode (when paired with XR8 ESC)
- Adjustable Timing (Bi-Directional)
- Advanced Hall Sensor System
- 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
- Guarantees users effective heat dissipation and dust prevention
- Double insulated windings (240°C R-rated)
- Outstanding performance and super durability
Specifications:
- ESC:
- Scale: 1/8
- Type: Brushless Sensored
- Input Voltage: 2-4S LiPo
- BEC Output: 6V/7.4V Adjustable
- Continuous: 200A
- Peak: 1080A
- Motor Limit: 3S Lipo: KV= 4000 3660 Size motor / 4S Lipo: KV= 3000 4268 Size motor
- Braking mode: FOC/BLDC
- Programmable: Yes, Via OTA Programmer or LCD G2 Program Box
- Suitable applications: 1/8 Off-road, On-road Racing & 1/10th Short course & Monster truck
- Size(LxWxH): 54.8x38.8x36.8mm
- Weight: 102.8g
- Motor:
- KV: 2200KV
- Pole: 4
- LiPo: 2S-6S
- Resistance: 0.0069
- Shaft Diameter: 5mm
- No Load Current: 4.1A
- Size (Diameter x Length): 42x68mm
- Weight: 285g
- Application: 1/8 Off Road

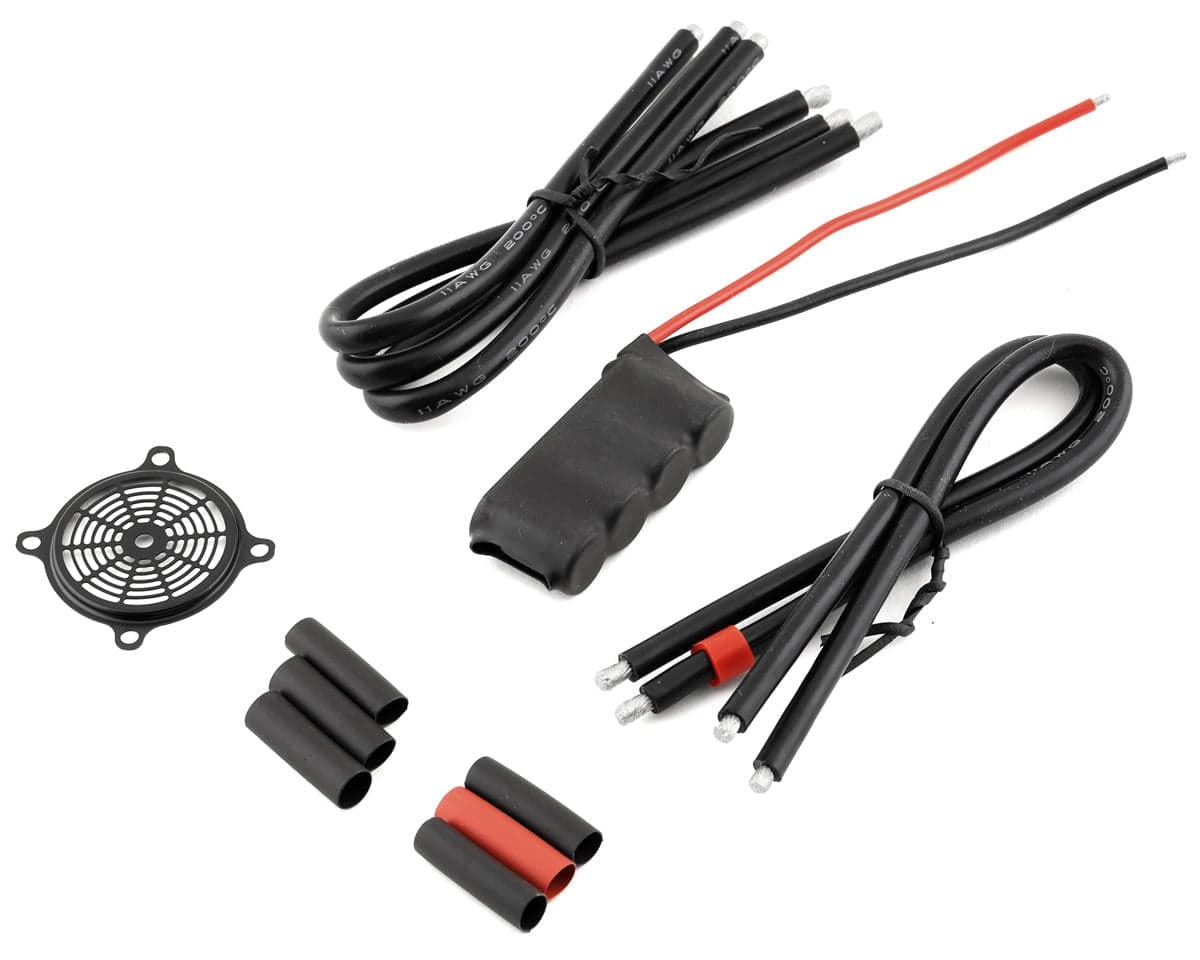

Includes:
Reviews4.6 · 7 reviews
Great combo for the price! Been running in ebuggy. Zero issues. Intelligent fan is nice. ESC is smaller than G2s, don't need as much room.
Best buggy or truggy combo for the money. A+ combo.
Very affordable without any compromise on quality. I have and would buy again.
A great product at a great price! Shipping is fast and packaged well! I’ll continue purchasing from A main hobbies. Can’t beat em’!
I have this in combo in a Serpent GTe '23, so it is not seeing the force of jumping. I have not had any issues with it other than slight heat (198 F) when doing 30-35 minute runs at pretty much full speed. I do not know if jumps are causing the issues others have had, but I have not had any. The system is smooth and very tunable.
Six of seven reviewers are verified owners who rate this 2200kV combo 5/5, praising its value, power in buggy and truggy applications, smooth tunable throttle response, and the intelligent fan. One reviewer running it in a Serpent GTe reports slight heat (198 F) after 30 to 35 minute runs at near full speed but no failures. The single 2/5 review describes an ESC that failed after about three minutes, with a warranty claim leading to an offer of a discounted replacement rather than a free one. That reviewer advises against the brand. The reviews are mostly positive but the sample is small, and the one negative account describes a failure and warranty experience that the others do not mention.
- + Strong value for the price
- + Good power in buggy and truggy use
- + Smooth, tunable throttle response
- + Intelligent fan
- − ESC failed after about 3 minutes in one report
- − Warranty replacement required paying a discounted price
- − Slight heat during long, near-full-speed runs
