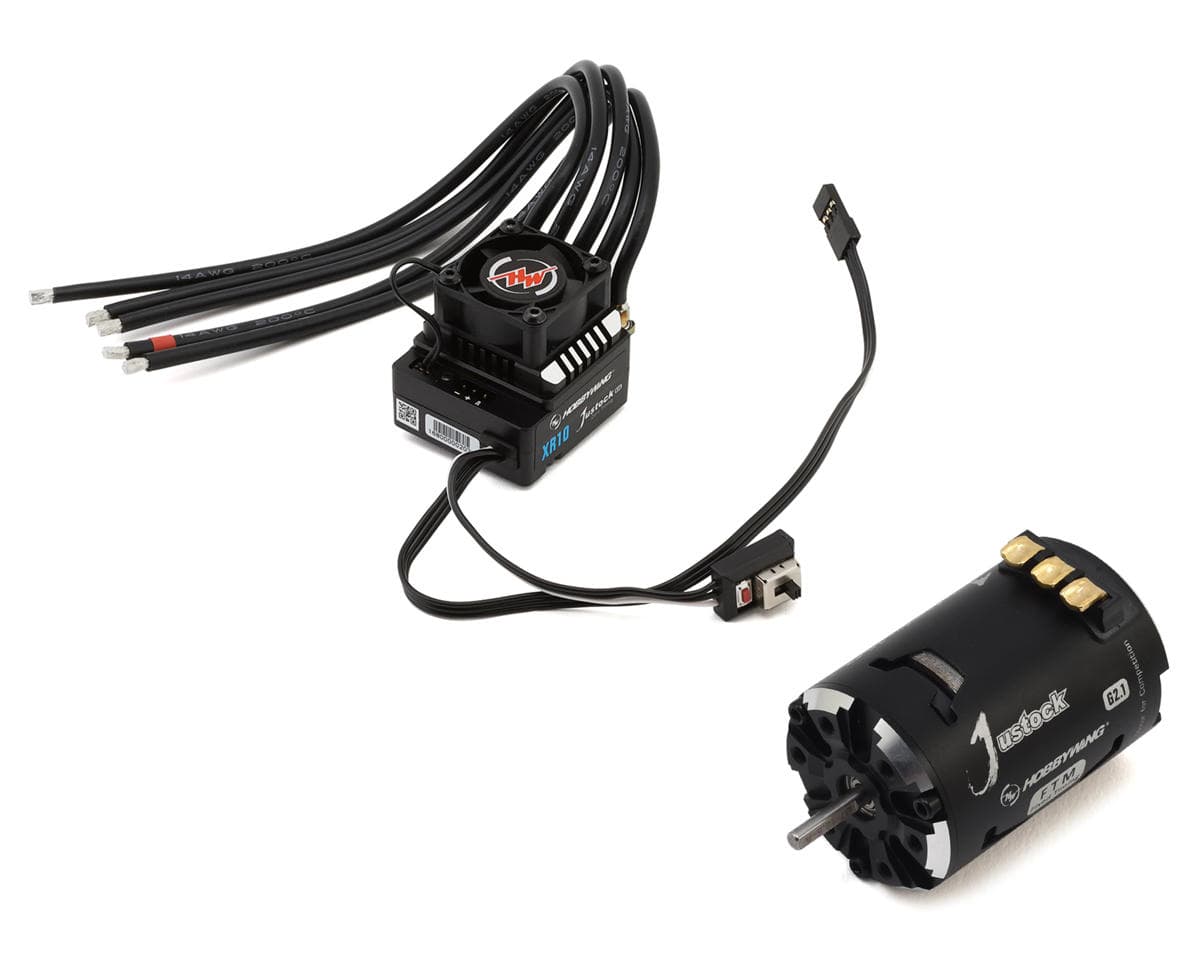

Hobbywing XR10 Justock G3S Sensored Brushless ESC/SD G2.1 Motor Combo (10.5T)
About this part
Combo Overview:
The Hobbywing XR10 Justock G3SS Sensored Brushless ESC/SD G2.1 Motor Combo has been designed with fixed, 0°, timing for spec class racing. The included SD G2.1 motor is an ideal stock motor for both 1/10 and 1/12 on and off-road racing. These two components paired together make for an ideal choice for beginners and experts alike.
Note: This product photo may not fully depict the described item. For comprehensive details on the listed product, please refer to the specifications provided.
Features:
- ESC:
- Built-in polarity protection. The XR10 Justock has integrated MOSFET's that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system
- Programmable via OTA Wireless module or 3in1 program box
- Built-in capacitor module eliminates the need for external capacitors and unwanted space
- RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)
- Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing
- Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V
- Calibration or performing a factory-reset can be achieved by using this SET button. Simple and easy to use
- Supports both CCW (counterclockwise) and CW (clockwise) motor directions
- Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection
- ESC includes the Freewheeling setting allowing for lower ESC temps enhancing drivability through corners
- Built-in data logging for post-run reports

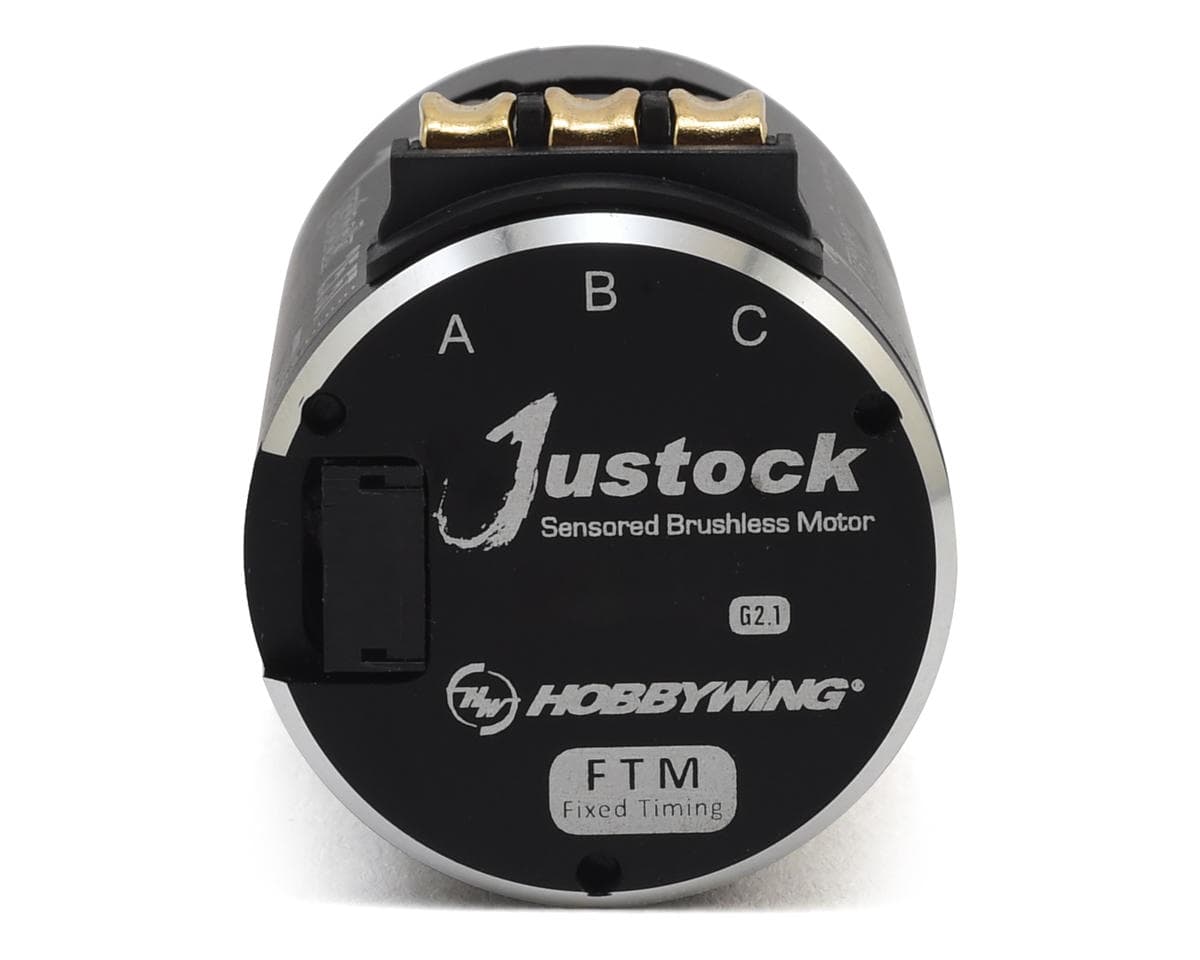

- Motor:
- Use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability
- Built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand
- Silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor
- Detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice
- The motor design is in compliance with IFMAR, and ROAR specifications
Specifications:
- ESC:
- Continuous Current: 60A
- Burst Current: 380A
- Battery: 2S Lipo (Only 2S)
- Built-in BEC: 6V/7.4V @ 4A(Switch-mode)
- ESC programming: Independent programming port
- Motor Supported: Sensor and sensorless brushless motor
- Motor Limit: 10.5T, or greater,3650 Motor
- Application: 1/10, 1/12 On-road and Off-road
- Cooling Fan: Powered by BEC
- Size: 40.9x33.9x32.1mm (LxWxH)
- Weight: 75.4g (Including weight of wire)
- ROAR Approval: Yes
- Motor:
- Scale: 1/10, 1/12
- Brushless: Yes
- Sensored: Yes
- Pole Count: 2
- KV Rating: 4000kV
- LiPo Cells: 2-3S
- No-Load Current(A): 4.9A
- Outer Diameter: 35.9mm (1.413")
- Length: 52.5mm (2.067")
- Shaft Diameter: 3.17mm (0.125")
- Weight: 175g (6.17oz)
- Timing: Fixed
Includes:
- (1) Justock G3SS ESC
- (1) Justock 10.5T G2.1 brushless motor
- (1) 5V cooling fan

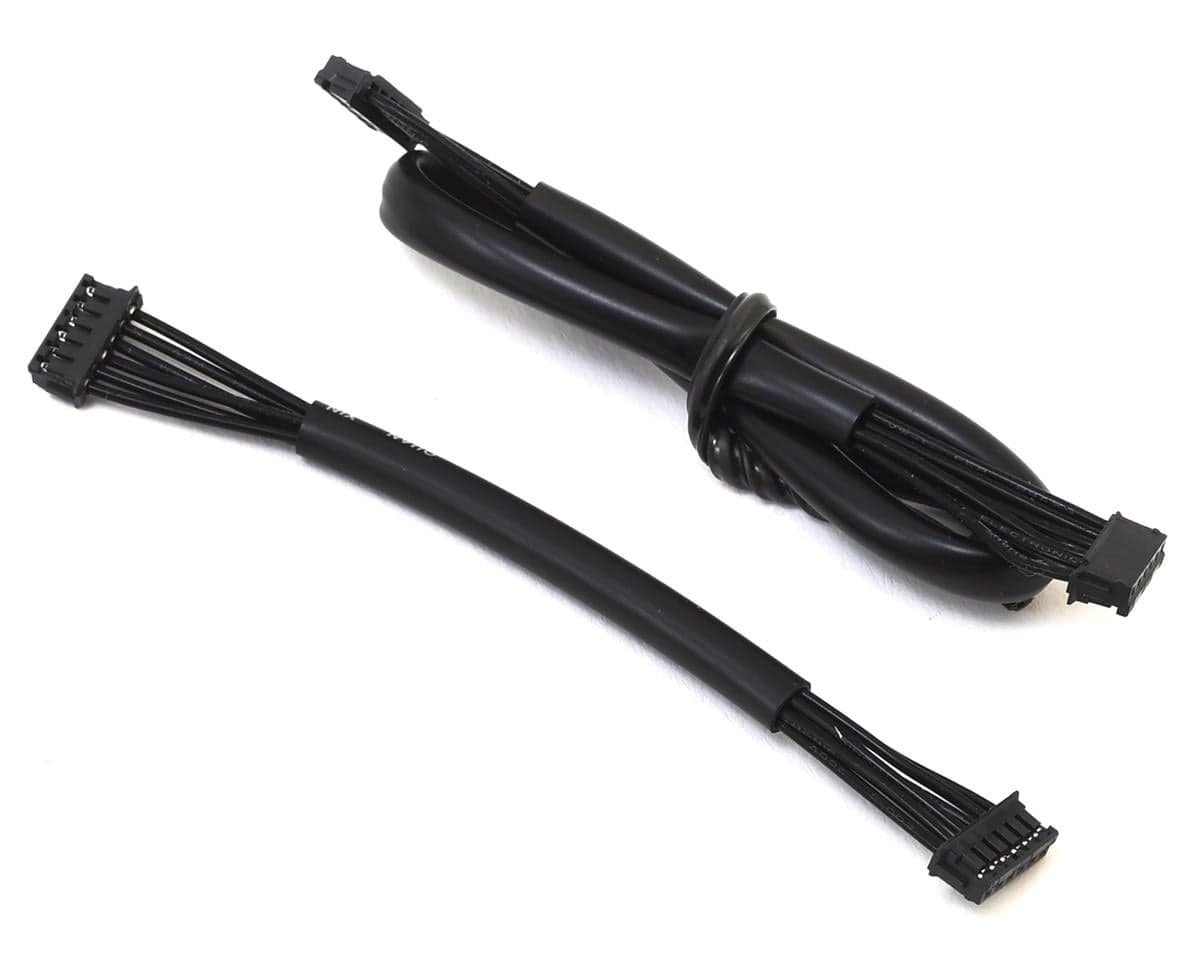

- (1) Sensor cable
Reviews3.8 · 4 reviews
I love justocks. The escs fit anywhere and you can gear these things to Jupiter and back before they even think about getting hot. The 14 awg wire is very flexible and easy to solder. I’ve got a 13.5 combo in my velocity sprint car and it’s proved to do just fine against some of the higher end systems. Currently running 34/69 gearing with a 30mm lrp fan. Motor is ~120 degrees after a 3 minute race.
Got it on sale for 30 dollars off. Put it in a Hobao EPX. For the price it is smooth and great for parking lot fun, but I am not racing and should have gotten the EZRUN 3300 combo as that was only 30 dollars more and it is way more versatile. I am still giving 5 stars because my poor choice does not warrant downgrading of a very good product.
Requires programmer, but for the price that is ok. I bought for a beginner drift car and so far it runs great on my home "track" .
I’m very happy with the motor but the ECU shipped the bed so I’m definitely not happy about that so now I need to get a new ECU very unhappy customer
Four reviews, averaging about 3.75 out of 5. Reviewers generally praise the combo's smoothness, flexible 14 AWG wire, and value for the price, with one describing it as strong for a 13.5 sprint-car setup and gearing with a fan. Owners report the motor running reasonably cool in their setups. A beginner drift user and a parking-lot basher report good performance. Criticisms are limited: one reviewer says a programmer is required, another regrets not choosing a different combo for racing, and one reports the ECU arrived damaged and needed replacing. The sample is small, so these views may not represent all buyers.
- + Smooth running for the price
- + Flexible, easy-to-solder 14 AWG wire
- + Runs cool under race conditions with a fan
- + Good value for beginner and casual use
- − Requires a programmer to set up
- − ECU arrived damaged on one unit
- − Less versatile than an alternative combo for racing, per one reviewer
