Hobbywing XR10 Justock G3S Sensored Brushless ESC/SD G2.1 Motor Combo (13.5T)
About this part
Combo Overview:
The Hobbywing XR10 Justock G3SS Sensored Brushless ESC/SD G2.1 Motor Combo has been designed with fixed, 0°, timing for spec class racing. The included SD G2.1 motor is an ideal stock motor for both 1/10 and 1/12 on and off-road racing. These two components paired together make for an ideal choice for beginners and experts alike.
Note: This product photo may not fully depict the described item. For comprehensive details on the listed product, please refer to the specifications provided.
Features:
- ESC:
- Built-in polarity protection. The XR10 Justock has integrated MOSFET's that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system
- Programmable via OTA Wireless module or 3in1 program box
- Built-in capacitor module eliminates the need for external capacitors and unwanted space
- RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)
- Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing
- Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V
- Calibration or performing a factory-reset can be achieved by using this SET button. Simple and easy to use
- Supports both CCW (counterclockwise) and CW (clockwise) motor directions
- Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection
- ESC includes the Freewheeling setting allowing for lower ESC temps enhancing drivability through corners
- Built-in data logging for post-run reports

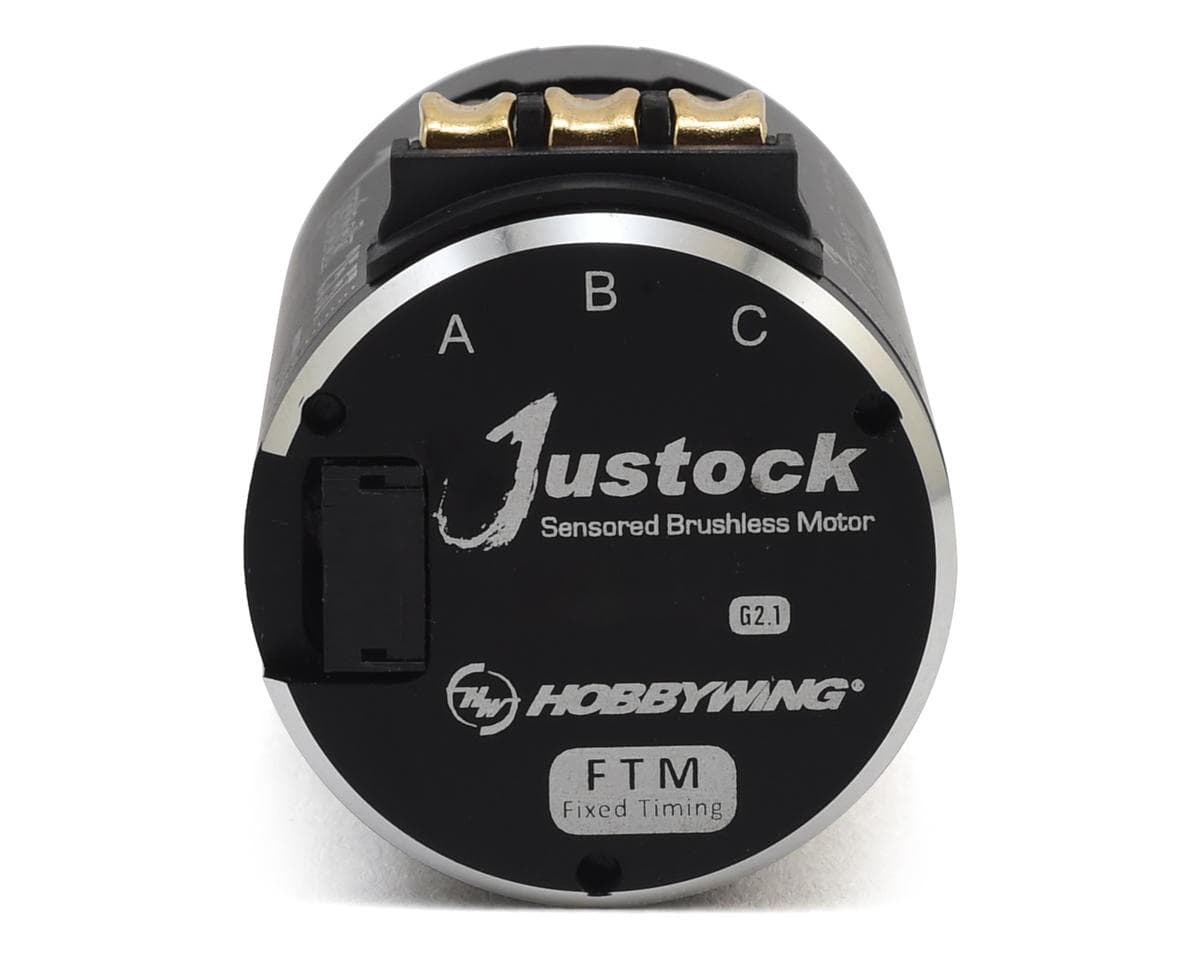

- Motor:
- Use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability
- Built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand
- Silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor
- Detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice
- The motor design is in compliance with IFMAR, and ROAR specifications
Specifications:
- ESC:
- Continuous Current: 60A
- Burst Current: 380A
- Battery: 2S Lipo (Only 2S)
- Built-in BEC: 6V/7.4V @ 4A(Switch-mode)
- ESC programming: Independent programming port
- Motor Supported: Sensor and sensorless brushless motor
- Motor Limit: 10.5T, or greater,3650 Motor
- Application: 1/10, 1/12 On-road and Off-road
- Cooling Fan: Powered by BEC
- Size: 40.9x33.9x32.1mm (LxWxH)
- Weight: 75.4g (Including weight of wire)
- ROAR Approval: Yes
- Motor:
- Scale: 1/10, 1/12
- Brushless: Yes
- Sensored: Yes
- Pole Count: 2
- KV Rating: 3200kV
- LiPo Cells: 2-3S
- No-Load Current(A): 4A
- Outer Diameter: 35.9mm (1.413")
- Length: 52.5mm (2.067")
- Shaft Diameter: 3.17mm (0.125")
- Weight: 175g (6.17oz)
- Timing: Fixed
Includes:
- (1) Justock G3SS ESC
- (1) Justock 13.5T G2.1 brushless motor
- (1) 5V cooling fan

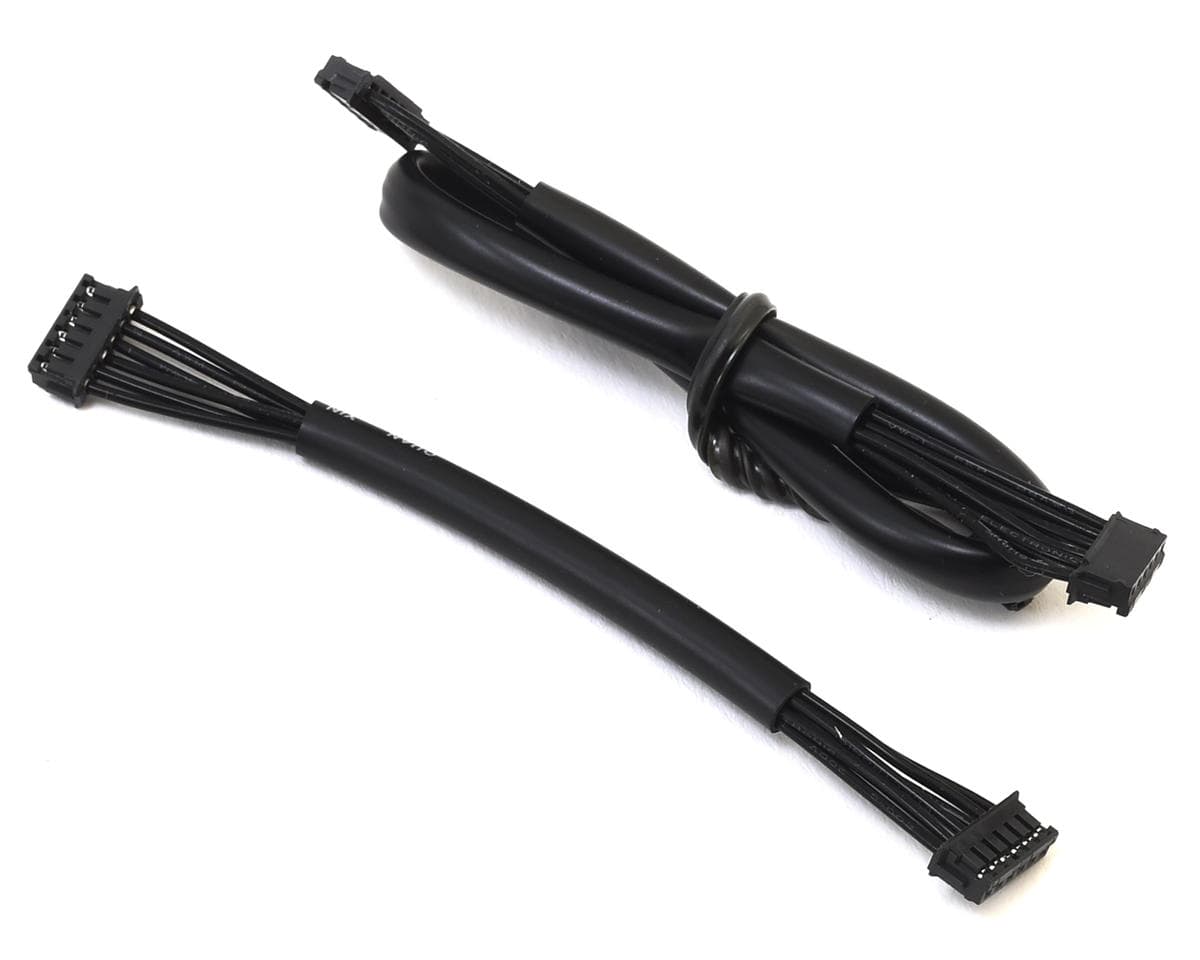

- (1) Sensor cable
Reviews4.7 · 18 reviews
really nice starter 13.5 system that i use in a sc late modle oval car that needed a blinky style esc. i now 8 battery packs through it and there are some setting i changed right off the bat and one of those was the fan settings. i hate that the fan didn't come on when you first turn the esc on and you need to change that in the settings. then the ramp is something we don't use on oval but it needed to be changed before it was driveable on the oval. if i didn't buy the multifunction lcd bluetooth program box pro i would more then likely hated it and give it less of a review because programing without a program box is 100% a pain.
Waited for the G3 to come out and happy I did. Not sure if i just got a good motor or if they made some changes but it seams to pull out of the corners a bit better
Really a good setup easy to program and with the right gearing it's relatively fast Im very pleased with it I you it for carpet off road racing
Shipping is pretty fast and no issues with anything i have orderd customer service is on point
awesome setup for 13.5 crate late model in rocket 5.1
Reviewers overwhelmingly rate this 13.5T sensored brushless ESC and motor combo highly, most giving five stars as verified owners. Common uses include oval late model, sprint, midget, crate and off-road racing, as well as entry-level and budget builds. Reviewers describe it as easy to adjust, fast and run cool, with good value for the price. Several note that programming is simpler with the optional program box, and one reviewer found reverse setup difficult. A single one-star review reports inconsistent performance between motors and says that buying several motors to find a good one raises the cost. Delivery and packaging are generally praised. Most reviews do not specify a unit-to-unit consistency issue, so this criticism rests on one review.
- + Easy to program and adjust
- + Good value for the price
- + Fast, torquey and runs cool
- + Suits entry-level and budget racing
- − Programming is hard without a program box
- − Reverse setup described as difficult
- − Reported inconsistent performance between motors (one review)
