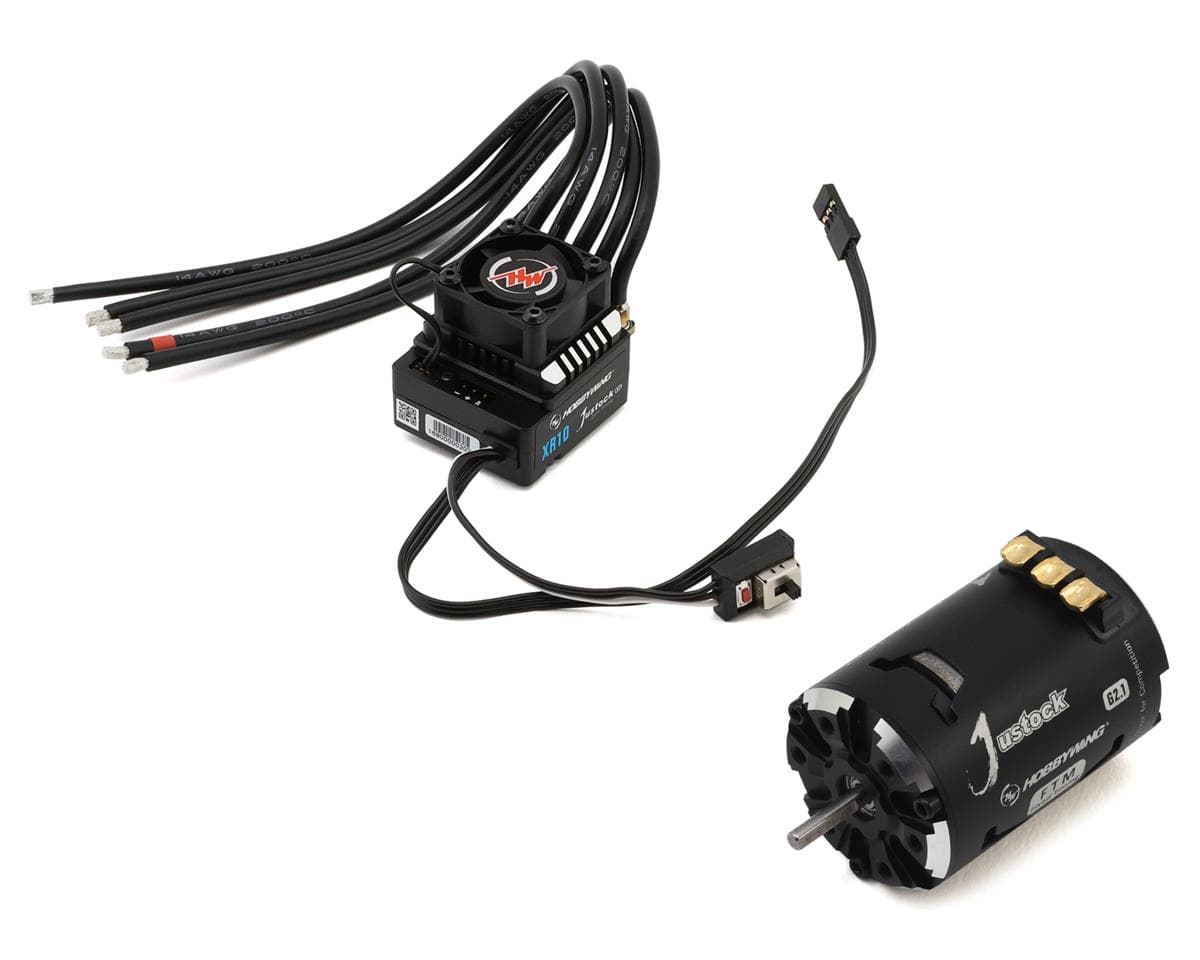

Hobbywing XR10 Justock G3S Sensored Brushless ESC/SD G2.1 Motor Combo (17.5T)
About this part
Combo Overview:
The Hobbywing XR10 Justock G3SS Sensored Brushless ESC/SD G2.1 Motor Combo has been designed with fixed, 0°, timing for spec class racing. The included SD G2.1 motor is an ideal stock motor for both 1/10 and 1/12 on and off-road racing. These two components paired together make for an ideal choice for beginners and experts alike.
Note: This product photo may not fully depict the described item. For comprehensive details on the listed product, please refer to the specifications provided.
Features:
- ESC:
- Built-in polarity protection. The XR10 Justock has integrated MOSFET's that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system
- Programmable via OTA Wireless module or 3in1 program box
- Built-in capacitor module eliminates the need for external capacitors and unwanted space
- RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)
- Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing
- Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V
- Calibration or performing a factory-reset can be achieved by using this SET button. Simple and easy to use
- Supports both CCW (counterclockwise) and CW (clockwise) motor directions
- Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection
- ESC includes the Freewheeling setting allowing for lower ESC temps enhancing drivability through corners
- Built-in data logging for post-run reports

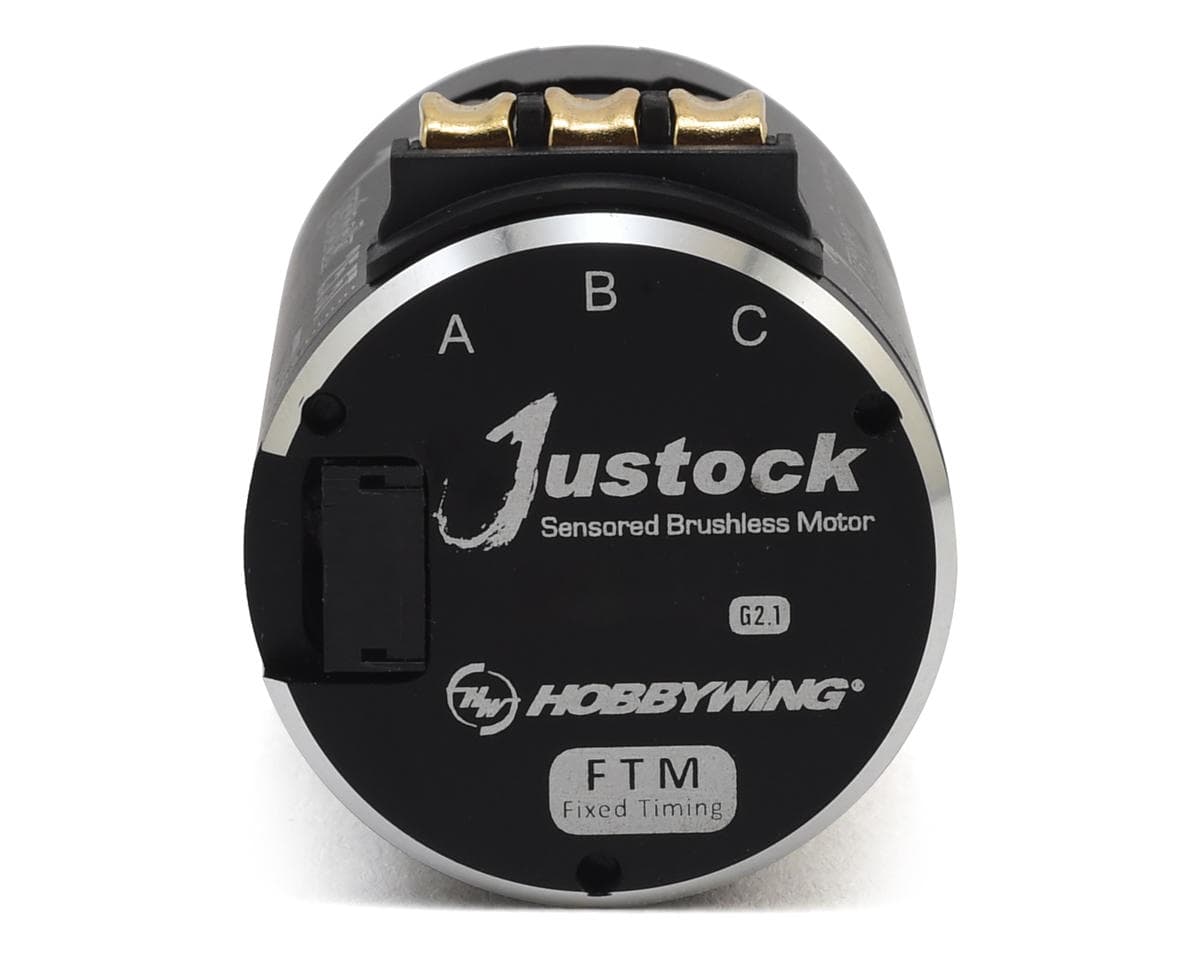

- Motor:
- Use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability
- Built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand
- Silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor
- Detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice
- The motor design is in compliance with IFMAR, and ROAR specifications
Specifications:
- ESC:
- Continuous Current: 60A
- Burst Current: 380A
- Battery: 2S Lipo (Only 2S)
- Built-in BEC: 6V/7.4V @ 4A(Switch-mode)
- ESC programming: Independent programming port
- Motor Supported: Sensor and sensorless brushless motor
- Motor Limit: 10.5T, or greater,3650 Motor
- Application: 1/10, 1/12 On-road and Off-road
- Cooling Fan: Powered by BEC
- Size: 40.9x33.9x32.1mm (LxWxH)
- Weight: 75.4g (Including weight of wire)
- ROAR Approval: Yes
- Motor:
- Scale: 1/10, 1/12
- Brushless: Yes
- Sensored: Yes
- Pole Count: 2
- KV Rating: 2050kV
- LiPo Cells: 2-3S
- No-Load Current(A): 3A
- Outer Diameter: 35.9mm (1.413")
- Length: 52.5mm (2.067")
- Shaft Diameter: 3.17mm (0.125")
- Weight: 176g (6.21oz)
- Timing: Fixed
Includes:
- (1) Justock G3SS ESC
- (1) Justock 17.5T G2.1 brushless motor
- (1) 5V cooling fan

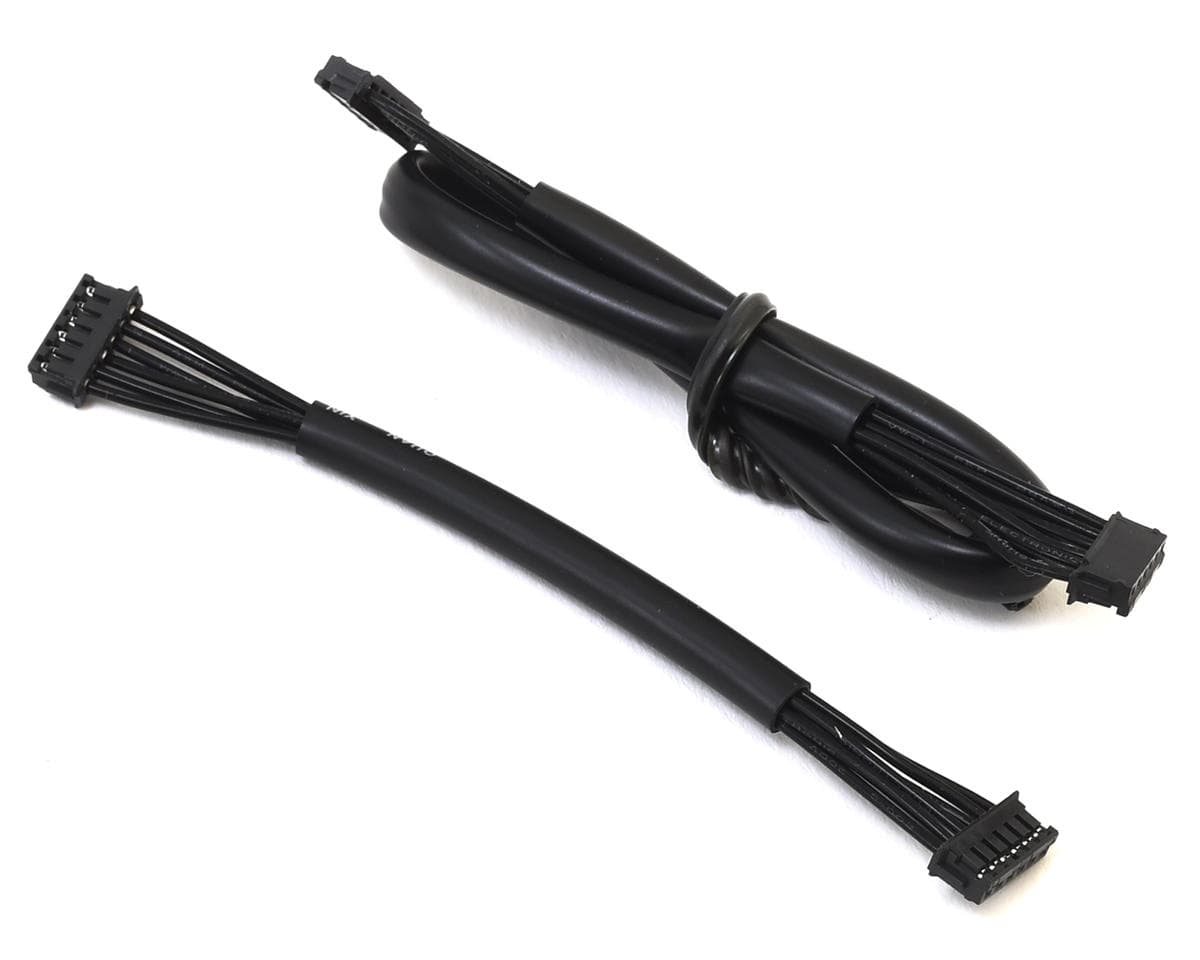

- (1) Sensor cable
Reviews4.7 · 7 reviews
Perfect combo for the entry level of electric RC racing. Running this setup in my FWD Schumacher FT9 for indoor and outdoor events—it’s dialed in. Easy enough for newcomers to handle, but with the performance and reliability that serious racers appreciate. Great balance, crisp response, and ready for track days..
Good it worked perfectly in my team associated b6.4
Great combo unit for Sprint and other models. Super smooth and very easy to setup
Item as described, very quite, nice settings and compact size ESC.
Purchased this system as a "cheap" replacement for my old electronics. I run on an outdoor, medium sized concrete track with some friends. Our track layouts range from medium speed with 180degree turns to more open layouts. First time running this combo I was disappointed. This sytem feels very soft with no punch at all. I knew that the justock sytstem is more budget oriented but you really do get what you pay for. The esc does have a few settings which can be accessed and changed using the hobbywing controller and the esc does include a small fan so that's nice. If you are just starting with RC and touring cars, then this sytem might be a good starting point. If you are a bit more seasoned, then I would recommend saving a bit more $$$ for a better combo.
Reviewers generally rate this 17.5T sensored brushless combo highly for ease of setup, smooth and quiet operation, and compact size, with several reporting it works well in touring, FWD and sprint-style cars. One reviewer had not yet run it beyond unboxing and noted pre-soldered ESC wires requiring the user to solder the motor and battery connectors. A dissenting reviewer found the system soft with little punch on a medium-sized concrete track with tight turns, describing it as budget-oriented and better suited to beginners than experienced racers. Reviews are few and mixed on performance, with the 3-star review the only critical account.
- + Easy setup
- + Smooth, quiet operation
- + Compact ESC size
- + Works in multiple chassis
- − Soft response, lacks punch on tight tracks
- − Requires soldering connectors
- − Positioned as budget option for beginners
