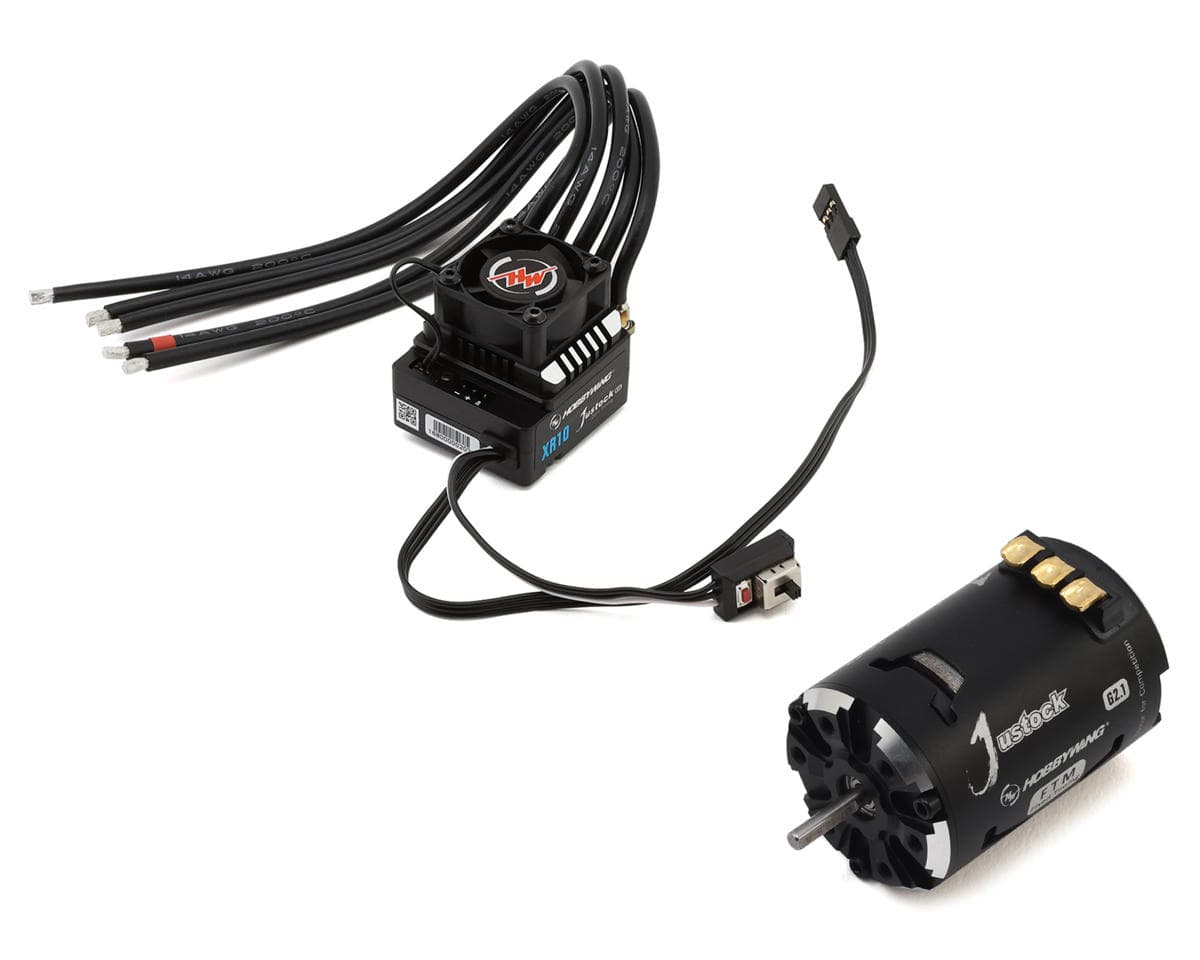

Hobbywing XR10 Justock G3S Sensored Brushless ESC/ SD G2.1 Motor Combo (21.5T)
About this part
Combo Overview:
The Hobbywing XR10 Justock G3SS Sensored Brushless ESC/SD G2.1 Motor Combo has been designed with fixed, 0°, timing for spec class racing. The included SD G2.1 motor is an ideal stock motor for both 1/10 and 1/12 on and off-road racing. These two components paired together make for an ideal choice for beginners and experts alike.
Note: This product photo may not fully depict the described item. For comprehensive details on the listed product, please refer to the specifications provided.
Features:
- ESC:
- Built-in polarity protection. The XR10 Justock has integrated MOSFET's that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system
- Programmable via OTA Wireless module or 3in1 program box
- Built-in capacitor module eliminates the need for external capacitors and unwanted space
- RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)
- Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing
- Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V
- Calibration or preforming a factory-reset can be achieved by using this SET button. Simple and easy to use
- Supports both CCW (counterclockwise) and CW (clockwise) motor directions
- Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection
- ESC includes the Free wheeling setting alowing for lower ESC temps enhancing drivability through corners
- Built in data logging for post run reports

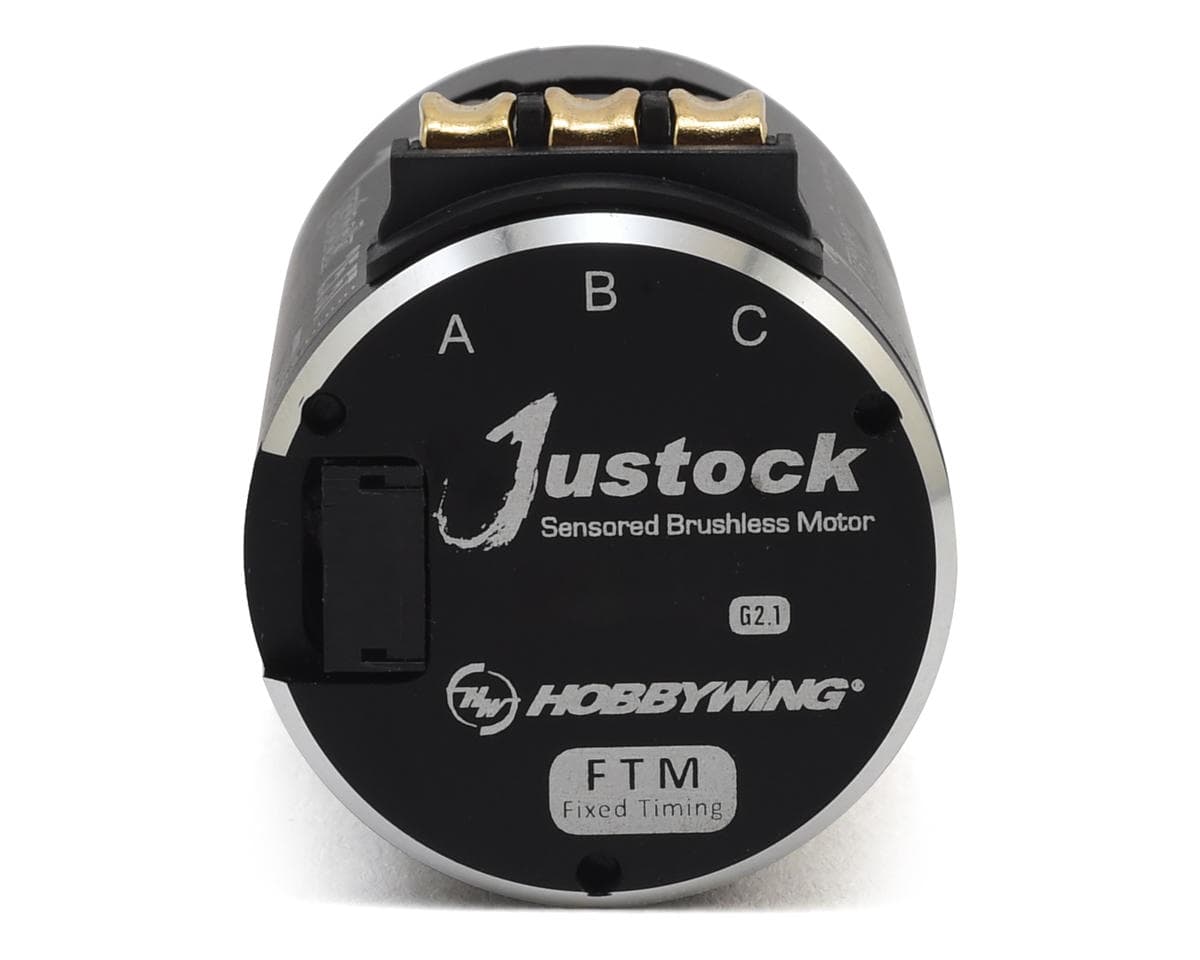

- Motor:
- Use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability
- Built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand
- Silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor
- Detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice
- The motor design is in compliance with IFMAR, and ROAR specifications
Specifications:
- ESC:
- Continuous Current: 60A
- Burst Current: 380A
- Battery: 2S Lipo (Only 2S)
- Built-in BEC: 6V/7.4V @ 4A(Switch-mode)
- ESC programming: Independent programming port
- Motor Supported: Sensor and sensorless brushless motor
- Motor Limit: 10.5T, or greater,3650 Motor
- Application: 1/10, 1/12 On-road and Off-road
- Cooling Fan: Powered by BEC
- Size: 40.9x33.9x32.1mm (LxWxH)
- Weight: 75.4g (Including weight of wire)
- ROAR Approval: Yes
- Motor:
- Scale: 1/10, 1/12
- Brushless: Yes
- Sensored: Yes
- Pole Count: 2
- KV Rating: 2050kV
- LiPo Cells: 2-3S
- No-Load Current(A): 3A
- Outer Diameter: 35.9mm (1.413")
- Length: 52.5mm (2.067")
- Shaft Diameter: 3.17mm (0.125")
- Weight: 175g (6.17oz)
- Timing: Fixed
Includes:
- (1) Justock G3SS ESC
- (1) Justock 21.5T G2.1 brushless motor
- (1) 5V cooling fan

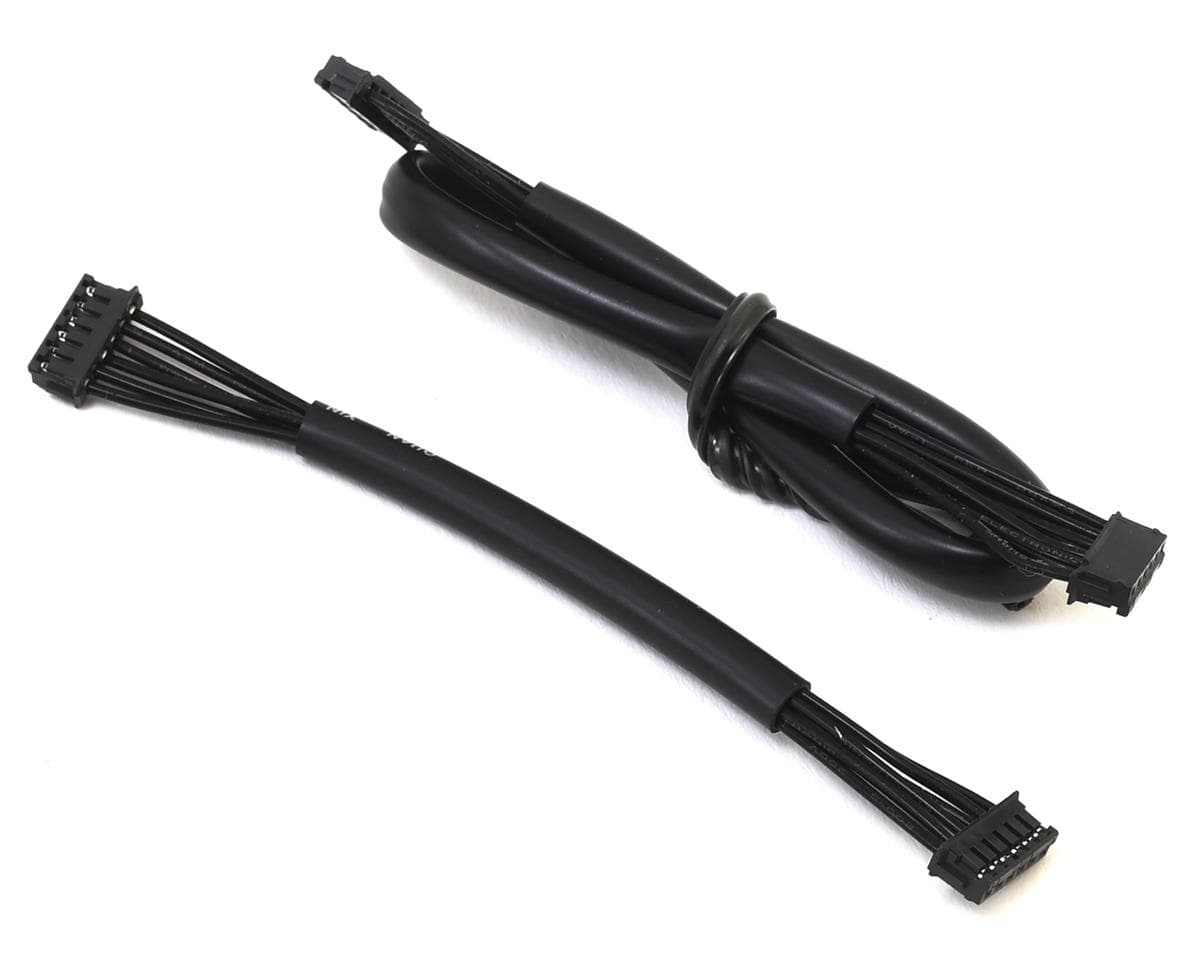

- (1) Sensor cable
Reviews4.0 · 4 reviews
Great G3S Sensored Brushless motor with ESC installed at my friends on road car .
(WARNING! TRIGGER EFFECT!) LOL first! the price is hard to beat! and for stock "Spec Racing" this is a Solid buy! if "NEVER RACED BEFORE"! super great for Beginners! and "ANYONE" just starting out! now? if getting for say? a "TAMIYA Porsche Spec Class" even with the "Max Allowed" Gearing! with a 64 tooth Tamiya Spur and 29 pinion, it is DEAD SLOW, but!! upside! it does have great Torque! and thats what it is made for, but? if say wanting to have some fun just going fast? buy the 13 or 10 turn, the "Stock" Brushed Motor included with the Kit is Faster!, and get Bearings! "Speed Gear set" HIGHLY RECOMMEND, it gives it some "PEP"!! : ) it is FUN! and Hard to beat! but if deciding to race? and in Spec Classes? it is "VERY SLOW"! the Stock motor "IS FASTER" and if put in a Old School Brushed Motor Old Trinity Motors come to mind! (with its "Stock ESC) it is BALISTIC!! feels like Old school 17 Quad! or the 20t Outlaw motors! however, in "Spec Classes" the stock system is "NOT ALLOWED" in some classes! and the ESC can "ONLY RUN in BLINKY mode, and the hobbywing "Just Stock 21.5T Motor" is pretty slow. but? if a racer that is used to slight higher speeds? this will feel "Very Slow" the upside, it is "Designed this way" as a Beginner type motor combo (with the 21.5 combo) and relies on skill set of driver for setting up car etc. still is Great! and FUN! but very Slow!!, something to consider? if like some more "Pep" in a Motor/ESC combo, but!! you can get 64 pitch Spurs and Pinions to the 3.8 range "Without Cutting or Modifying the chassis! and the motor PICKS UP! as it is recommended a 3:5 to 1 or a 3:0 to 1 ratio !! and its a Bullet!! and!! feels like the Old School "Outlaw 21 and 20 turn Brushed motors!" and barley begins to get warm, but! this is not "Legal" for most "Spec Classes" this will vary! from club to club! and hop ups allowed etc. so if starting out, this is one heck of a deal!! but if looking for something little faster! might consider the 13 or 10t combo, but! can not race say the TT02 Spec classes with anything other than the 21.5 motor. just something to "Consider" when running this Combo, now? for Touring cars! it is real EASY to get to that Ratio! because of the wide range of Spurs and Pinions! but in the TCS races!! your MAXIMUM! gearing and have to Use the "Tamiya Gears"!! is a 64 tooth Spur! and a 29 pinion! and it is Really Slow! but still Pretty fun!!!
The system seems nice on paper and that is where it ends. First of all the ESC is defective right out of the box. The fan runs none stop and Hobby HW link does not offer fan control as advertised on screwtube. Hobbywing yech support was less then helpful actually the rep was condescending so this leaves me no option then open a return request where I have a feeling I will get a run around. I did initialize RMS via Hobbywing, howerever other then a confirmation email I did not hear from anyone! Kind of frustrating because I had brushed set up ready to go in and switch it up for the latest greatest Brushless!!
Great price to enter a spec 2wd buggy class. Blacked out wires, no external capacitors for a small footprint and clean look. Overall a great combo.
Four reviews of the Hobbywing XR10 Justock G3S sensored brushless combo, all for the 21.5T variant. Reviewers agree the price is low, which makes it attractive for entry-level spec 2WD buggy racing. Two reviewers praise the clean, blacked-out wiring and the compact setup without external capacitors, and one reports good performance in a friend's road car. The reviews diverge on performance: one describes the combo as slow with the stated gearing but strong on torque, and suggests upgrades for speed. One reviewer reports a defective ESC out of the box with a fan that runs constantly, a fan-control feature not working in the Hobbywing link app, and unhelpful support, with a return pending. Sample size is small.
- + Low price for entry-level spec racing
- + Clean wiring and compact footprint
- + Strong low-end torque
- − Slow with max-allowed gearing
- − Reported defective ESC with constant fan noise
- − Fan control missing in companion app
- − Unhelpful customer support experience
