Hobbywing XRotor F7 Convertible Flight Controller

Micro Size with Huge Features!

The XRotor F7 Convertible Flight Controller from Hobbywing is a high-performance flight control solution designed for modern FPV drones and racing platforms. Built around powerful hardware and advanced connectivity options, this controller delivers fast processing speeds and precise flight control. Its flexible design allows compatibility with a wide range of FPV firmware and components, making it a versatile choice for both racing and freestyle builds.

About the XRotor F7

High-Speed F7 Processing Power

At the heart of the XRotor F7 Convertible Flight Controller is the STM32F722 MCU, delivering powerful computing capability and fast response times required for modern FPV flight. Paired with a highly sensitive MPU6500 six-axis motion sensor, the controller provides accurate stabilization and responsive flight characteristics. The controller fully supports bidirectional DShot digital throttle communication, improving ESC communication and telemetry accuracy. An integrated OSD chip allows pilots to configure and adjust on-screen display settings directly through compatible software or their transmitter for convenient in-flight monitoring.

Designed For Digital FPV Systems

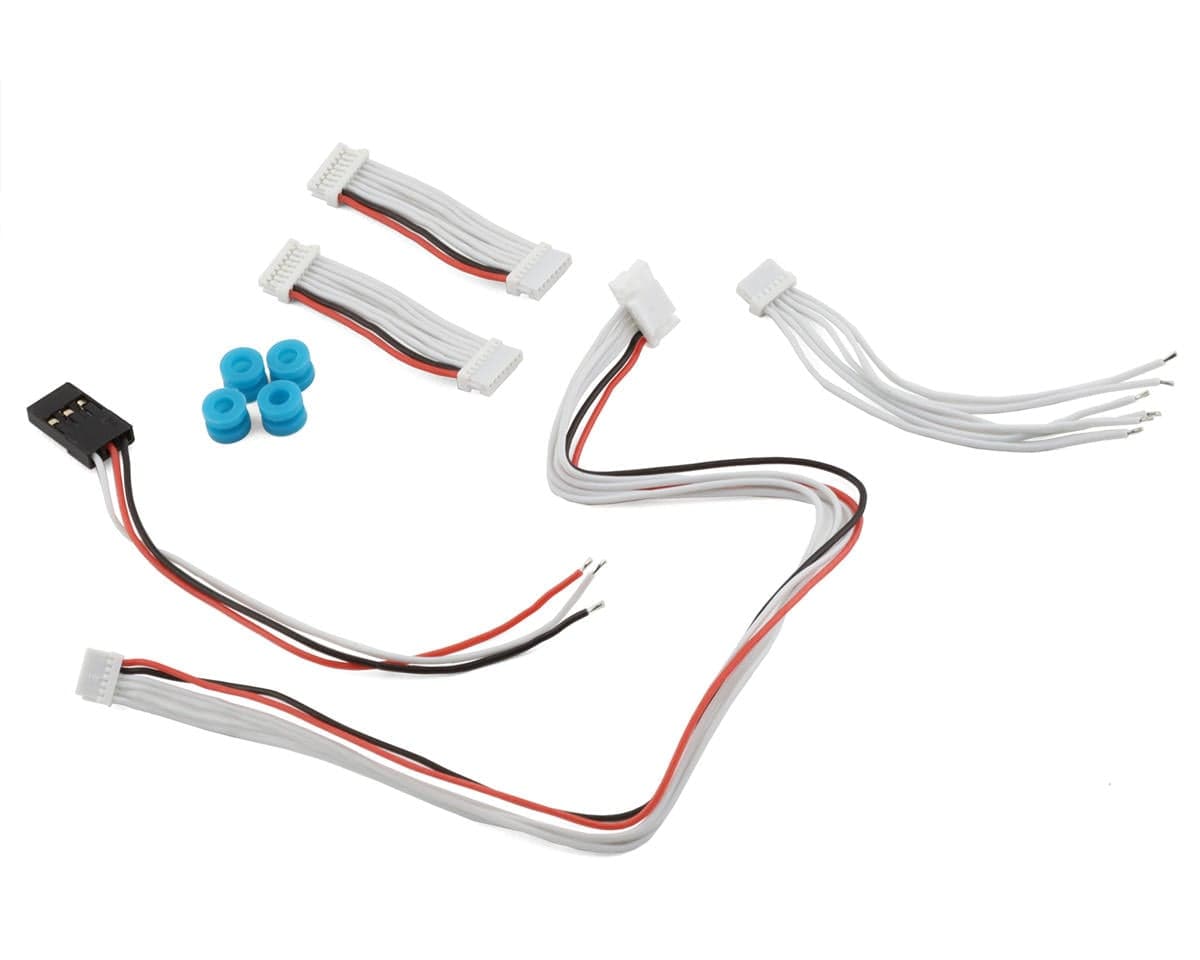

The XRotor F7 includes a dedicated interface for the DJI digital image transmission system, enabling quick and clean installation using the included flat cable connection. This plug-and-play design eliminates the need for complicated soldering when installing compatible DJI components. Integrated Pit Switch functionality allows pilots to remotely enable or disable the VTX through radio configuration for improved convenience during races. With onboard 5V and 10V dual BEC circuits, the controller can reliably power cameras, video transmitters, LEDs, and other onboard electronics.

Flexible Installation And Advanced Features

Designed for compatibility with a wide range of frames, the XRotor F7 features dual mounting hole patterns supporting both 30×30mm and 20×20mm frame configurations. A unique shock absorption structure and flexible cable connection help reduce vibration transferred to sensitive sensors, improving flight stability and accuracy. The onboard flash memory allows flight data logging, making it easier for pilots to review performance and fine-tune their setup. Additional connectivity options such as voltage and current monitoring ports, buzzer output, and a Micro USB port provide the tools needed for setup, diagnostics, and firmware updates.

Features:

• STM32F722 High-Performance Flight Controller Processor
• MPU6500 Six-Axis Motion Sensor
• Bidirectional DShot Digital Throttle Support
• Integrated OSD Chip For On-Screen Flight Data
• Dedicated Interface For DJI Digital Image Transmission System
• Onboard 5V And 10V Dual BEC Power Circuits
• Integrated Pit Switch Module For VTX Control
• Dual Mounting Patterns (30×30mm And 20×20mm)
• Large Capacity Flash Memory For Flight Data Logging
• Micro USB Port For Firmware Updates And Configuration
