Holmes Hobbies BLS HV2000 1/5 Scale High Torque Servo (High Voltage)
About this part
Holmes Hobbies BLS HV2000 1/5 Scale High Torque Servo. Designed to handle the extreme conditions of 1/5 scale RC crawlers this high torque brushless servo boasts an incredible 2153 oz/in of torque! This servo is also at home in any large scale vehicle that needs extreme durability, high torque, and ultra fast speeds. With the ability to be powered from 5.0-8.4v the BLS HV2000 works in most applications with ease. Give yourself the ultimate driving experience with the powerful HV2000 1/5 Scale High Torque servo.
Features:
- Includes aluminum clamping servo horn with m4 threaded holes
- Water resistant Alloy Case with O-Ring Seals
- Waterproofed internals
- All steel machined gears
- High performance Brushless motor
- 28cm radio signal lead
- 2s LiPo battery compatible, 5.0 volt to 8.4 volt range
- 1 Year Warranty
Specifications:
- Dimensions: 65x30x57mm
- Weight: 291g
- Spline: 15 Tooth
- Torque:
- @6.0V: 1598 oz/in (115kg/cm)
- @8.4V: 2153 oz/in (155kg/cm)
- Speed:
- @6.0V: 0.19 sec
- @8.4V: 0.13 sec
Includes:

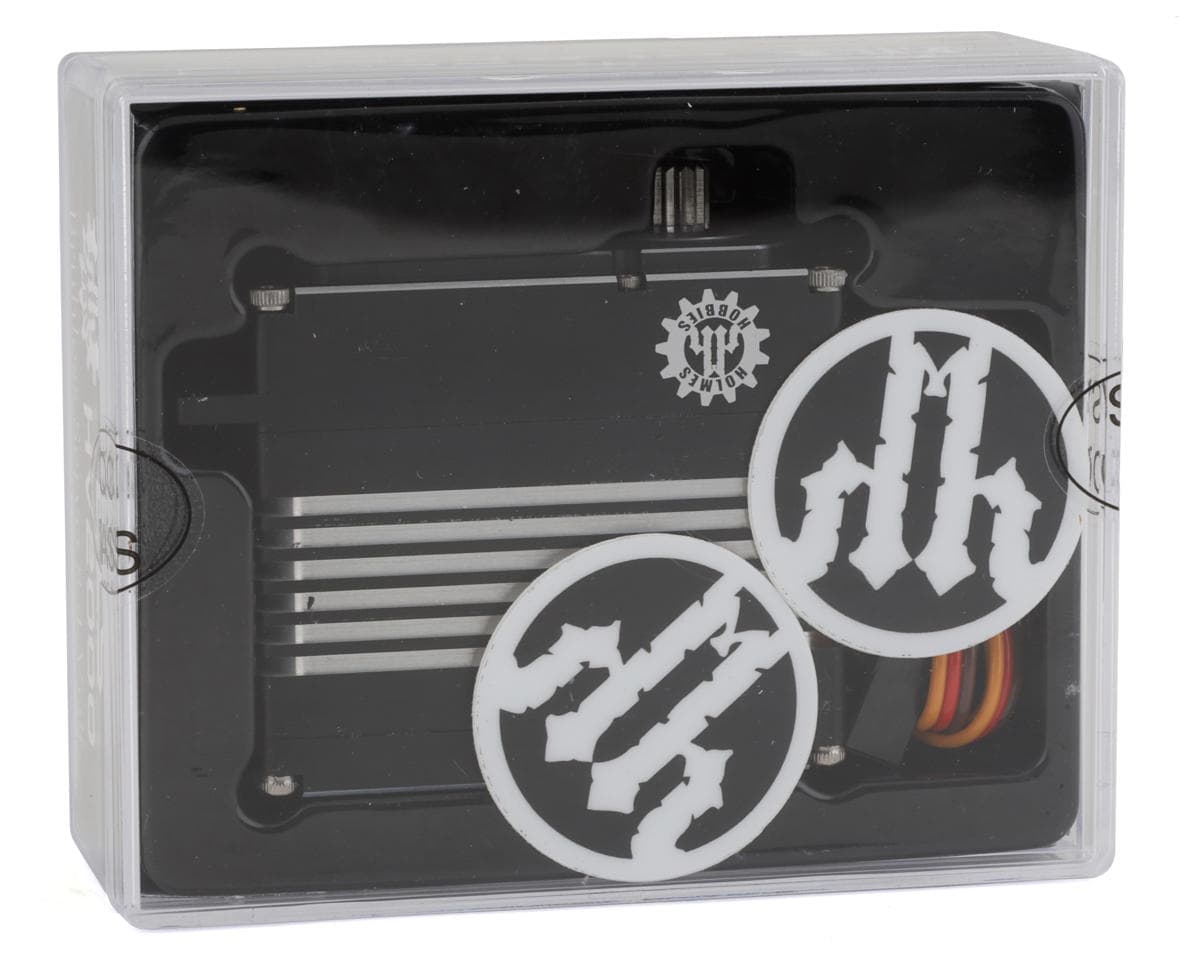

- (1) BLS HV2000 1/5 Scale High Torque Servo (High Voltage)

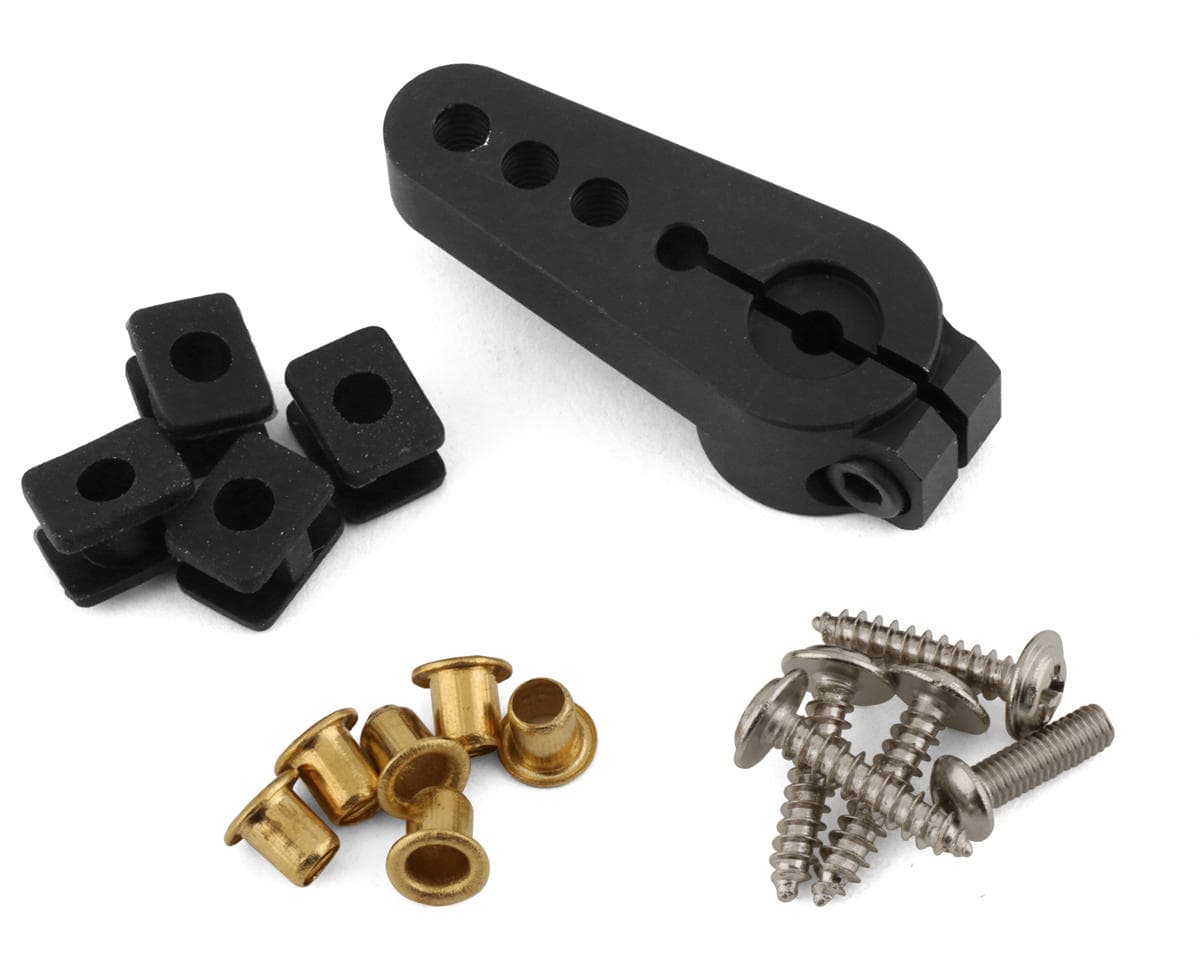

- (1) Aluminum Clamping Servo Horn
- Mounting Hardware
- Decals
Reviews5.0 · 4 reviews
In stock, fast free shipping over $100 is hard to beat. The BLS HV2000 is a direct fit into the SCX6 and comes with a new (same length) servo horn. The power of this servo is actually a bit scary and I recommend upgrading your c-hubs to aluminum parts as well as front shock towers. This gives a solid mount for the panhard bar. Never thought I would ever spend $249 on a servo, but it's worth every penny.
Have this in my scx6 with metal servo esc tray, upgraded steering parts as well… this thing is a beast!!! Old school BEC hook up but no battery voltage sag… consistent steering power at all times leaving nothing to want for… running at 7.5v and loving the trail and crawl ability of the rig!
If you want the BEST BUY THE BLS HV2000 1/5 SCALE HIGH TORQUE SERVO......... I got 2 what a difference it made.BUY THE BEST BLS...................HV2000
I have installed this monster servo in my Kraton EXB 8S and sending 8+ volts to it via my Castle XLX2 BEC to Radiolink RC6GS/R7 receiver. The Kraton steers so well this servo is able to easily move the steering assembly and tires. I'm glad to have this servo!! The huge RC needs this one!
All four reviewers are verified owners who rate the Holmes Hobbies BLS HV2000 1/5 Scale High Torque Servo 5 out of 5. Reviewers describe strong steering power, with two using it in an SCX6 and one in a Kraton EXB 8S. One reviewer reports no battery voltage sag and consistent steering at 7.5V, and another runs it on 8+ volts. The SCX6 owner notes it is a direct fit with a same-length servo horn and recommends upgrading C-hubs and front shock towers because of its power. Reviews are short and enthusiastic, with little detail on durability, precision or long-term use.
- + Strong steering torque
- + Direct fit in SCX6 with same-length horn
- + No voltage sag reported at 7.5V
- + Consistent steering power
- − Power may require upgraded C-hubs and shock towers
- − High price noted by one reviewer
