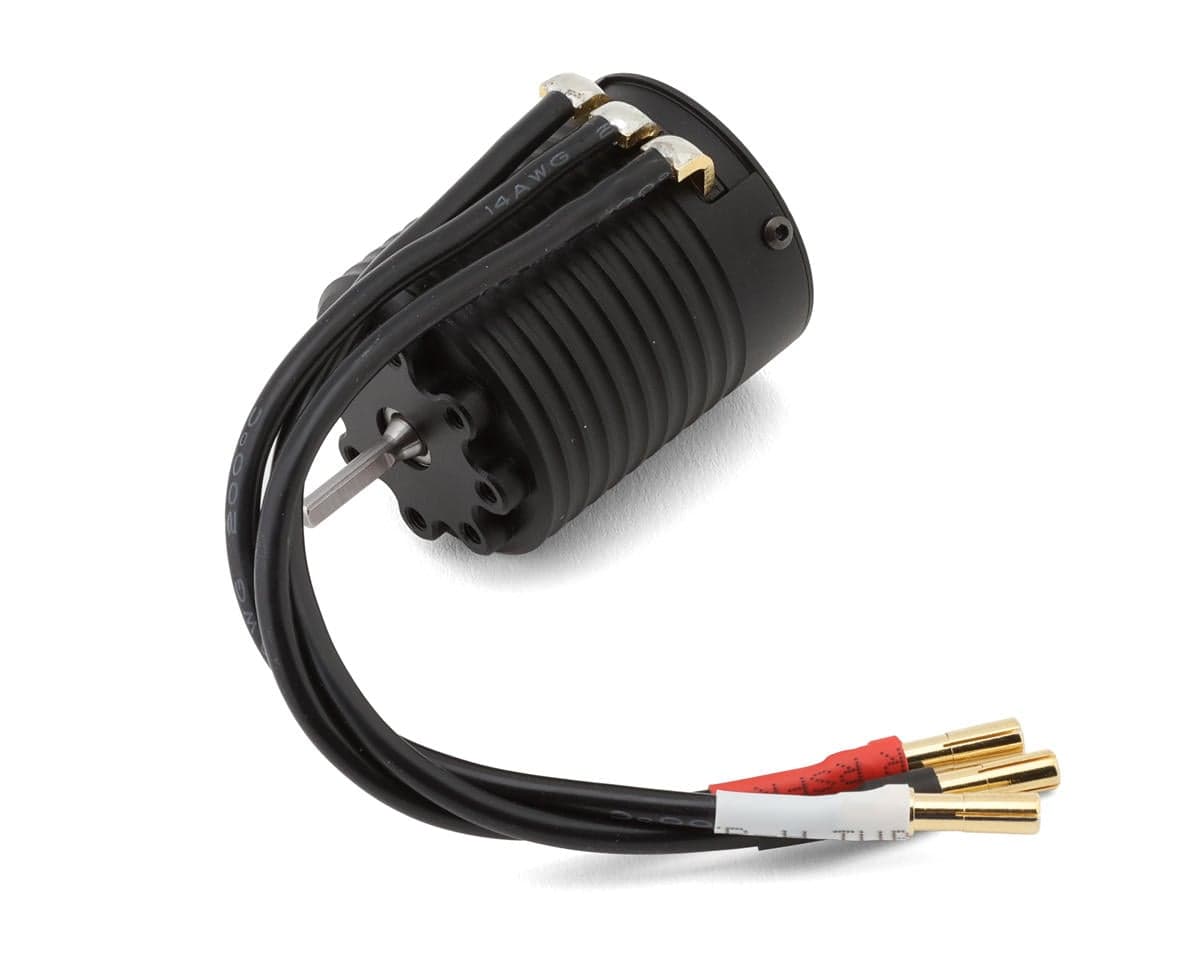

Holmes Hobbies CrawlMaster BL 540 Stubby Brushless Sensorless Crawler Motor (1800kV)
Part # HHB120100095
Where to buy
$45.00
Prices are as last seen at the store; stock is not tracked.
About this part
Motor Overview:
This is the CrawlMaster BL 540 10-Pole Stubby Sensorless Crawler Motor from Holmes Hobbies. Designed for rock crawling, this motor delivers smooth startups and precise low-end control in a compact, lightweight design. Its sensorless inrunner style combines reliability with competition-grade performance, making it a great choice for demanding drivers.
Features:
- Ten-pole Kevlar-wrapped rotor for durability and efficiency
- Twelve-slot stator with high-temperature resin-impregnated coils
- Sealed can design for protection in messy environments
- Eight-way mounting for versatile installation
- Oversized ABEC-7 bearings to prevent premature failure
Specifications:
- Suggested Application: 1/10 Crawler
- Size: 540 - 1800kV
- Type: Brushless Inrunner
- Voltage: 2-4S LiPo
- Adjustable Timing: -
- Watts: -
- Connector: Bullet
- Dimensions: 1.42x1.77in (36x45mm)
- Shaft Diameter: 1/8in (3.175mm)
- Weight: 5.26oz (149g)
Includes:
- (1) CrawlMaster BL 540 10-Pole Stubby Sensorless Crawler Motor

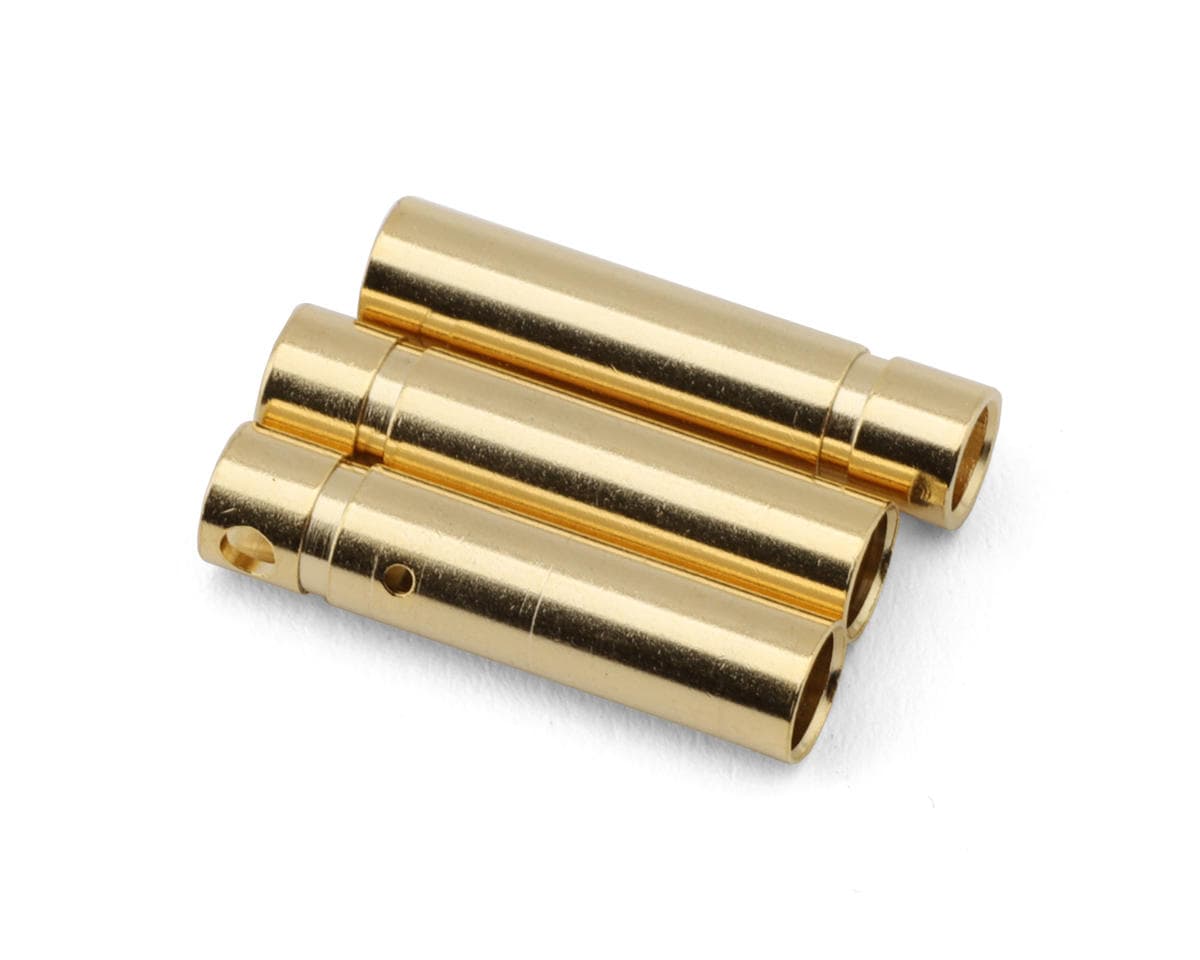

- (3) Female Bullet Connectors
