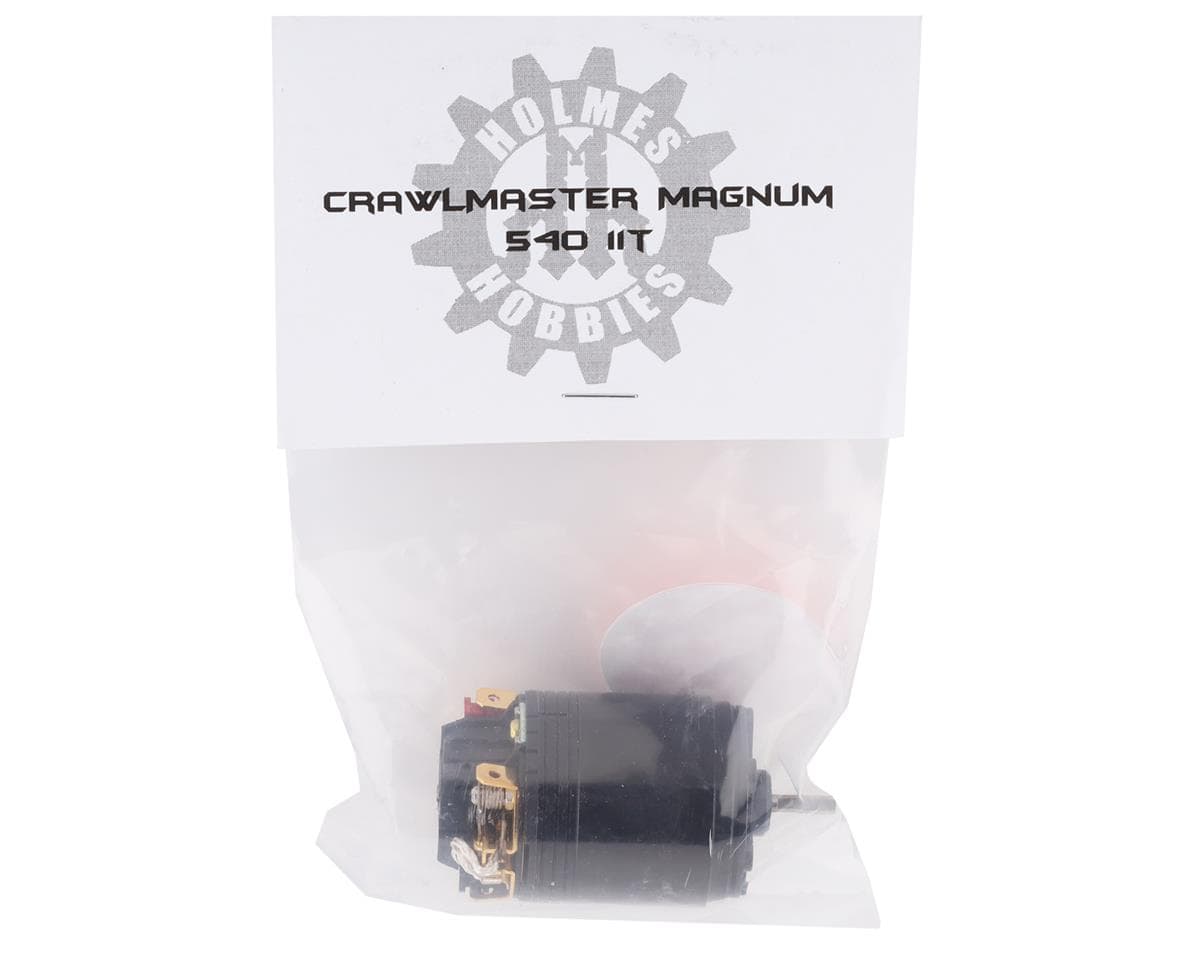

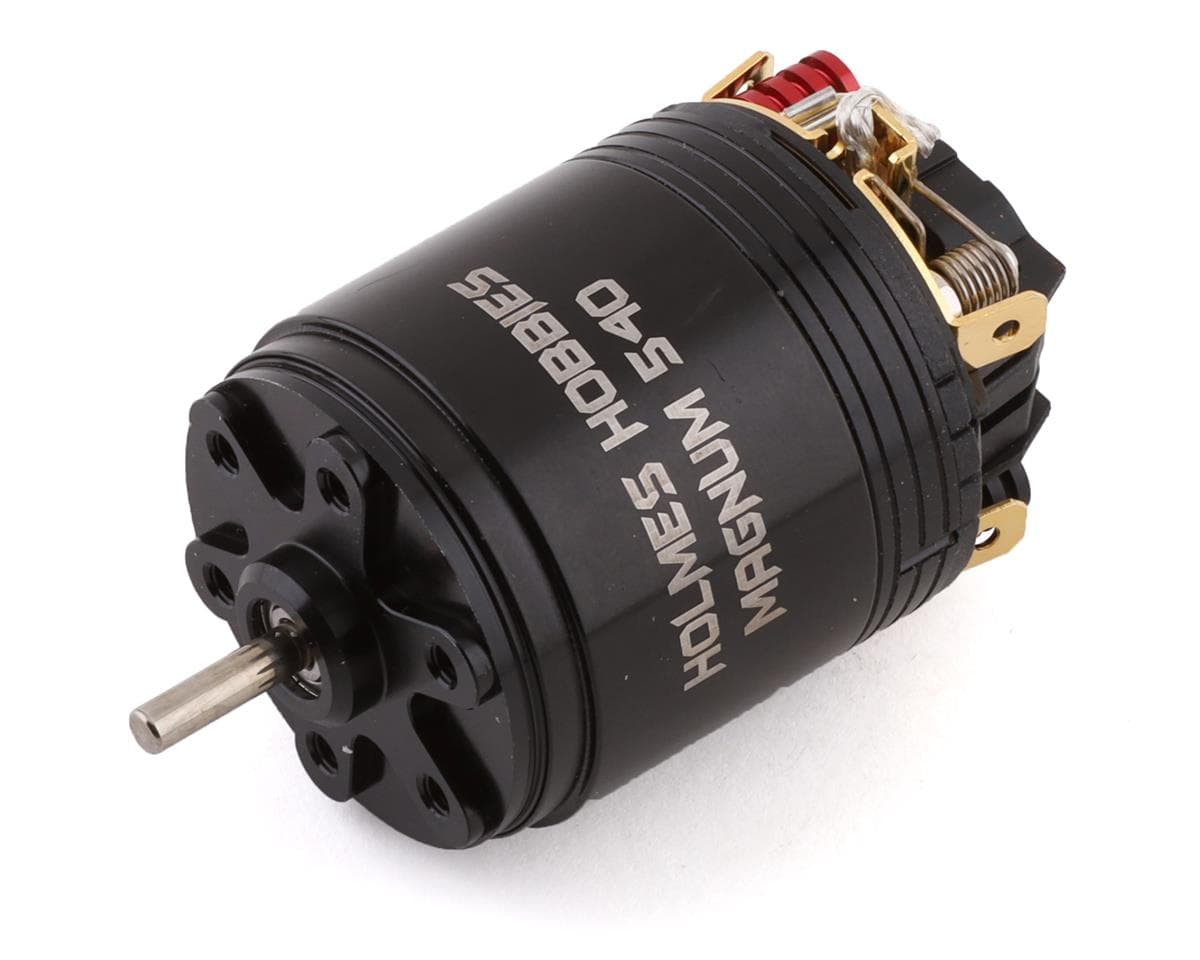

Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor (11T)
Part # HHB1101000821.0(1)
Where to buy
$174.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor is a high torque, 11 Turn option that offers the smoothest startup of any Holmes motor, with faster wheel speed than a TorqueMaster Pro 540 27t.
The Magnum is a performance oriented brushed motor designed with a larger rotor diameter and more powerful Neodymium magnets when compared to the regular TorqueMaster and CrawlMaster Pro 540. This motor is fully rebuildable and compatible with many Holmes 540 motor end bell parts.
Specifications:
Magnets: 200c rated Neodymium
Armature: 5 slot 28mm diameter
Springs: Holmes XXX
Brushes: Holmes soft copper
Weight: 6.2 ounces, 175g
Mount: Standard 540
Size: 36mm diameter, 52.5mm length
Shaft: 1/8"
RPM: 24,000rpm @ 12v
Amp: 2.3A no load @ 5v
The Magnum is a performance oriented brushed motor designed with a larger rotor diameter and more powerful Neodymium magnets when compared to the regular TorqueMaster and CrawlMaster Pro 540. This motor is fully rebuildable and compatible with many Holmes 540 motor end bell parts.
Specifications:
Magnets: 200c rated Neodymium
Armature: 5 slot 28mm diameter
Springs: Holmes XXX
Brushes: Holmes soft copper
Weight: 6.2 ounces, 175g
Mount: Standard 540
Size: 36mm diameter, 52.5mm length
Shaft: 1/8"
RPM: 24,000rpm @ 12v
Amp: 2.3A no load @ 5v
Reviews1.0 · 1 review
Shannon VanceVerified owneron Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor (11T)
Only about 30-45 minutes of run time so it took a while to notice that the motor shaft is off of its axis just enough to ruin pinion gears. When trying to adjust, it is to tight for 1/2 a turn and to loose on the other 1/2 of the rotation. I had to go back to the stock motor. It has a 1 year warranty from Holmes but I've been told their service department is unbelievably slow. I bought it through A-main so I don't know what to do. It should be perfect for what I paid for it. Extremely disappointed with the purchase. For the price, I should have just went with a brushless set-up. Guess I'm just out $150.
