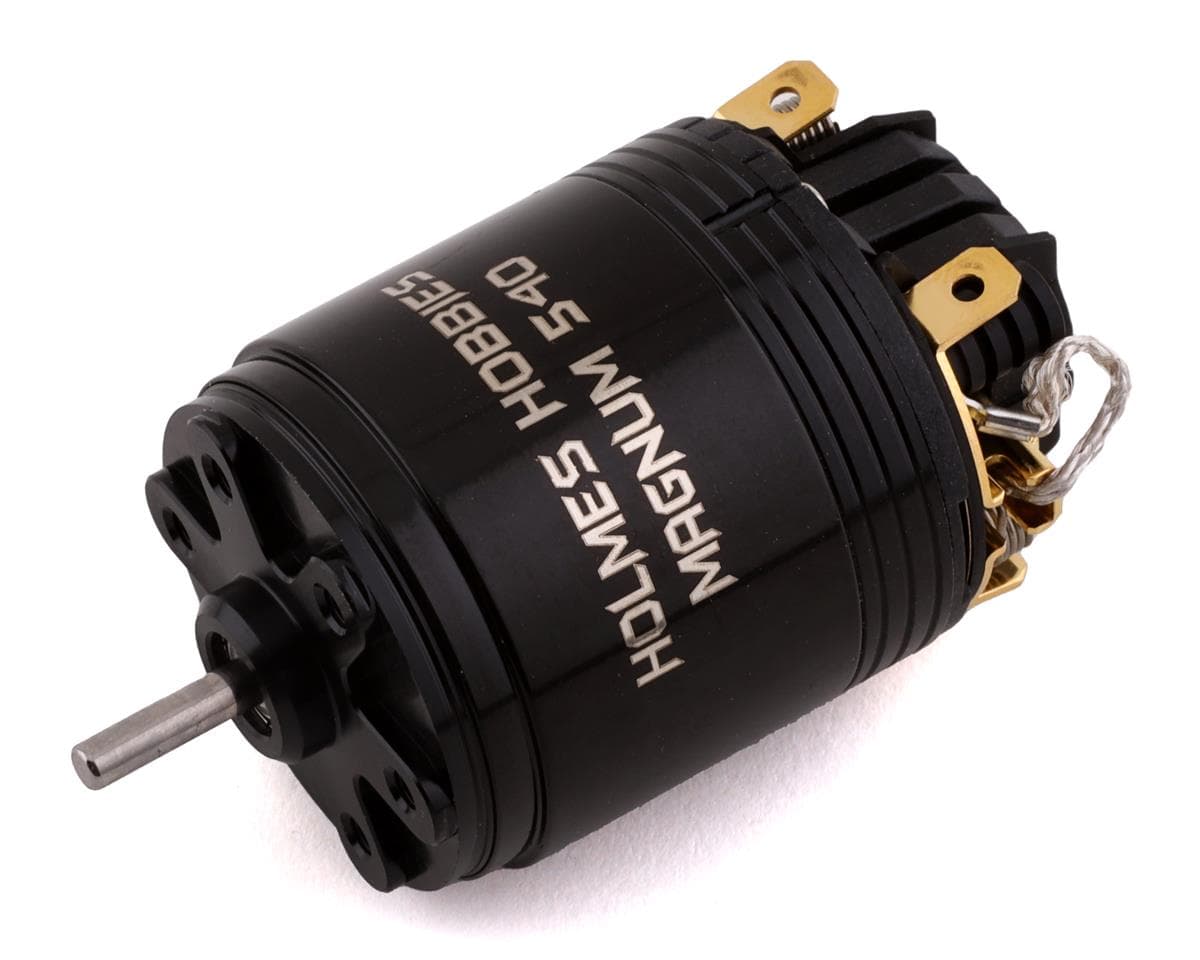

Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor (13T) (Limited Edition)
Part # HHB1101000835.0(1)
Where to buy
$174.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor is a limited run motor using powerful Neodymium magnets. These motors were born out of a prototype design and use a larger diameter rotor when compared to the standard CrawlMaster motor. The precision placed into this motor allows for extreme torque and the smoothest of startups.
Features:
- 200c rated Neodymium Magnets
- 5 slot 28mm diameter armature
- Holmes XXX springs

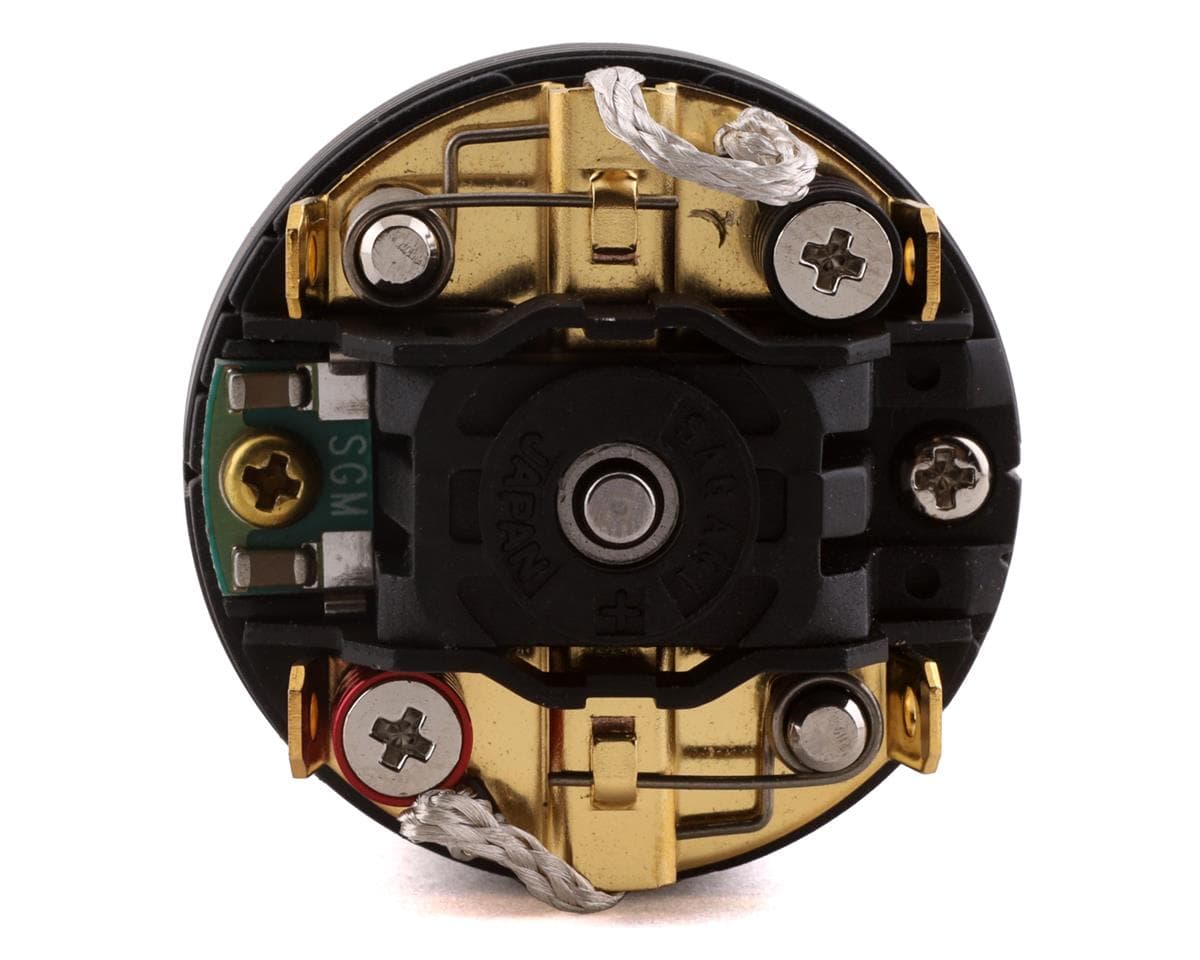

- Holmes soft copper brushes
- fully rebuildable and compatible with many Holmes 540 motor endbell parts
- Uses standard 540 mount
Specifications:
Turn: 13T
Diameter: 36mm
Length: 52.5mm
Shaft Diameter: 1/8"
RPM: 20,600rpm @ 12v
Current: 1.8 amp no load @ 5v
Weight: 6.2oz (175g)
Includes:
Includes:
- (1) CrawlMaster Magnum 540 Brushed Electric Motor
Reviews5.0 · 1 review
Benjamin Scotton Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor (13T)
She’s a good motor? Bloody oath she is. Smooth as silk, all the torque you could ask for, and the build quality is second to none. Expensive, but you absolutely get what you pay for.
