Parts/Electric power/Brushed motors/Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor (20T) (Limited Edition)
Holmes Hobbies

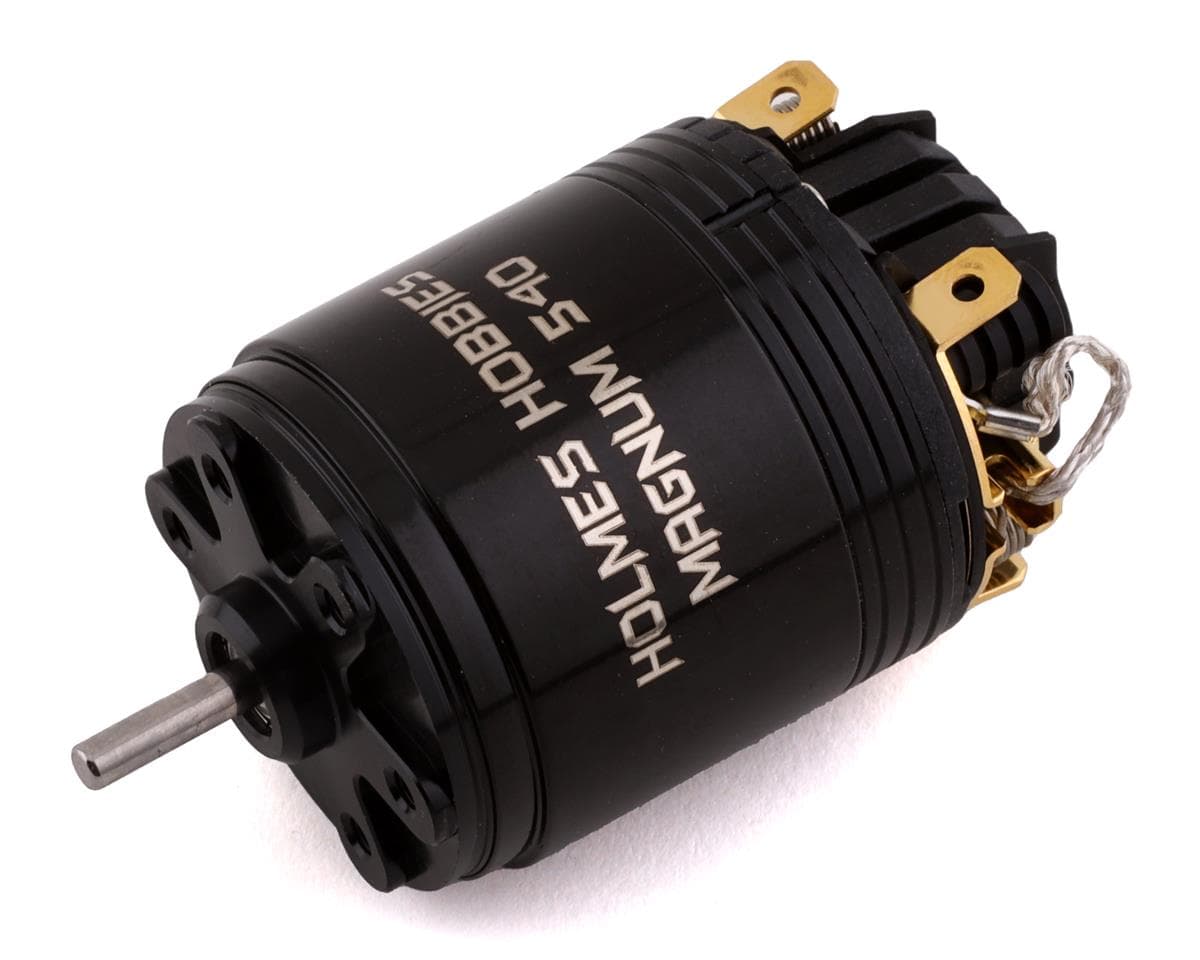

Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor (20T) (Limited Edition)
Part # HHB1101000965.0(1)
Where to buy
$174.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor is a limited run motor using powerful Neodymium magnets. These motors were born out of a prototype design and use a larger diameter rotor when compared to the standard CrawlMaster motor. The precision placed into this motor allows for extreme torque and the smoothest of startups.
Features:
- 200c rated Neodymium Magnets
- 5 slot 28mm diameter armature
- Holmes XX springs
- Holmes soft copper brushes
- fully rebuildable and compatible with many Holmes 540 motor endbell parts
- Uses standard 540 mount
Specifications:
Turn: 20T
Diameter: 36mm
Length: 52.5mm
Shaft Diameter: 1/8"
Weight: 6.2oz (175g)
Includes:
Includes:
- (1) CrawlMaster Magnum 540 Brushed Electric Motor
Reviews5.0 · 1 review
John Scheinbergon Holmes Hobbies CrawlMaster Magnum 540 Brushed Electric Motor (20T)
There just isn't a better crawling motor. It's just bonkers smooth. After running a lot of motors in brushed/brushless/outrunner setups; this one is king. The stubby version for lighter weight. Running on castle or holmes esc with "holmes hold" enabled is essentially a locked drag brake; much stronger than other motors. Also the craftsmanship is on another level. John Holmes for the win.
1 found this helpful
