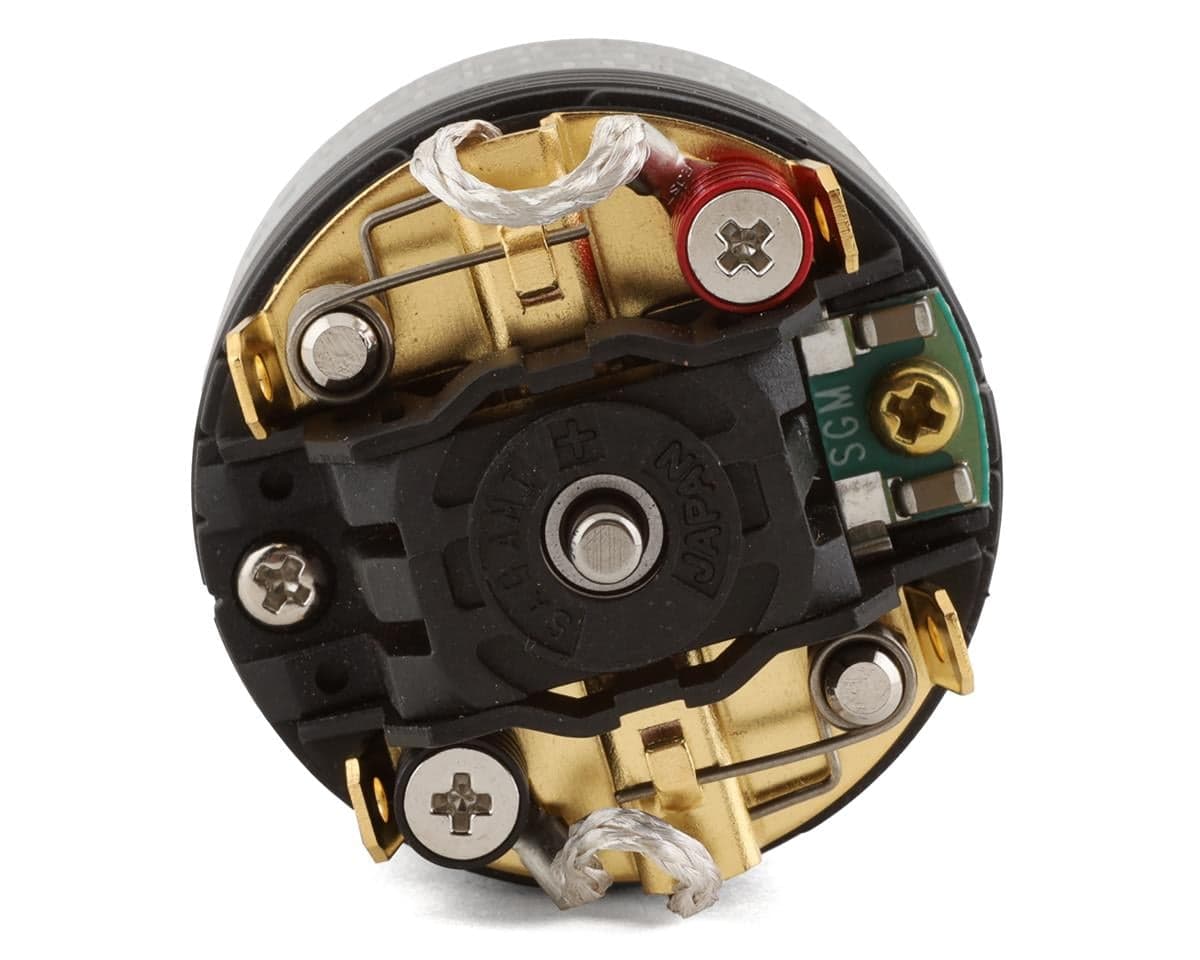

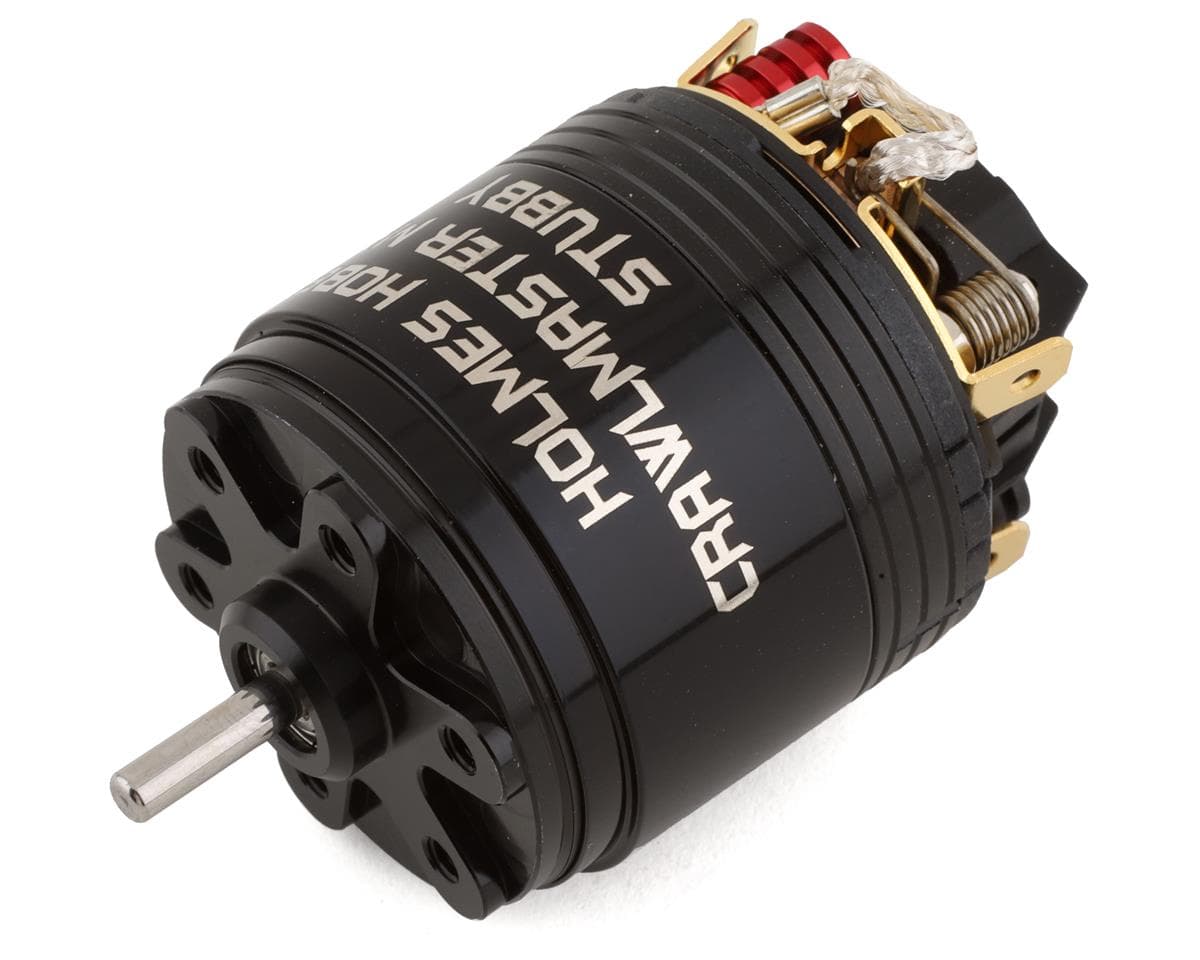

Holmes Hobbies CrawlMaster Magnum Stubby Brushed Electric Motor (16T)

The Holmes Hobbies CrawlMaster Magnum Stubby Brushed Electric Motor is a limited run motor using powerful Neodymium magnets. These motors were born out of a prototype design and use a larger diameter rotor when compared to the standard CrawlMaster motor. The precision placed into this motor allows for extreme torque and the smoothest of startups. This Stubby version is smaller and lighter for those wanting top performance in a small package.

Features:

• 200c rated Neodymium Magnets
• 5 slot 28mm diameter armature
• Holmes XXX springs
• Holmes soft copper brushes
• Fully rebuildable and compatible with many Holmes 540 motor endbell parts
• Uses standard 540 mount

Specifications:

Turn: 16T

Diameter: 36mm

Length: 46.4mm

Shaft Diameter: 1/8"

Weight: 4.79oz (136g)

Includes:

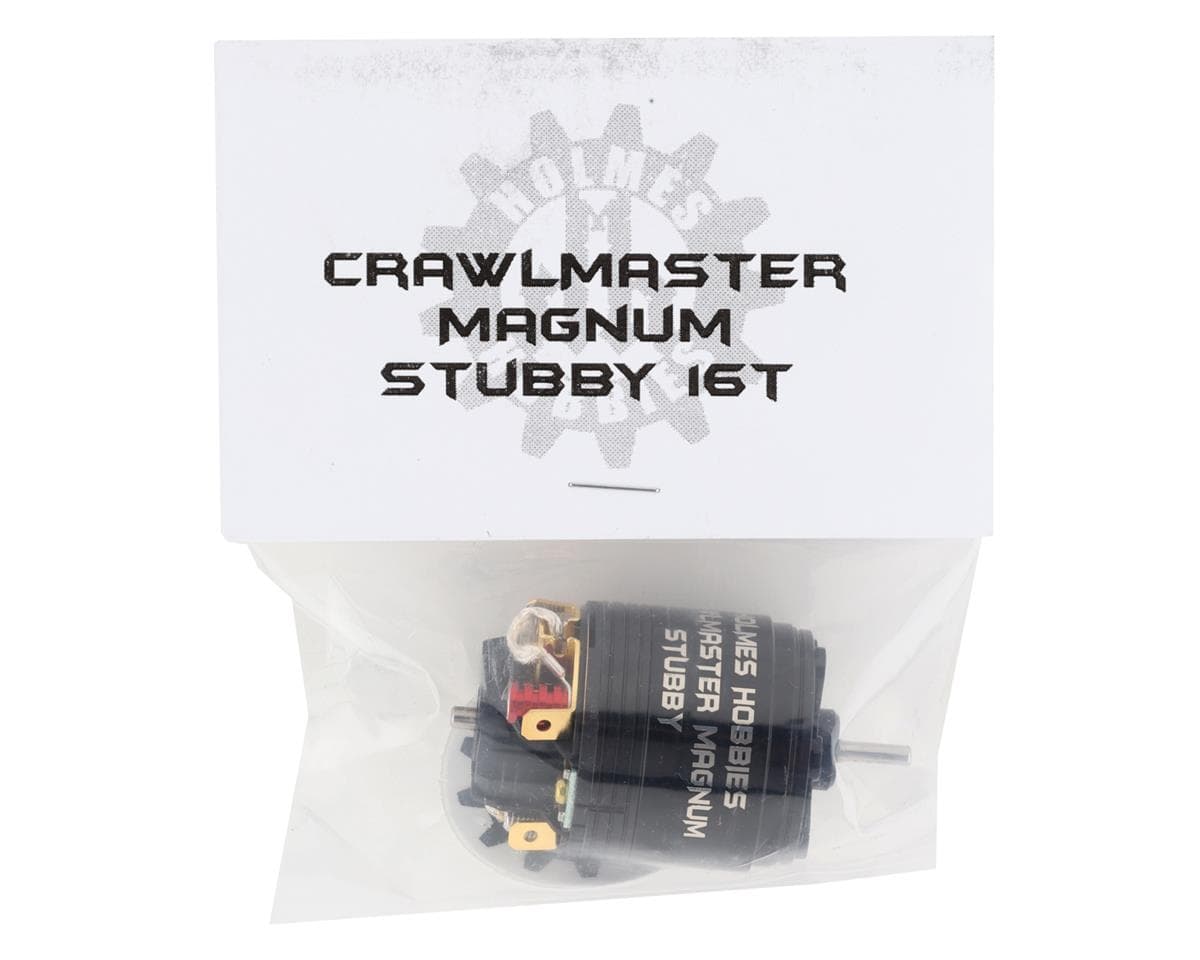

• (1) CrawlMaster Magnum Stubby Brushed Motor
