Parts/Electric power/Brushed motors/Holmes Hobbies CrawlMaster Magnum Stubby Brushed Electric Motor (20T)
Holmes Hobbies

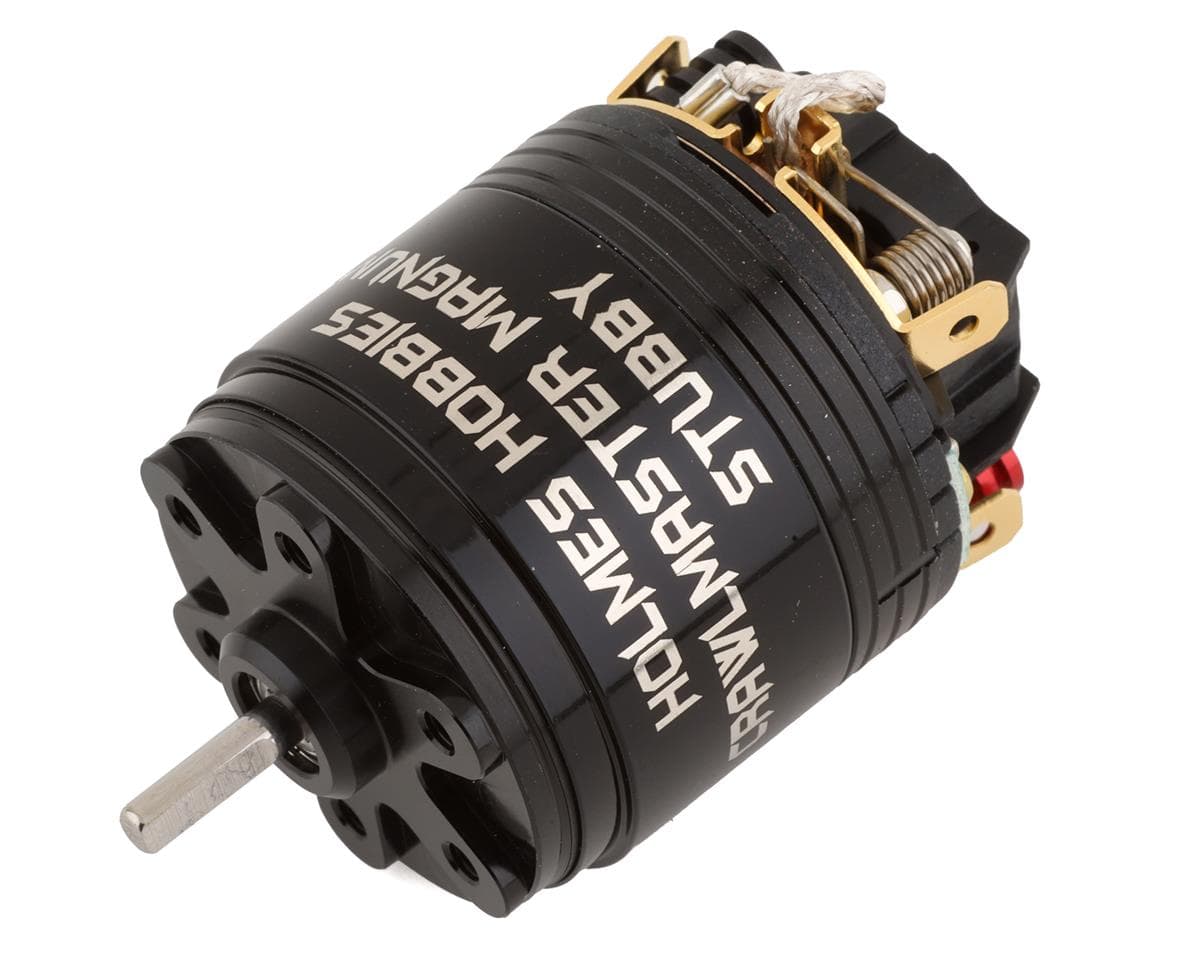

Holmes Hobbies CrawlMaster Magnum Stubby Brushed Electric Motor (20T)
Part # HHB110100111
Where to buy
$174.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Holmes Hobbies CrawlMaster Magnum Stubby electric motor is a limited production motor that features high performance in a small package. These motors use a larger diameter rotor when compared to the standard CrawlMaster motor giving you extreme torque and the smooth startups. The "Stubby" version is smaller and lighter, specifically for competitive drivers who want top performance in a small and light package.
Features:
- 200c rated Neodymium Magnets
- 5 slot 28mm diameter armature
- Holmes XXX springs
- Holmes soft copper brushes
- Fully rebuildable and compatible with many Holmes 540 motor endbell parts
- Uses standard 540 mount
Specifications:
Turn: 20T
Diameter: 36mm
Length: 46.4mm
Shaft Diameter: 1/8"
Weight: 4.79oz (136g)
Includes:
Shaft Diameter: 1/8"
Weight: 4.79oz (136g)
Includes:

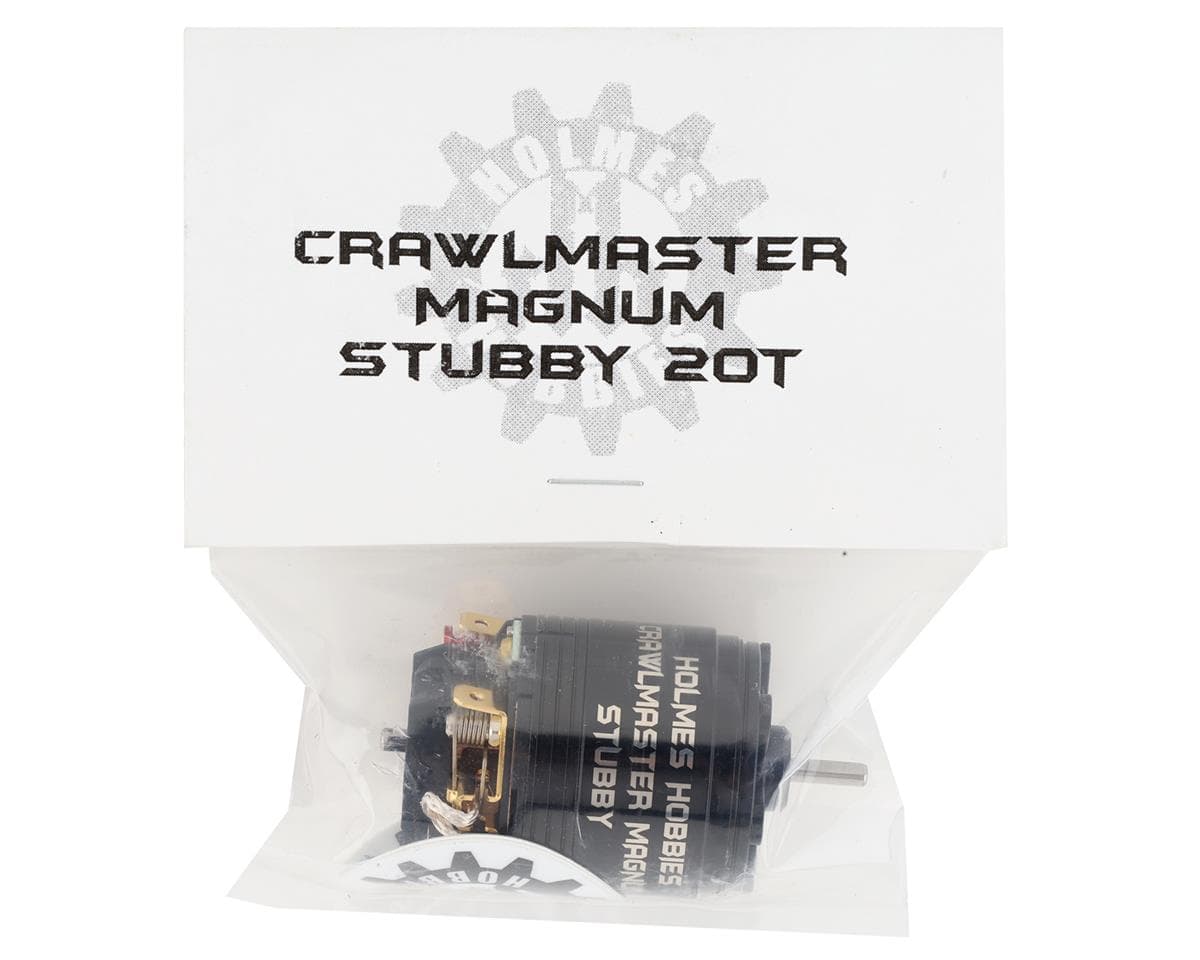

- (1) CrawlMaster Magnum Stubby Brushed Motor
