Parts/Electric power/Brushed motors/Holmes Hobbies CrawlMaster Sport 540 Brushed Electric Motor (16T)
Holmes Hobbies

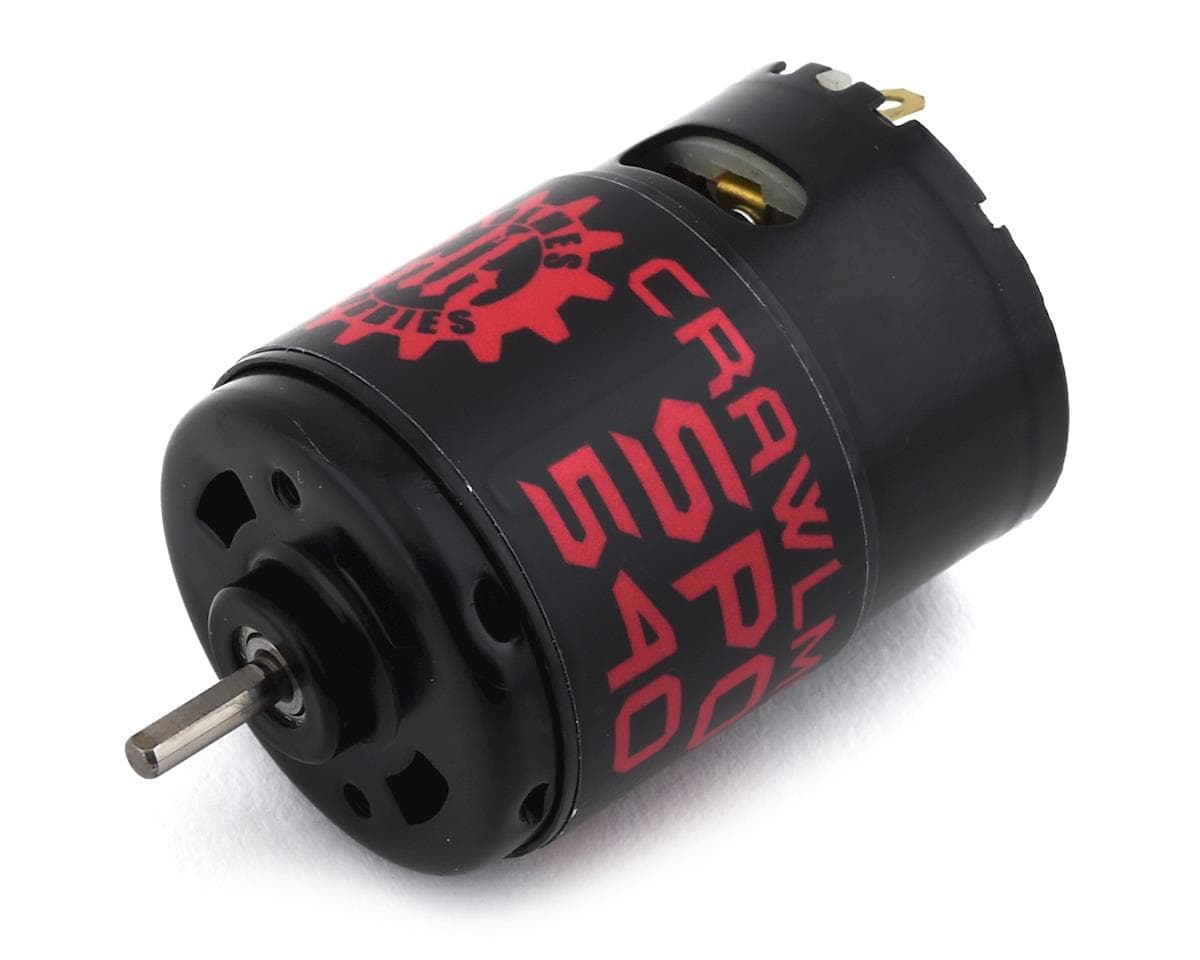

Holmes Hobbies CrawlMaster Sport 540 Brushed Electric Motor (16T)
Part # HHB1101000985.0(1)
Where to buy
$14.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Holmes Hobbies CrawlMaster Sport 540 Brushed Electric Motor is an incredibly smooth budget motor, built for messy, dirty, off road action. Whether on the rocks or in the dirt, the Crawlmaster Sport is perfectly at home. Great choice for young drivers, running in the muck without ruining an expensive motor, or just crawling on a budget.
Features:
- 5 slot rotor for industry leading smoothness
- Zero timing, universal installation and rotation direction
- 1/8th inch shaft diameter
- 36mm OD x 52mm length (not including shaft)
- 178g weight
- m3 mount holes, 25mm spacing, "540" standard
- ball bearing on output
- bronze bushing on end bell
- High strength magnets
Equivalent KV:
- Crawlmaster Sport 540 13t - 1850kv
- Crawlmaster Sport 540 16t - 1500kv
- Crawlmaster Sport 540 20t - 1250kv
Reviews5.0 · 1 review
Kalden YhonjanVerified owneron Holmes Hobbies CrawlMaster Sport 540 Brushed Electric Motor (16T)
Well everyone knows the quality, performance and value of a Holmes Hobbies product. I am very pleased with the slow crawl ability of the CrawlMaster as it feels like you have gone up a few gear ratios in low down smoothness. My rig is an SCX10 ii Builders Kit with gearing of 56/12 combined with a Hobbywing 1080 this setup offers great slow feel resolution.
1 found this helpful
Builds using this part
No builds use this part yet — add it to yours from the build editor.
