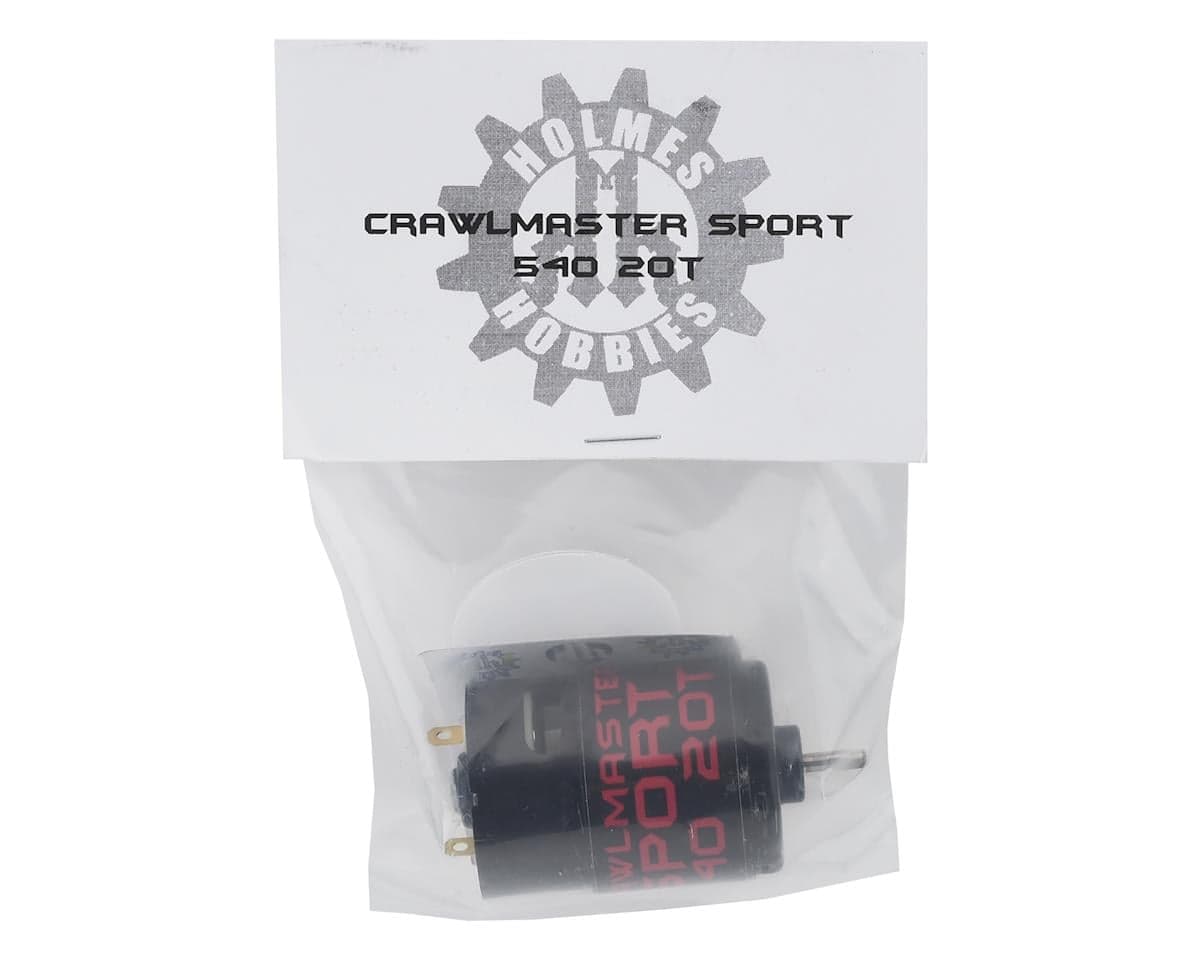

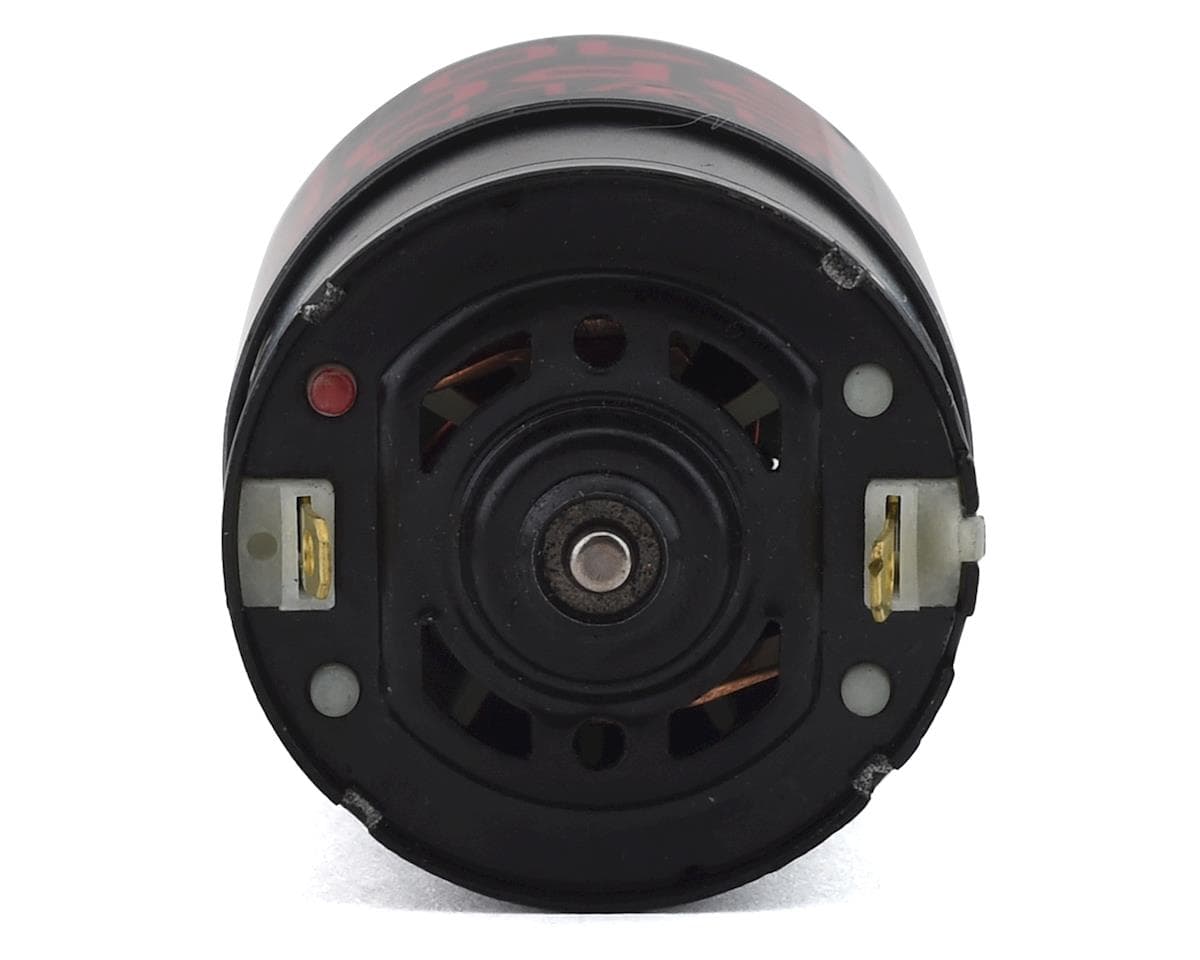

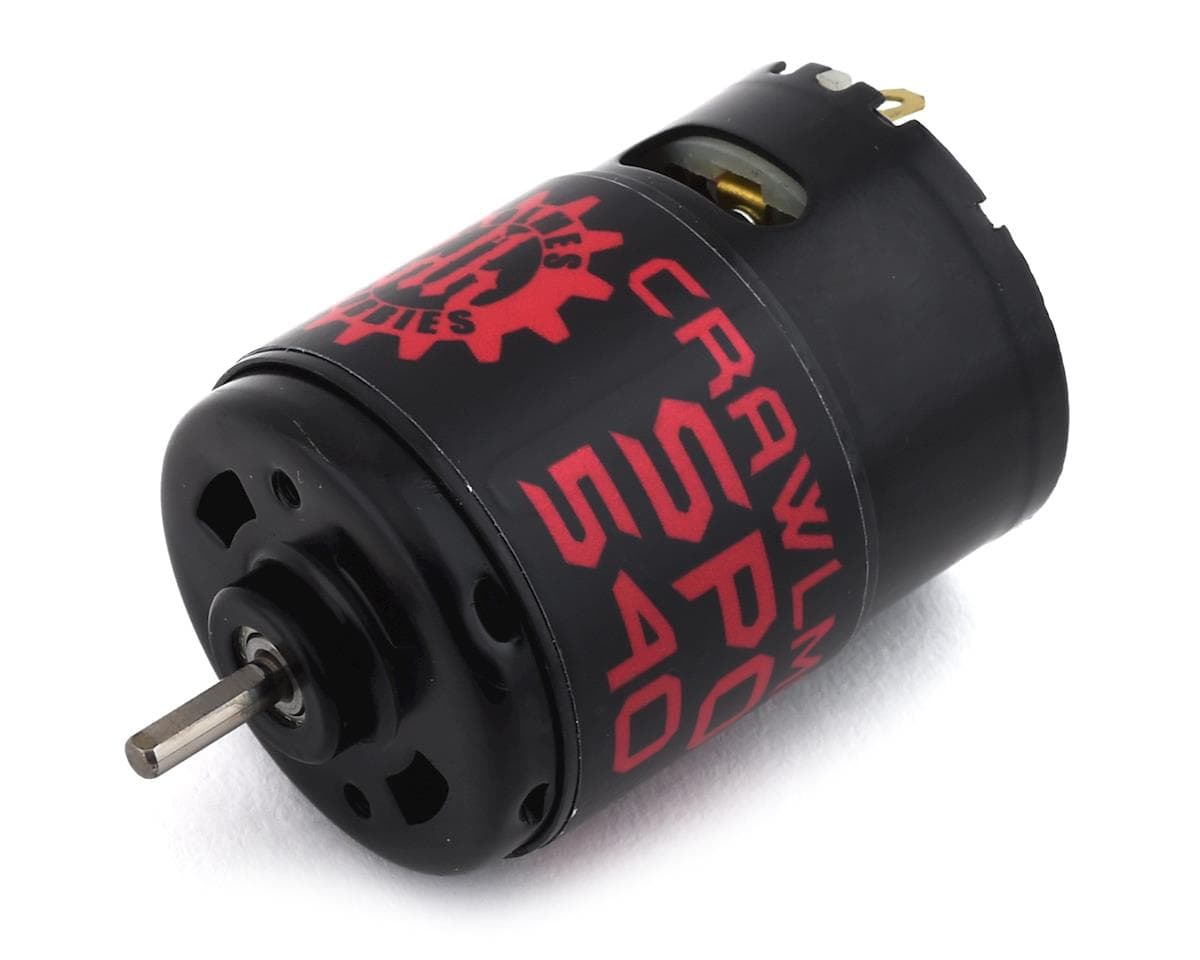

Holmes Hobbies CrawlMaster Sport 540 Brushed Electric Motor (20T)
Part # HHB1101000995.0(2)
Where to buy
$14.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Holmes Hobbies CrawlMaster Sport 540 Brushed Electric Motor is an incredibly smooth budget motor, built for messy, dirty, off road action. Whether on the rocks or in the dirt, the Crawlmaster Sport is perfectly at home. Great choice for young drivers, running in the muck without ruining an expensive motor, or just crawling on a budget.
Features:
- 5 slot rotor for industry leading smoothness
- Zero timing, universal installation and rotation direction
- 1/8th inch shaft diameter
- 36mm OD x 52mm length (not including shaft)
- 178g weight
- m3 mount holes, 25mm spacing, "540" standard
- ball bearing on output
- bronze bushing on end bell
- High strength magnets
Equivalent KV:
- Crawlmaster Sport 540 13t - 1850kv
- Crawlmaster Sport 540 16t - 1500kv
- Crawlmaster Sport 540 20t - 1250kv
Reviews5.0 · 2 reviews
Vincent PetruccelliVerified owneron Holmes Hobbies CrawlMaster Sport 540 Brushed Electric Motor (20T)
Bought this to use with a Tamiya CC-01 and it has been perfect. I would typically run at least 3 or 4s lipo on a motor this slow, but given the cc-01's lack of gear reduction, 2s is perfect for it. Motor runs cool and has great torque and startup even with the high gearing and non-crawler ESC.
2 found this helpful
John JacksonVerified owneron Holmes Hobbies CrawlMaster Sport 540 Brushed Electric Motor (20T)
great motor, just wish they would put some leads on instead of making you do it yourself... but for the price you can't get a better motor.
