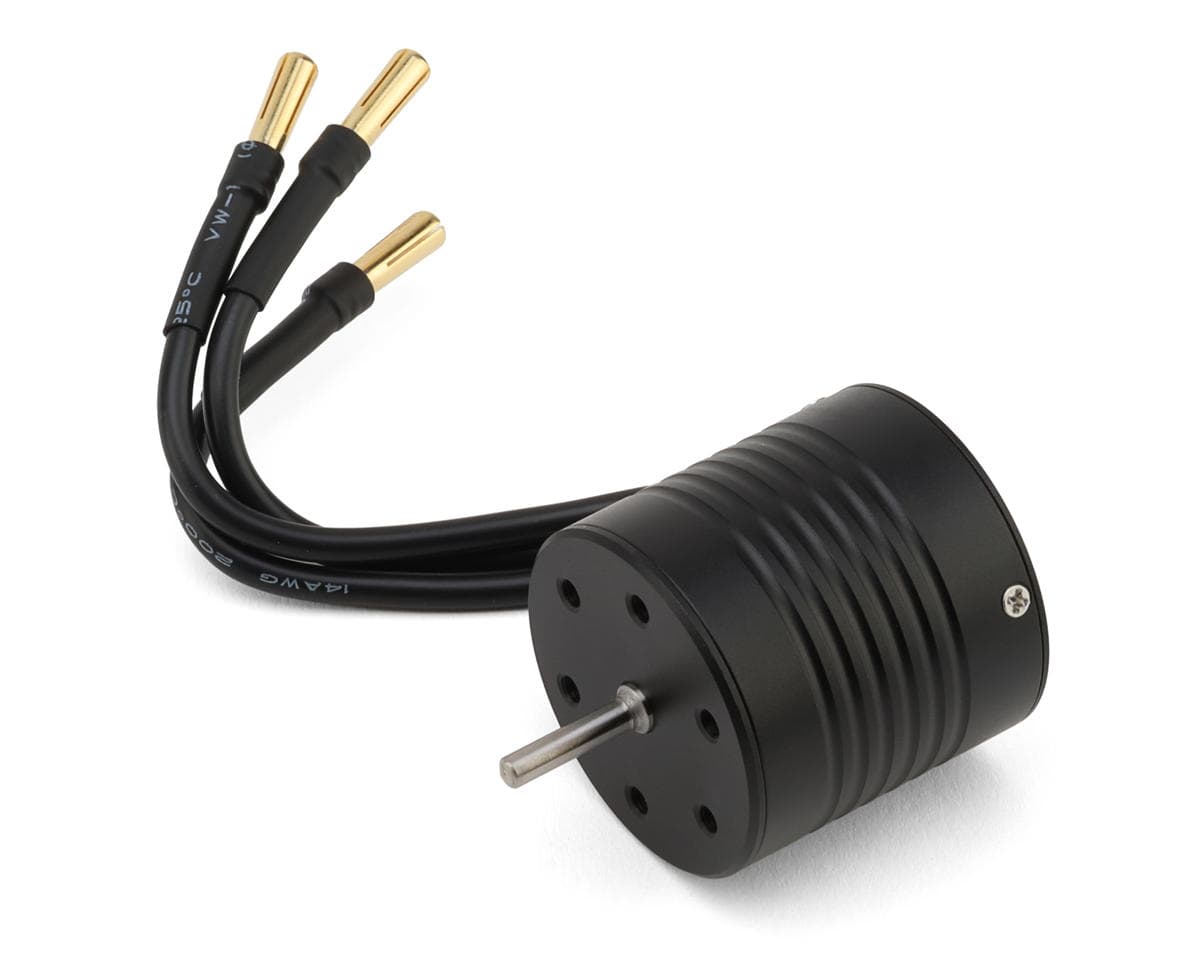

Holmes Hobbies Crawlmaster V2 540 Stubby 10 Pole Inrunner Rock Crawler Motor (2300Kv)
About this part
Motor Overview:
The Crawlmaster V2 540 Stubby 10 Pole Inrunner Rock Crawler Motor from Holmes Hobbies is designed to deliver exceptional torque and control in a compact package. Built for serious crawlers and scale truck enthusiasts, this motor offers smooth startup and precise throttle response. Its shortened stubby design reduces weight without sacrificing performance, making it ideal for tight chassis setups.
About the Crawlmaster V2
Shorter & Lighter Performance Motor
This motor utilizes advanced 10 pole 12 slot magnetics paired with a large diameter rotor to produce impressive torque and low-speed control. The compact aluminum sealed housing protects internal components while maintaining lightweight efficiency. Oversized bearings and high-quality materials ensure durability under demanding conditions, while the ultra low no-load current improves overall efficiency. Equipped with 4mm gold-plated bullet connectors, this motor offers convenient plug-and-play installation and reliable power delivery.
Features:
- 10 pole 12 slot magnetic design
- High torque large diameter rotor
- Compact stubby 540 size
- Smooth startup performance
- Ultra low no load current
- Oversized ball bearings
- Waterproof sealed design
- 4mm gold plated connectors
- Efficient power delivery
Includes:
- (1) Crawlmaster V2 540 Stubby 10 Pole Inrunner Rock Crawler Motor
Specifications:
| Application | 1/10-1/12 Crawler |
|---|---|
| Type | Sensorless Brushless |
| Size | 540 Stubby (2300Kv) |
| Input Voltage | 2-4S LiPo |
| Connectors | 4mm Bullet |
| Length | 1.38in (35mm) |
| Diameter | 1.42in (36mm) |
| Shaft Length | 0.6in (15mm) |
| Shaft Diameter | 1/8in (3.17mm) |
| Weight | 5.15oz (146g) |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
I have this 2300kv version in a VRD Carbon with stubby kit. It’s powered by a Rhino v80 2-6S ESC and this combo works amazingly well! I had to tweak the ESC tune a bit and found that lowering the startup power between 70-80 was the sweet spot for my use. The motor acted jittery when startup power was at 90 thru 110. This motor has a ton of torque and fits perfectly in a Vanquish stubby kit. I chose this over an outrunner motor because I wanted the weight this has over the outrunners I had. This allowed me to keep more of my forward weight bias I was desiring. I liked this 2300kv motor so much that I bought the 1800kv version to try for another project.
