Holmes Hobbies Puller Pro R 540-L V2 Waterproof Sensored Race Motor (6000kV)
Holmes Hobbies

Holmes Hobbies Puller Pro R 540-L V2 Waterproof Sensored Race Motor (6000kV)

Part # HHB1201000595.0(1)
Brushless motorsLandcraft
Where to buy
$74.99
AMain Hobbies
Seen Oct 12, 2026
$74.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

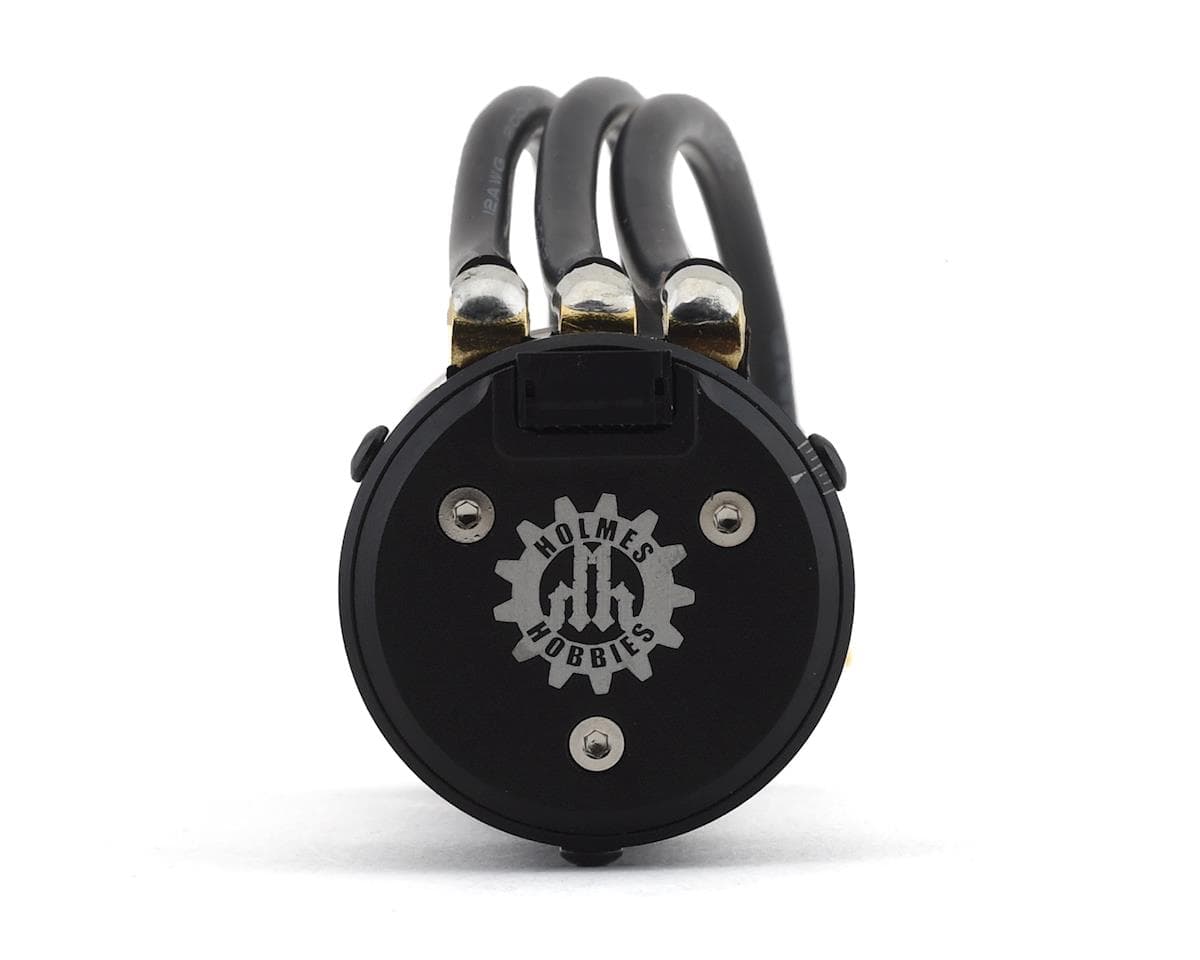

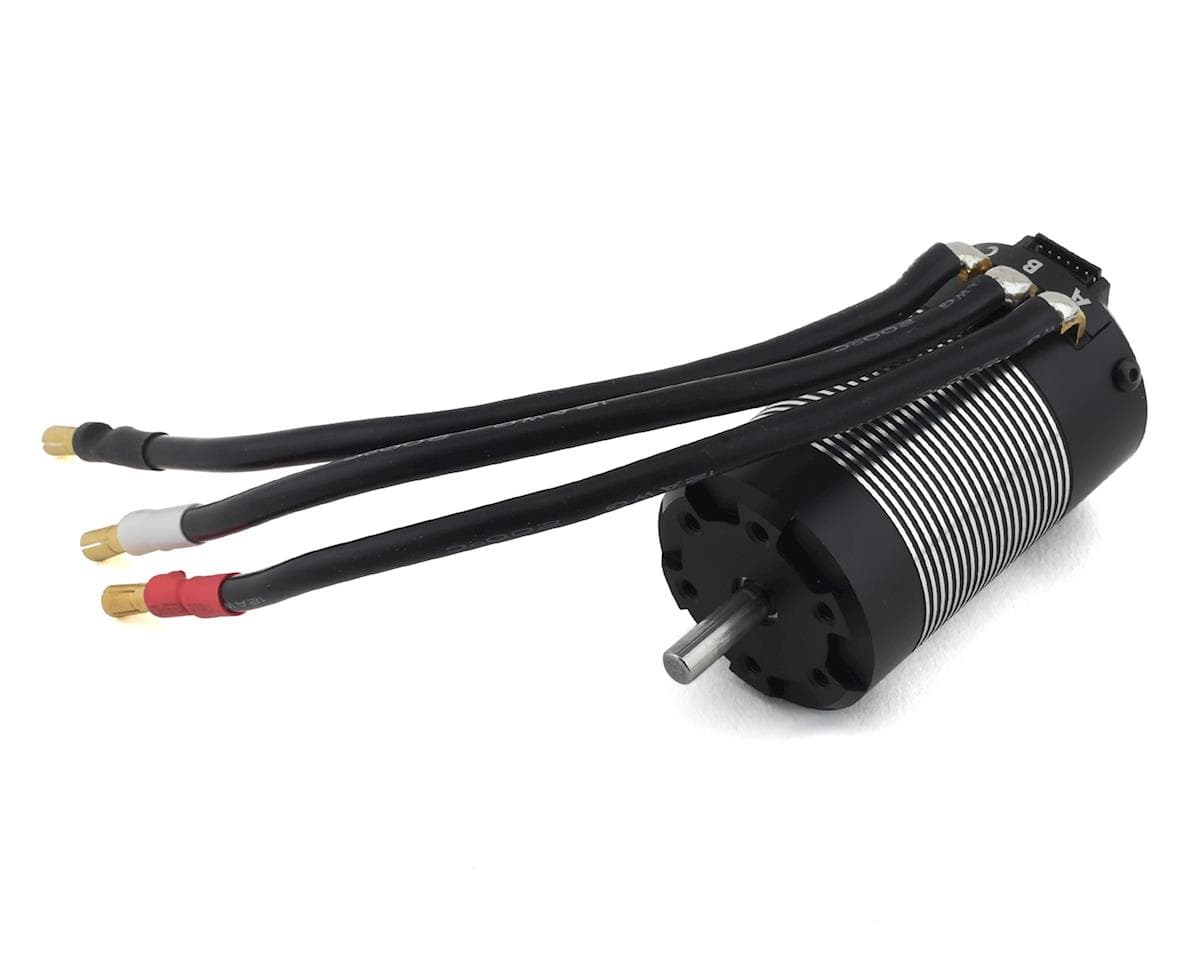

The Holmes Hobbies Puller Pro R 540-L V2 Waterproof Sensored Race Motor is a rock race honed variation with higher quality materials for less heat, more torque, and less brake fade. It retains great low speed control and throttle feel, giving you an edge whether in the rocks or on the track.

Designed for 1/10th scale U4, rock racing, endurance, drag racing and sled pulling. Recommended battery 2s lipo, 5000mah 35c or greater. Recommended ESC 1/10th or 1/8th scale suitable for 4x4 vehicles. If you get your motor wet, you must clean, dry, and relube bearings to avoid damage.

Warning! Do not extend screws into motor plate more than 3.5mm or damage to windings may occur.

Features:
  • Four pole 18mm diameter x 26mm length rotor
  • Twelve slot stator
  • 180C resin impregnated copper windings
  • 200C rated high strength neodymium magnets
  • Oversized bearings
  • Sensored
  • Waterproof sensor board

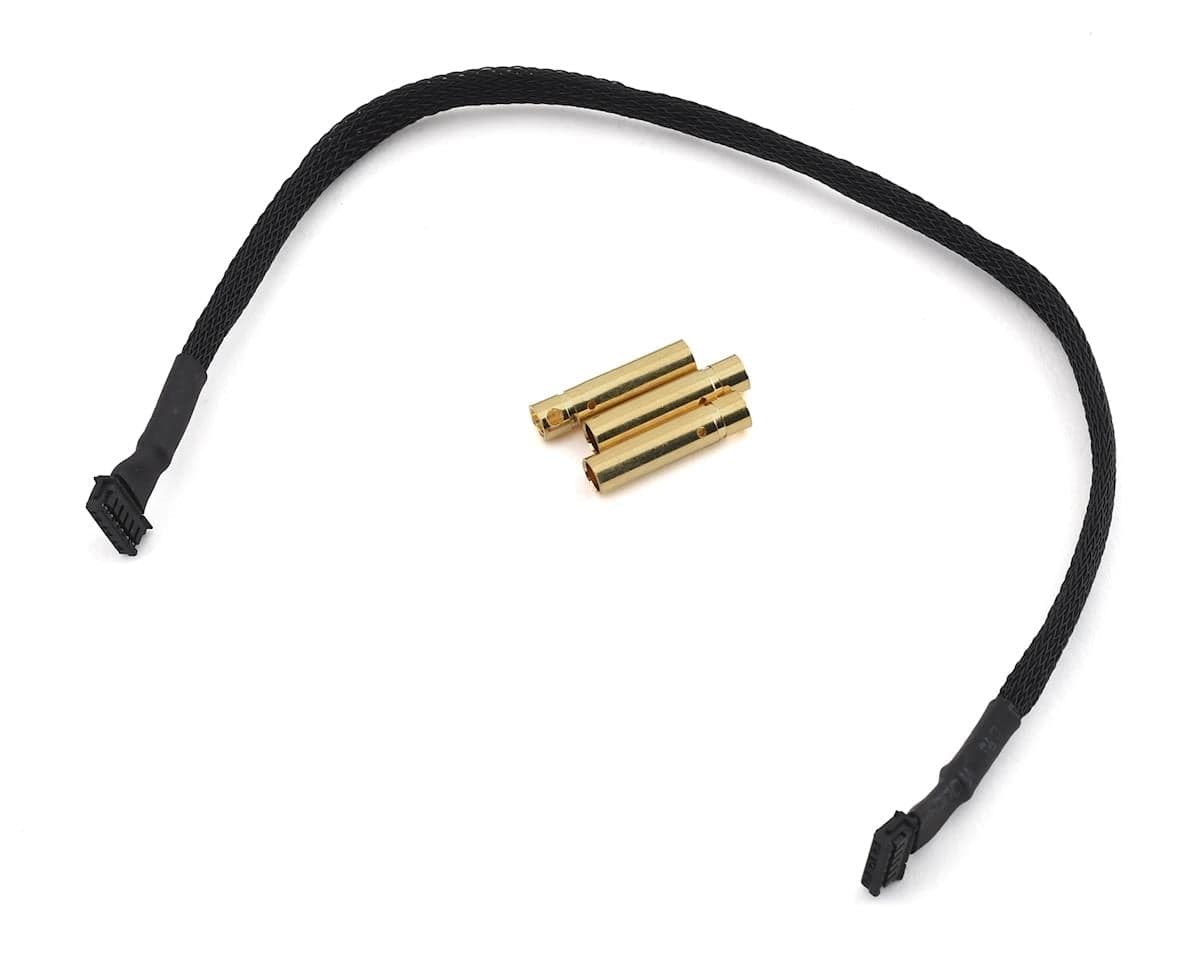

  • Sensor wire included

NOTE: 1 year warranty from date of purchase. Does not include damage from overheating, rusting, or improper installation.


Specifications:
Type: "550" size motor
Mount Pattern: 25mm
Mounting Hardware: M3 screws
Shaft Diameter: 5mm
Can Size: 36mm diameter x 60.5mm length
Weight: 236.5g
RPM: 60,000 rpm max

Reviews5.0 · 1 review

promod smt10 HNLVerified owneron Holmes Hobbies Puller Pro R 540-L V2 Waterproof Sensored Race Motor (6000kV)

this motor is a beast! just have to be tuned correctly so you don't over heat the motor. previously ran tekin pro4HD 4300kv in my pro mod smt10 race truck with 2.6 renegades. would only get 35-40k rpm and with HH 6k it would do 40-45k rpm so it was faster right out the bat. since it's a race truck our run times is very short, so i went 3s and now it's a solid 60k rpm and a..... B E A S T!!! i really had to turn it down on the esc or it do standing back flips and wheelie at half speed on command. voltage drop is the enemy so make sure you have a large enough lipo and even capacitors cuz i sure did. i run a tekin rx8 esc with caps.

2 found this helpful
