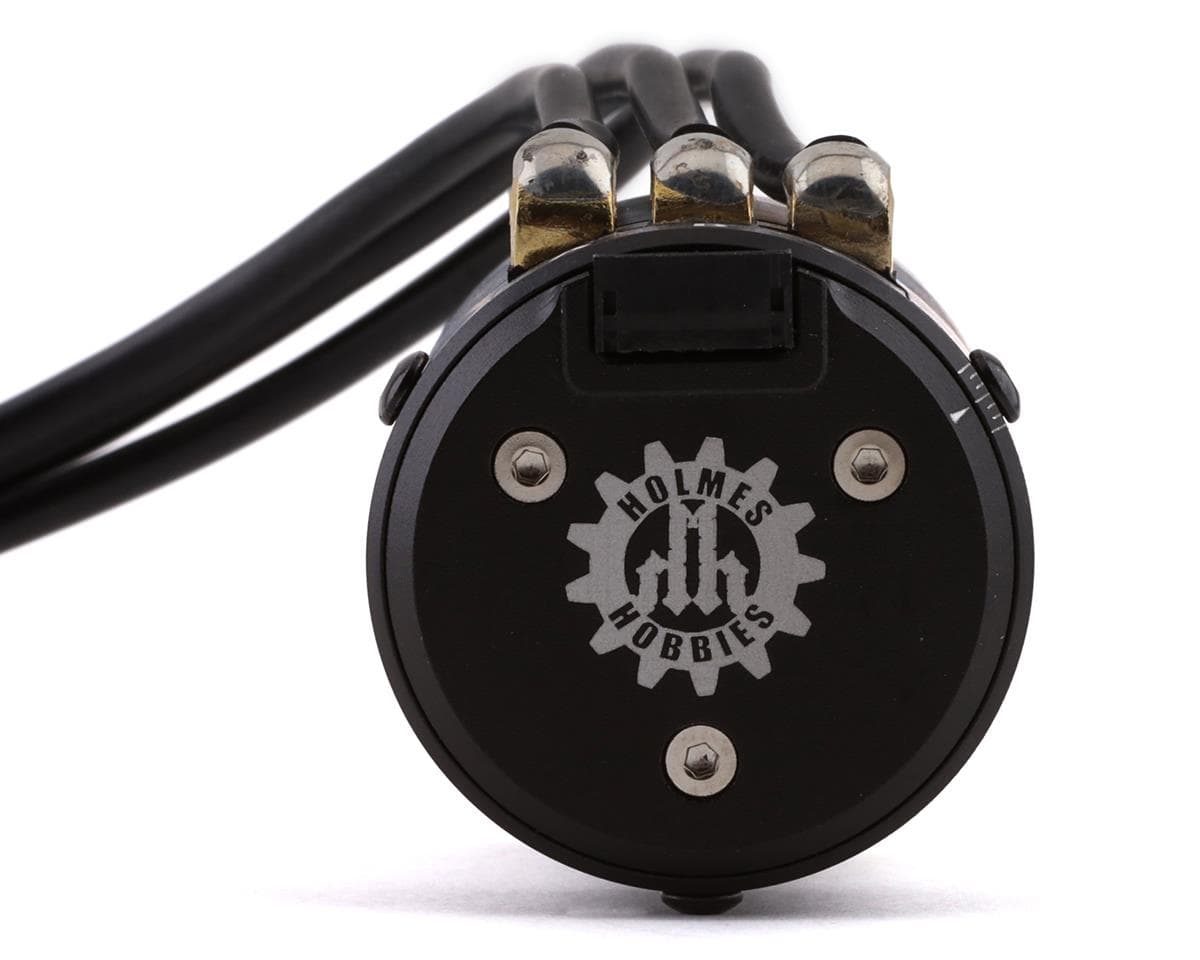

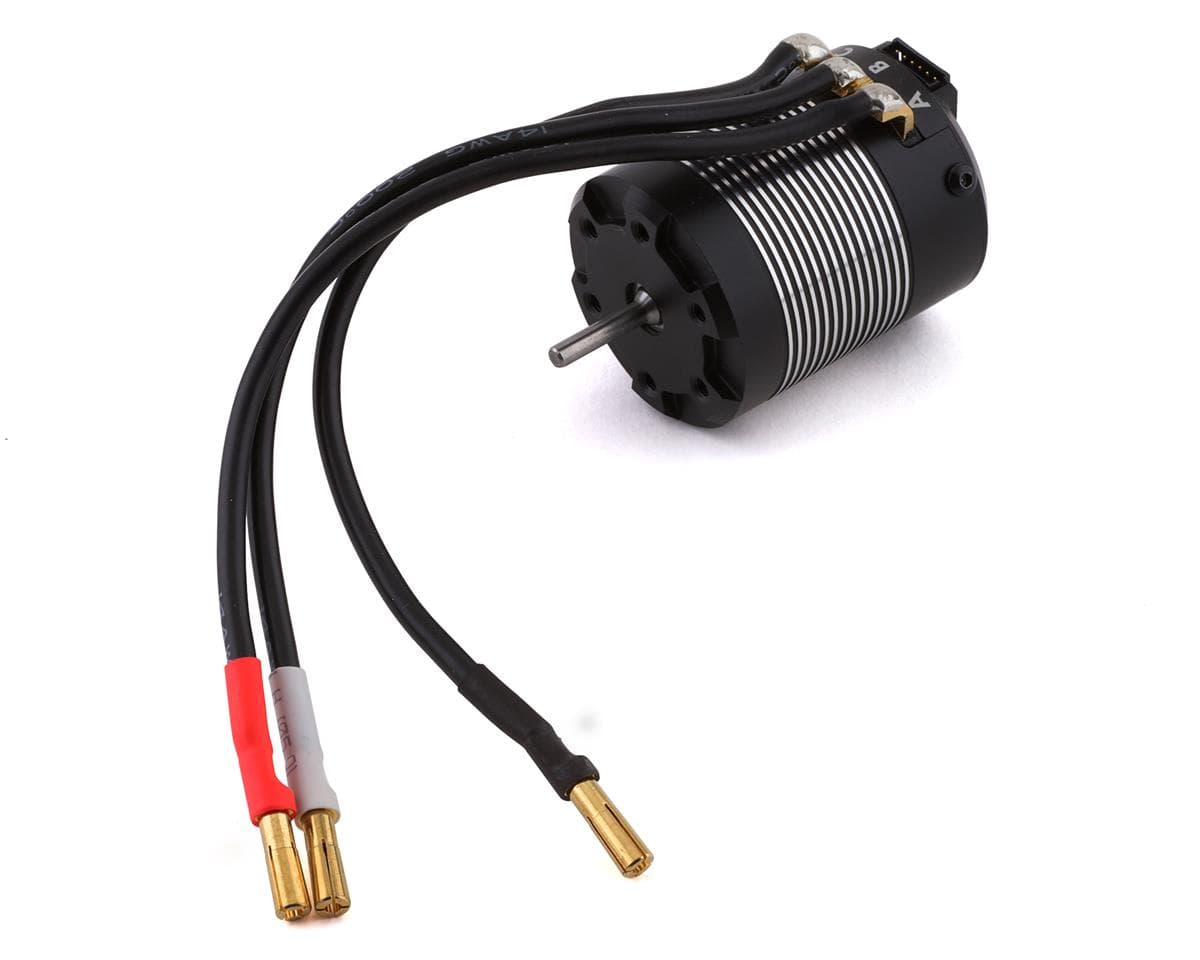

Holmes Hobbies Puller Pro Stubby V2 Waterproof Sensored Crawler Motor (2200kV)
Part # HHB1201000525.0(1)
Where to buy
$99.99
Prices are as last seen at the store; stock is not tracked.
About this part
This Holmes Hobbies Puller Pro Stubby V2 Waterproof Sensored Crawler Motor is perfectly suited as a drop in motor for any rock crawler that uses 540 size motors, yet the Puller Pro Stubby v2 is shorter and lighter than other brands without sacrificing power or torque. It is designed for scale builds, trail riding, and competitive crawling.
Features:
- Four pole 18mm diameter x 16mm length rotor
- Twelve slot stator
- 13g phase wires with 4mm bullets installed
- Oversized bearings
- Sensored with adjustable timing
- Waterproof sensor board

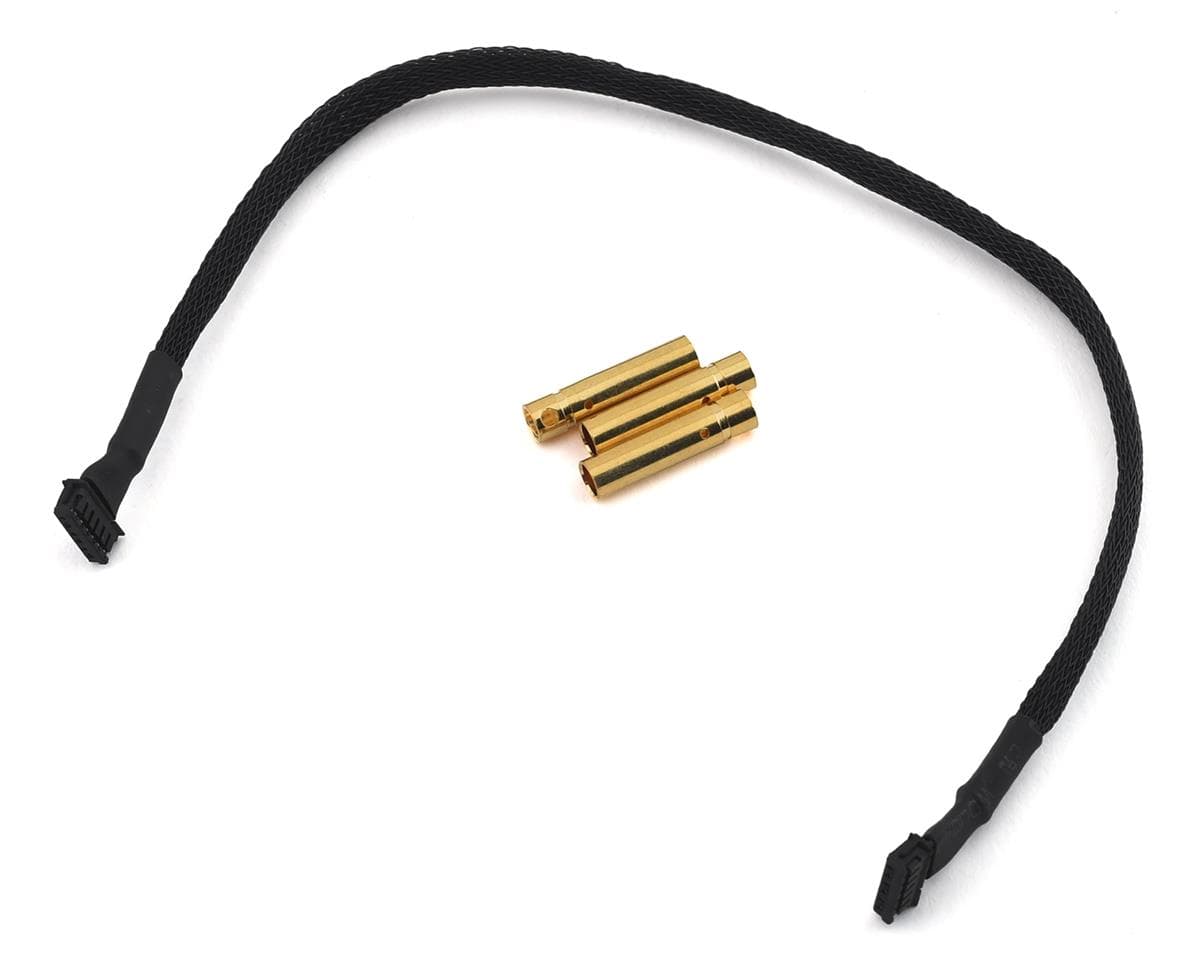

- Includes sensor wire
Specifications:
Shorter than a 540 motor
Mounting pattern: 25mm
Mounting screws: M3
Shaft: 3.175mm
Diameter: 36mm
Length: 45mm
Weight: 164g (5.8oz) w/ wires
Max RPM: 50,000
Reviews5.0 · 1 review
King Dorkon Holmes Hobbies Puller Pro Stubby V2 Waterproof Sensored Crawler Motor (2200kV)
Motor installed in my Axial Capra paired with a Castle Mamba X esc on 2.2 wheels/tires. More power than required and runs cool when run hard. Smooth power delivery and almost silent. Don’t let the “Stubby” fool you. This motor has lots of torque and fits in any rig. Typical home run by the great Holmes Hobbies team.
1 found this helpful
