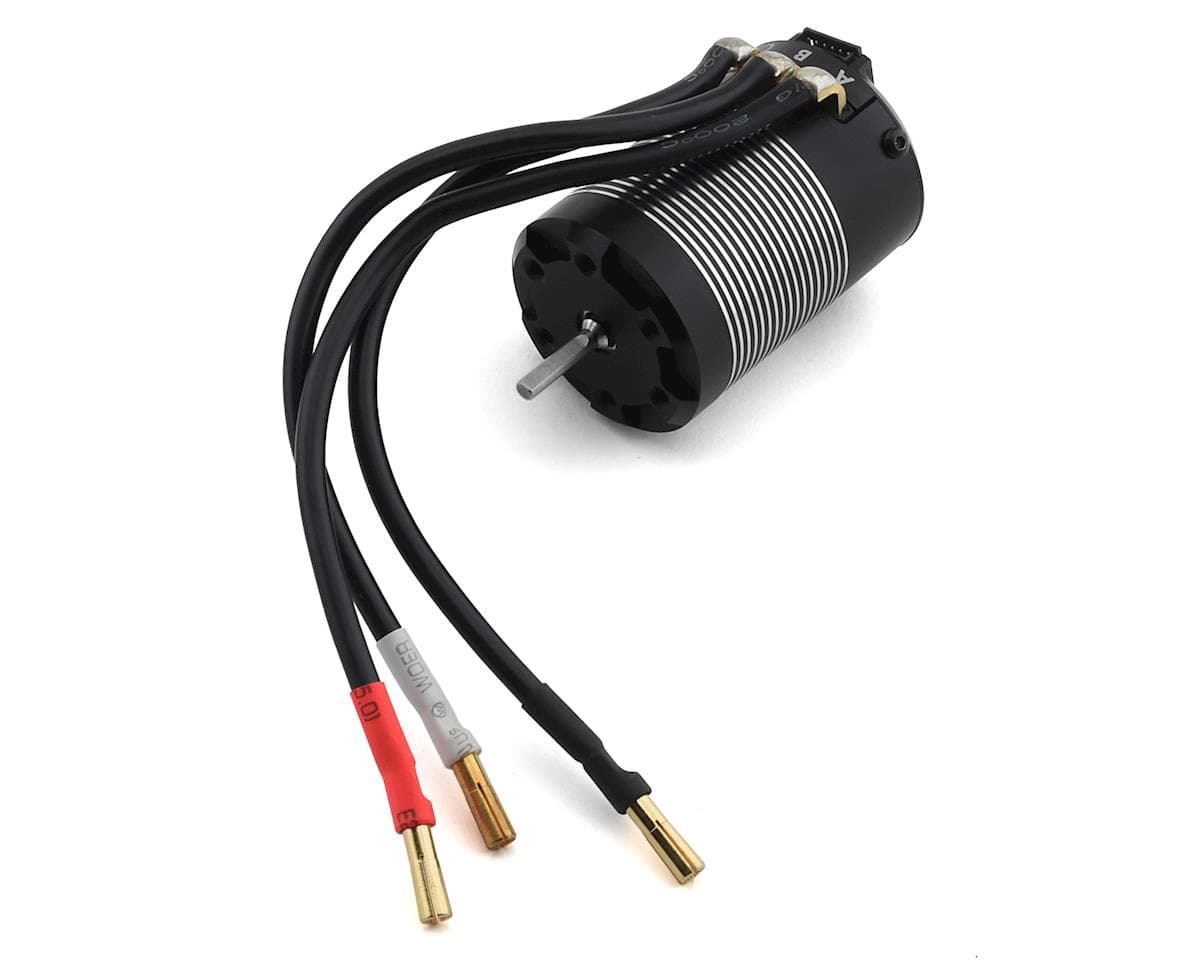

Holmes Hobbies Puller Pro V2 540 Waterproof Sensored Crawler Motor (2200kV)
Part # HHB1201000555.0(2)
Where to buy
$54.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Holmes Hobbies Puller Pro V2 540 Waterproof Sensored Crawler Motor provides high power, high torque, high performance, and smooth startup. When you want BIG torque and smooth brushless startup on the rocks, the Puller Pro v2 delivers! Perfectly suited as a drop in motor for any rock crawler or rock racer that uses 540 and 550 motors, the Puller Pro v2 is in a class above the rest. It crams in more "active motor" than any other 540 available to give you the excessive force you desire. Exceptional performance in rock racing, extremely strong brake, with top class smoothness going slow in the rocks. Designed for extra control in fast, large, heavy, and two speed rock crawlers.
Improvements from v1 include better drag brake, adjustable and more accurate sensors, better performance in reverse rotation rigs, beefier solder tabs for lower resistance, and a sideways oriented sensor port for tight installs.
Features:
Size: Standard 540
Mounting Pattern: 25mm
Mounting Screws: M3
Shaft Diameter: 3.175mm
Can Diameter: 36mm
Can Length: 53mm
Weight: 210g (7.4oz) with wires
RPM: 50,000 rpm max
Improvements from v1 include better drag brake, adjustable and more accurate sensors, better performance in reverse rotation rigs, beefier solder tabs for lower resistance, and a sideways oriented sensor port for tight installs.
Features:
- Four pole 18mm diameter x 25mm length rotor
- Twelve slot stator
- 13g phase wires with 4mm bullets installed
- Oversized bearings
- Sensored with adjustable timing
- Waterproof sensor board

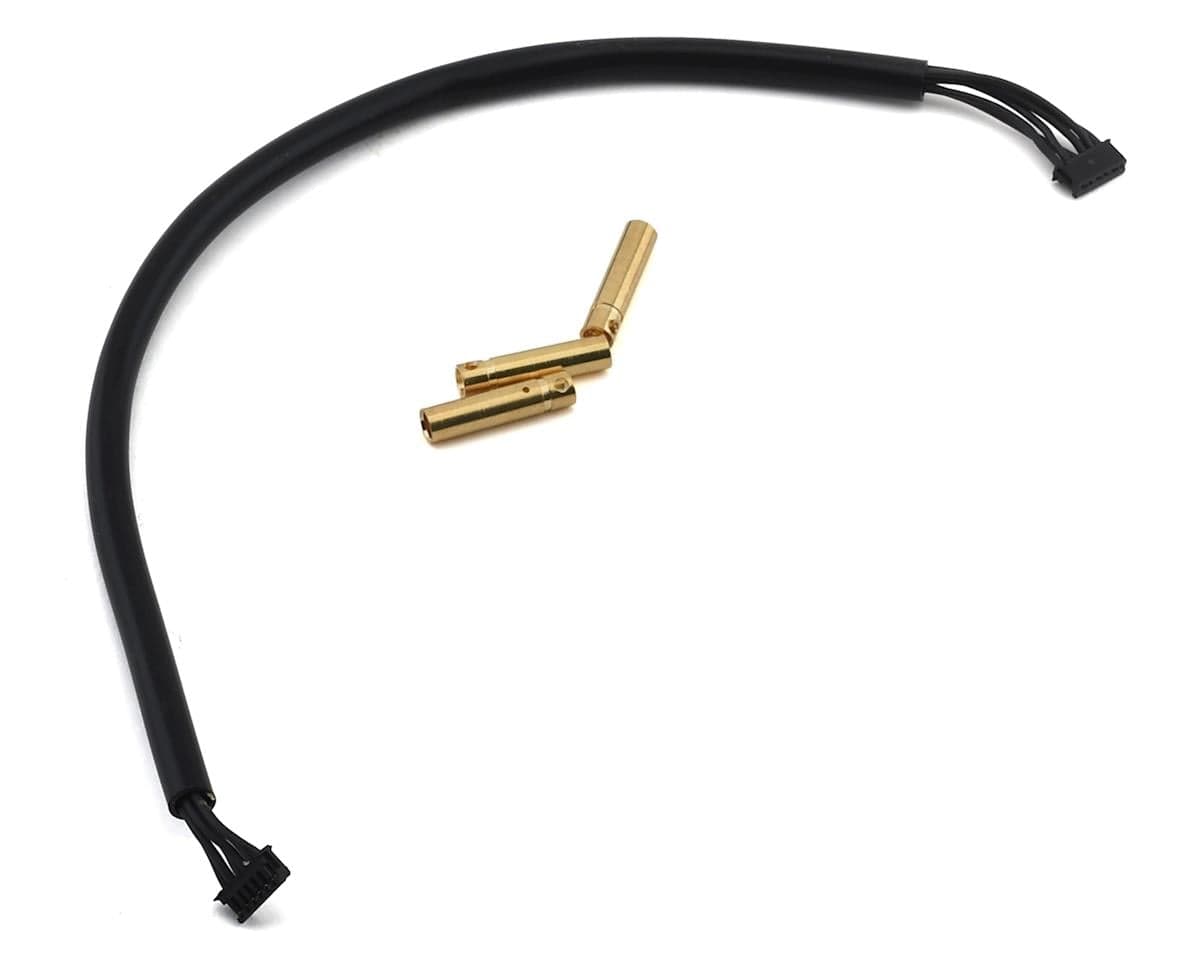

- Includes sensor wire
Size: Standard 540
Mounting Pattern: 25mm
Mounting Screws: M3
Shaft Diameter: 3.175mm
Can Diameter: 36mm
Can Length: 53mm
Weight: 210g (7.4oz) with wires
RPM: 50,000 rpm max
Reviews5.0 · 2 reviews
Scott RettewVerified owneron Holmes Hobbies Puller Pro V2 540 Waterproof Sensored Crawler Motor (2200kV)
Great motor. Paired with a Castle Copperhead 10 esc. Low speed control is outstanding and the top speed is on point. With stock gearing. Currently running in a Axial Wraith 2.2. Motor is just warm to the touch after running for 45 minutes plus. Fit and finish is very good also.
King Dorkon Holmes Hobbies Puller Pro V2 540 Waterproof Sensored Crawler Motor (2200kV)
Paired with a Castle Copperhead esc in a TRX4. Motor has torque for days, excellent low speed control, and drag brake is like an anchor. Almost silent with the Castle esc and motor stays cool. Holmes Hobbies knows how to build a beast of a motor!
