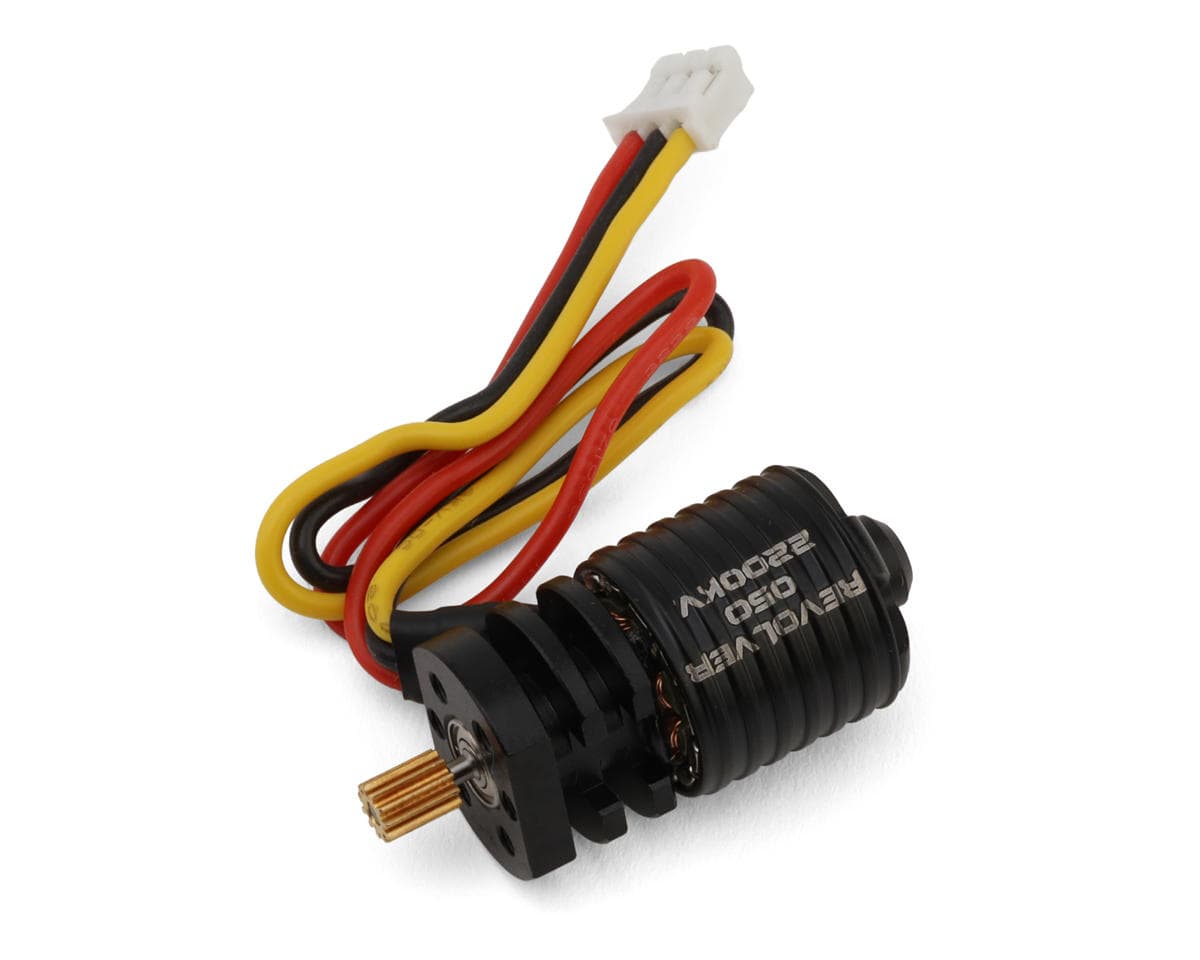

Holmes Hobbies Revolver 050 Micro Brushless Rock Crawler Motor (2200kV)
About this part
Motor Overview:
This is the Revolver 050 Micro Brushless Rock Crawler Motor from Holmes Hobbies. This compact brushless outrunner motor is designed to deliver impressive power and efficiency for mini and micro scale rigs. Engineered with a universal mounting pattern, it offers excellent compatibility with a wide range of popular platforms.
About the Revolver 050
Compact & Powerful
The Revolver 050 combines a long stator design with high-quality magnetics to produce outstanding torque and holding power in a compact package. Its versatile mounting pattern allows it to fit a variety of mini and micro chassis, including many stock and aftermarket setups. The lightweight construction keeps overall vehicle weight low while maintaining strong output performance. Designed for use with brushless systems, it provides smooth, efficient power delivery for demanding crawling and trail applications.
Features:
- 11T Mod .3 pinion gear
- 2S to 3S LiPo compatibility
- Universal 030, 050, and 9mm mounting pattern
- Long stator for increased torque
- 12 pole 9 slot motor configuration
- Lightweight 20 gram design
- Holmes magnetics and housing
- Standard micro 3 pin plug
Includes:
- (1) Revolver 050 Micro Brushless Rock Crawler Motor
Specifications:
| Application | 1/24-1/30 Crawler |
|---|---|
| Type | Sensorless Brushless |
| Size | 050 (2200kV) |
| Input Voltage | 2-3S LiPo |
| Connectors | Micro 3-Pin |
| Length | 1.14in (29mm) |
| Diameter | 0.63in (16mm) |
| Shaft Length | - |
| Shaft Diameter | 0.06in (1.5mm) |
| Weight | 0.71oz (20g) |
