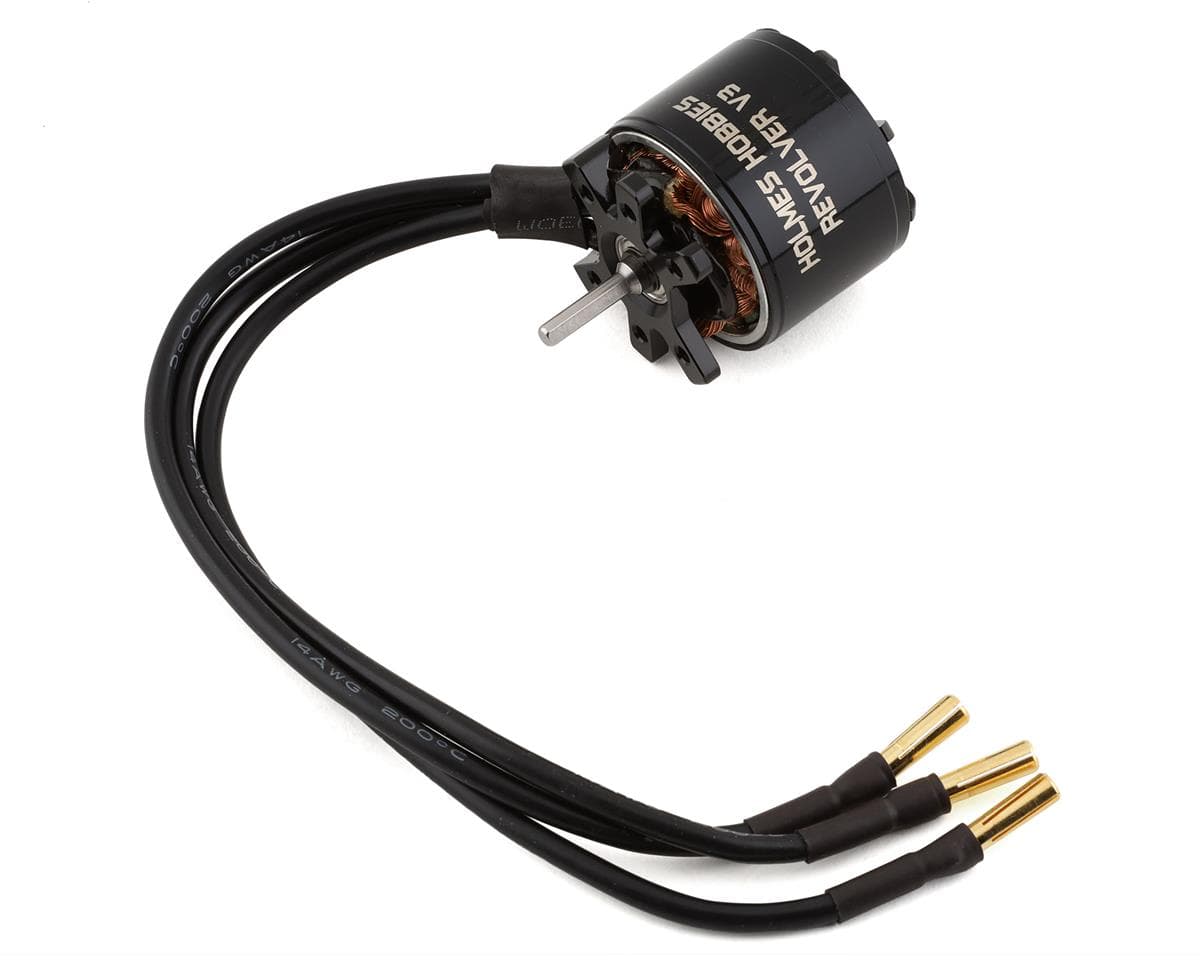

Holmes Hobbies Revolver V3 540 Sensorless Brushless Outrunner Motor (1000kV)

Motor Overview:

Do you need a small and light motor for your vehicle, but do not want to sacrifice torque? Do you want the finest Sensorless brushless low-speed control? The Revolver 540 has you covered! An extremely torque-dense and lightweight choice with exceptional startup and feel that rivals brushed motors! The 540 model is two times more powerful than the "Snubnose 540" model, and provides an unmatched torque-dense driving sensation similar to a diesel engine.

The V3 includes more mounting positions, a beefier wire retainer, and a thicker back iron. The magnetic changes give all models more torque, drag brake, and static hold! If you currently run a Revolver Classic, then you have already experienced the force of v3 magnetics. Improved rpm lock and anti-stall characteristics make these a real pleasure to drive with modern Castle Creations and Holmes controllers!

• NOT recommended for "rock racers" and 2-speed vehicles, such as the TRX4, Wraith, Bomber, etc.
• To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.

Features:

• Exclusive Holmes magnetics offer buttery smooth industry-leading startup without sacrificing torque
• Magnetic retaining system reduces the risk of thrown magnets in the worst of conditions
• Unique V3 housing has smaller volume and weight compared to simple "rebranded" airplane motors
• Bolts up to standard "540" mount
• Small and lightweight with higher torque than 540 brushed motors
• 1/8" shaft fits common R/C pinions

Specifications:

• Type: Brushless/Sensorless Outrunner
• kV: 1000kV
• Input Voltage: 2-4S (7.4-14.8V) LiPo
• Diameter: 35.5.4mm
• Length: 37.5mm
• Shaft Diameter: 1/8"
• Poles: 14
• Slots: 12
• Weight: 150g w/Wires
• Stator: 28x20mm
• Application: 1/10 Rock Crawlers and Rock Racers

Includes:

• (1) Revolver V3 540 Sensorless Brushless Outrunner Motor
