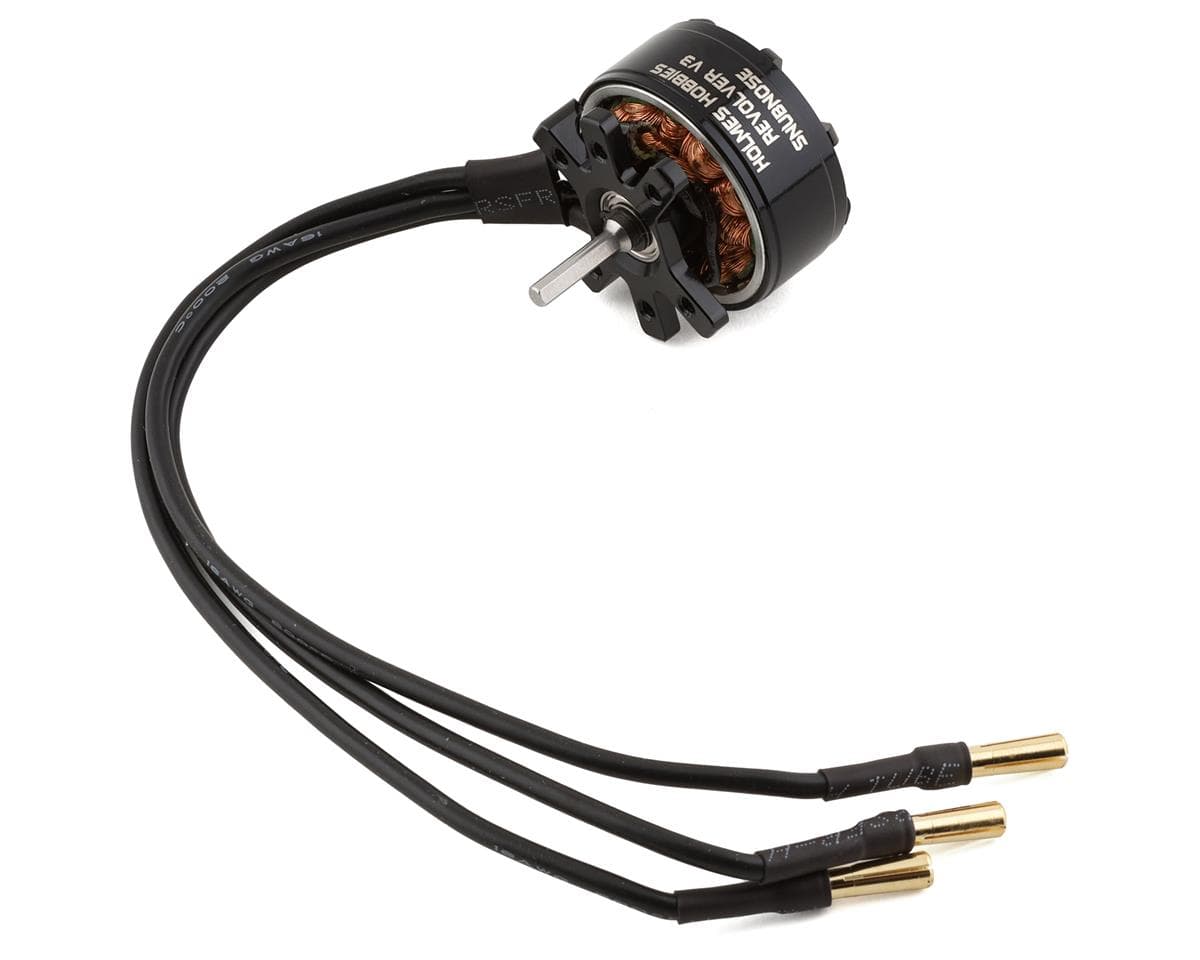

Holmes Hobbies Revolver V3 540 Snubnose Sensorless Brushless Outrunner Motor (1000kV)

Motor Overview:

Do you need a small and light motor for your vehicle, but do not want to sacrifice torque? Do you want the finest Sensorless brushless low-speed control? The Revolver 540 Snubnose has you covered! An extremely torque-dense and lightweight choice with exceptional startup and feel that rivals brushed motors! The Snubnose model is 1/2 the torque of the Standard but is fantastic for lightweight vehicles needing a lower CG (Center of Gravity).

The V3 Snubnose includes more mounting positions, a beefier wire retainer, and a thicker back iron. The magnetic changes give all models more torque, drag brake, and static hold! If you currently run a Revolver Classic, then you have already experienced the force of v3 magnetics. Improved rpm lock and anti-stall characteristics make these a real pleasure to drive with modern Castle Creations and Holmes controllers!

• NOT recommended for "rock racers" and 2-speed vehicles, such as the TRX4, Wraith, Bomber, etc.
• To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.

Features:

• Exclusive Holmes magnetics offer buttery smooth industry-leading startup without sacrificing torque
• Magnetic retaining system reduces the risk of thrown magnets in the worst of conditions
• Unique V3 housing has smaller volume and weight compared to simple "rebranded" airplane motors
• Bolts up to standard "540" mount
• Small and lightweight with higher torque than 540 brushed motors
• 1/8" shaft fits common R/C pinions

Specifications:

• Type: Brushless/Sensorless Outrunner
• kV: 1000kV
• Input Voltage: 2-4S (7.4-14.8V) LiPo
• Diameter: 35.56mm
• Length: 27.4mm
• Shaft Diameter: 1/8"
• Poles: 14
• Slots: 12
• Weight: 94g w/Wires
• Stator: 28x10mm
• Application: 1/10 Single-Speed Rock Crawlers

Includes:

• (1) Revolver V3 540 Sensorless Brushless Outrunner Motor
