Holmes Hobbies SHV650LP HV Low Profile Direct Power Crawler Brushless Servo
About this part
Servo Overview:
The SHV650LP is a compact yet extremely powerful direct power low profile servo! Tailored specifically for 1/10 scale R/C rock crawlers in need of all the torque in a more compact package that can fit in almost any 1/10 rock crawler with no modification, including the behind-the-axle servo styles featured in modern comp crawlers. Its exceptional features make it a perfect choice for applications in need of extreme durability, high torque, and lightning-fast speeds. Engineered with a high-quality brushless motor and circuitry, this servo delivers massive performance and efficiency, ensuring smooth and precise operation even in the most challenging terrains. With its ability to be directly powered from 6V to 16.8V, it offers versatility and compatibility with up to 4S high input voltage!
The SHV650LP robust construction and advanced features are designed to tackle demanding off-road conditions. The servo boasts an alloy case that is water-resistant, ensuring protection against moisture and debris, while its internals are fully waterproofed for added durability. The all-steel machined gears further enhance its reliability, providing maximum strength and resistance to wear and tear. The all-aluminum case with side fins maximizes heat dissipation, ensuring optimal performance even during prolonged use. Whether you're navigating tricky rock formations, or taking on the most challenging lines, the SHV650LP servo offers the durability, precision, and versatility needed to conquer any challenge on the trail!
Features:
- Hi voltage capable of up to 16.8V
- High torque powerful brushless motor
- Waterproofed internals
- All steel machined gears
- Integrated Over-Voltage Snubber
- JST Direct Power plug
- All CNC-machined aluminum case with side fins to maximize heat dissipation
- Perfect fit for most 1/10 rock crawlers
Specifications:
- Application: 1/10 Rock Crawlers
- Operating Voltage: 6-16.8V
- Speed:
- @12.6V: 0.10sec/60°
- @14.4V: 0.09sec/60°
- @16.8V: 0.08sec/60°
- Torque:
- @12.6V: 700oz-in (kg-cm)
- @14.4V: 800oz-in (kg-cm)
- @16.8V: 900oz-in (kg-cm)
- Motor: Brushless
- Dimensions (LxWxH): 1.60x.79x1.16in. (40.8x20.2x29.5mm)
- Weight: 66g (2.32oz)
- Operating Spline: 25T
Includes:

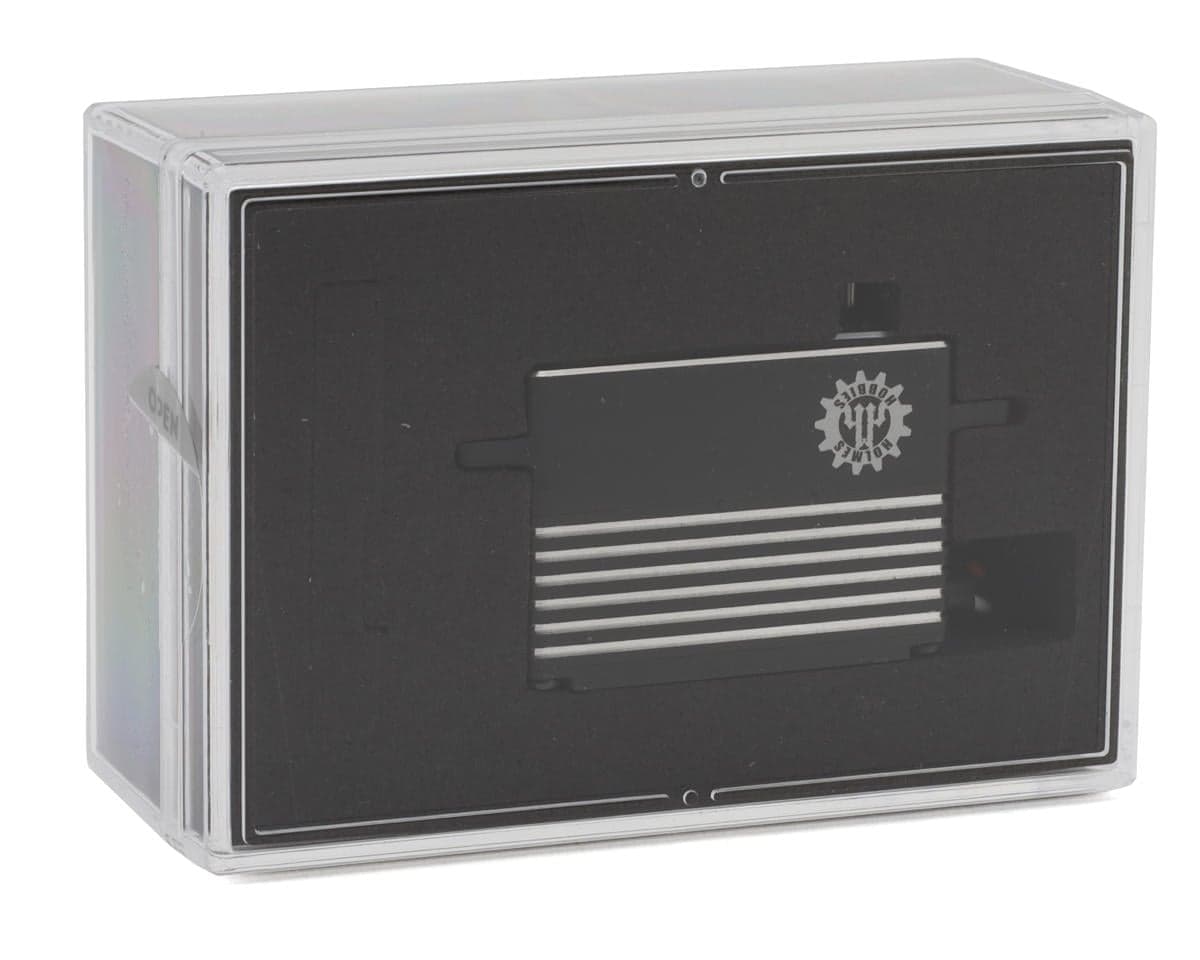

- (1) SHV650LP HV Low Profile Direct Power Crawler Brushless Servo

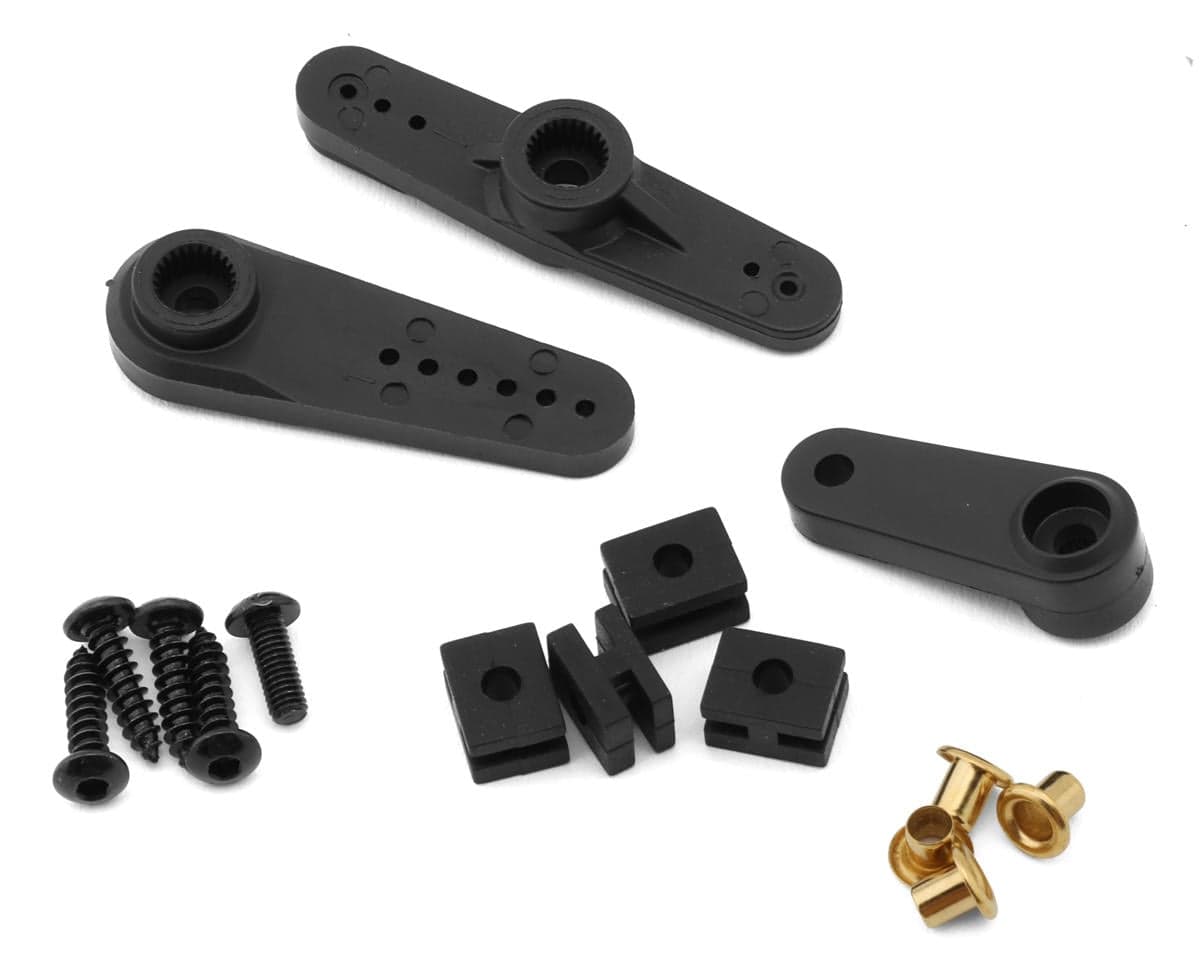

- Composite Servo Horns and Hardware
Reviews1.7 · 6 reviews
stopped working within a few hours. can’t recommend, returned it.
The first day used the servo was working fine then just started smoking and quit working. Servo end points were adjusted properly and supply voltage and amps were correct. Contacted Amain through chat they did not do anything waste of time sent me links to contact Holmes. Emailed Holmes zero response, he’s probably too busy making YouTube videos to worry about customers. It’s ok this is just a servo no big deal however word travels fast in RC community.
Bought ther servo used it once and it burnt up I contacted Holmes and sent the servo back for warranty they said they’d replace it under warranty that was over A MONTH AGO I’ve emailed several times and no reply still waiting on the warranty replacement but so far I have a bad taste in my mouth with Holmes right now
This servo does not work. I am trying to return it and amain is not giving me a return option. This time is warranted for 1 year so i dont know what the problem is. I have bought many things from Amain so im very upset. I have already purchased a replacement. Think twice before ordering from a main hobbies.
Got this servo a while back. Worked fine for a couple runs. Was using it during a run and was working fine. Changed out the battery and went back out a few moments later and it all of a sudden stopped working.. very disappointed.. i expected better from Holmes. And from looking at other reviews, it seems like this product should be discontinued
Reviewers report that this servo failed in use for most buyers, typically after a few hours or a few runs, with some describing smoking or a burnt-out unit. Several say the servo stopped working despite correct endpoints and voltage. Those who had failures describe difficulty with warranty handling, including unanswered emails, delayed replacements, and a return option not being offered by the seller. One five-star reviewer reports strong, reliable performance across four crawlers on 4S power with a 500mAh LiPo. The reviews are mixed, but the failures are the dominant theme. Only one reviewer reports positive experience, and the sample is small.
- + Strong torque and speed
- + Low profile fit
- + Handles 4S power
- − Failed within hours or a few runs
- − Reported smoking or burnout
- − Warranty replies slow or absent
- − Seller return option unavailable
