About this part

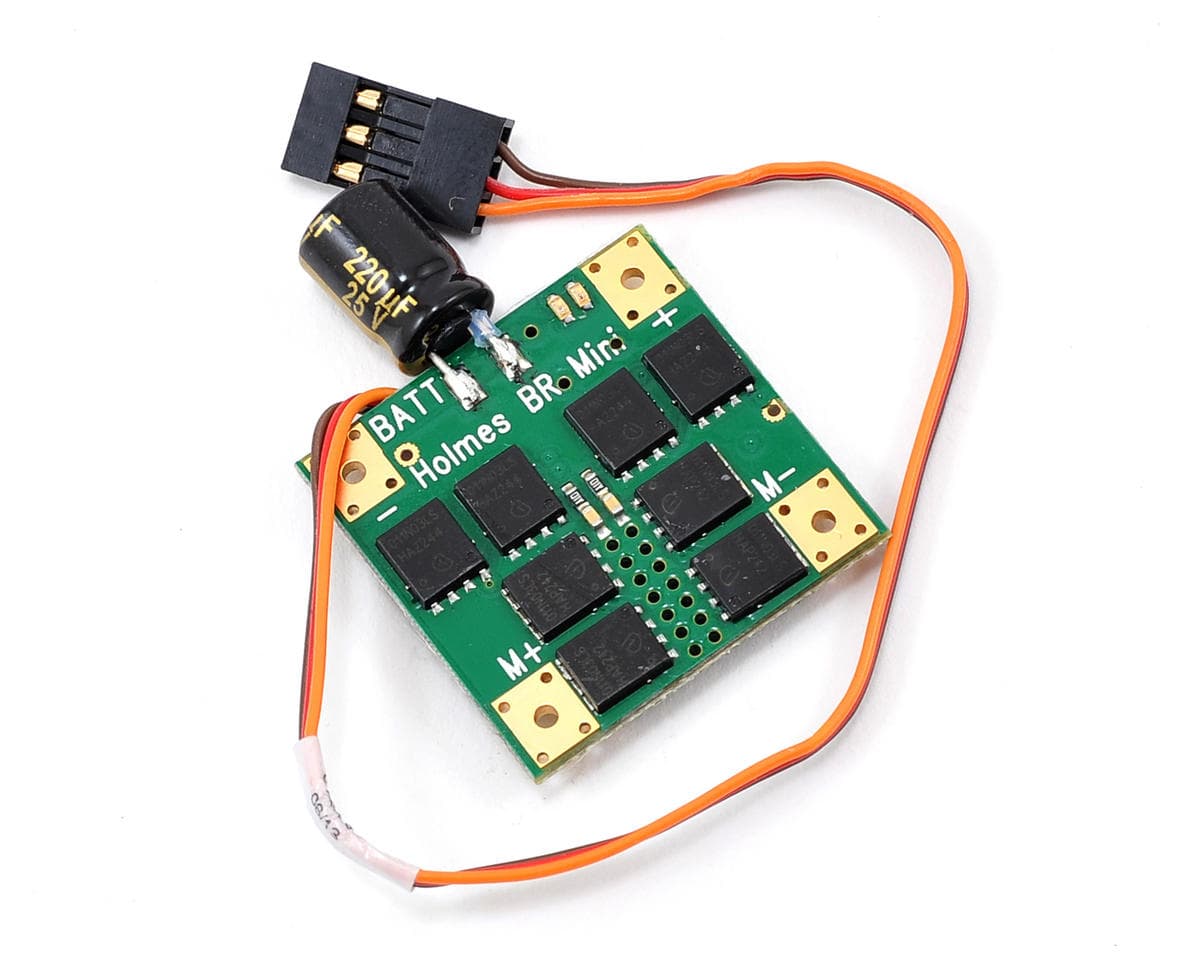

This is a Holmes Hobbies TorqueMaster BR Mini Brushed ESC, intended for competitive Rock Crawling and 30A or less robotic use. The TorqueMaster BR Mini is the shrunken version of the BR-XL. No case, no heatsink, and a smaller footprint. Perfect for weight conscious crawlers, off road trucks, robotics, servomotor and winch use. It has been designed from scratch to meet the rigorous demands of low speed control and high torque density. The BR Mini comes stock with Auto LiPo LVC, Full drag brake, instant reverse, and 100% reverse throttle settings.
Features:
- Reverse and Brake Adjustment
- Throttle and Brake Curve Adjustment
- Regenerative Drag Brake
- Active Hold Brake (The Holmes Hold!)
- Quiet Mode
- 1 Year Manufacturer Warranty
- Stick and Castle Link programming Compatible
Specifications:
Input: 6V to 25V (external BEC suggested for all installations)
Continuous/Burst Amps: 30A continuous, 80A burst
BEC: 6V 0.5amp Linear BEC @ 7.4V input
Dimensions: 28x28x6mm PCB
Weight: 8 grams (without wires)
Motor Type: Brushed only
Note: This is a high performance product, not a stock replacement part intended for a specific vehicle. As such, you will need to find your own system limits for each system. Happy tuning.
