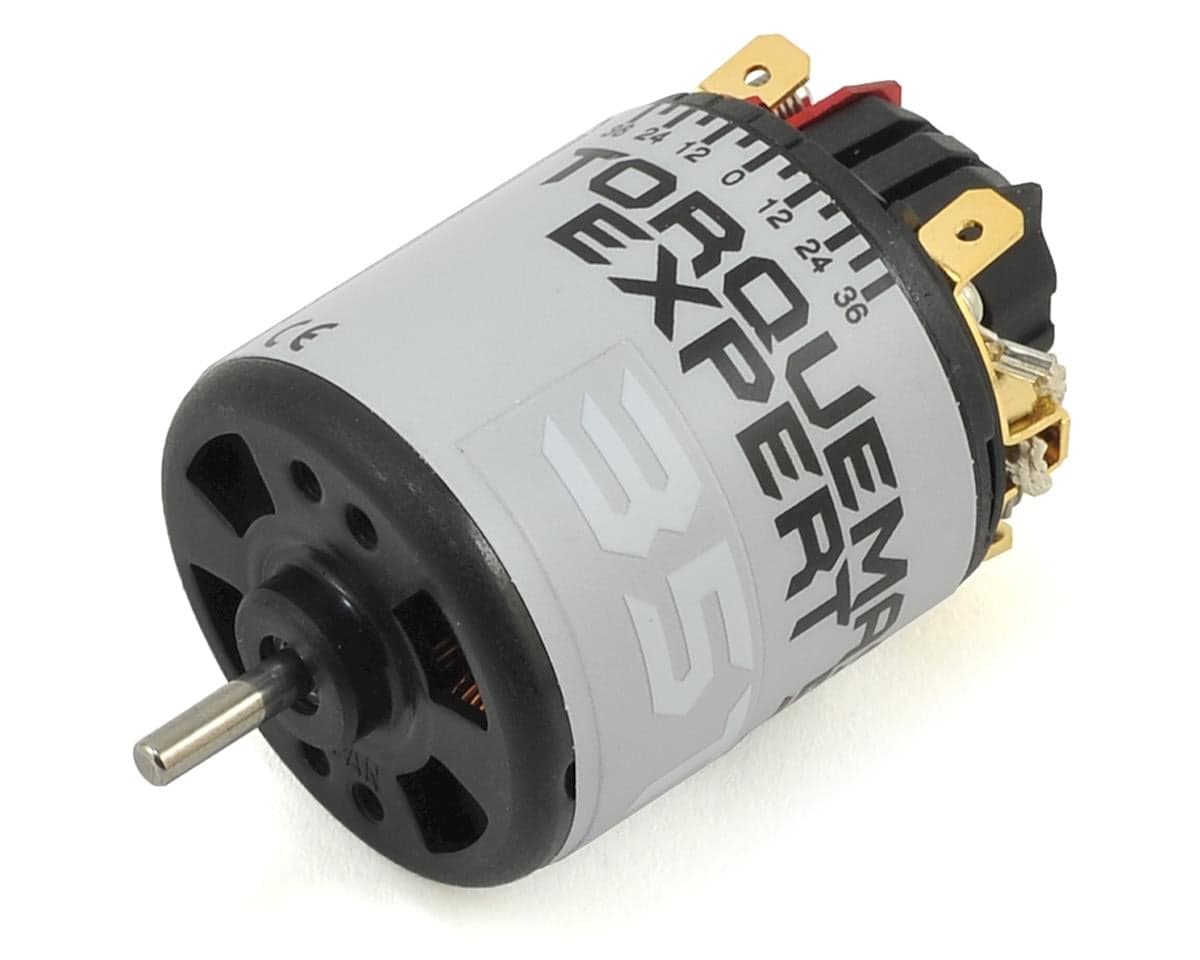

Holmes Hobbies TorqueMaster Expert 540 Brushed Electric Motor (35T)
Part # HHB1101000085.0(1)
Where to buy
$57.49
Prices are as last seen at the store; stock is not tracked.
About this part
This is the Holmes Hobbies TorqueMaster Expert 35 Turn 540 Brushed Electric Motor. When you need a quality brushed motor, look no further than the TorqueMaster Expert 540 from Holmes! The Expert series features quality construction and a machine wound armature for an affordable alternative that won't break the bank.
Features:
Features:
- Machine-Wound Armature

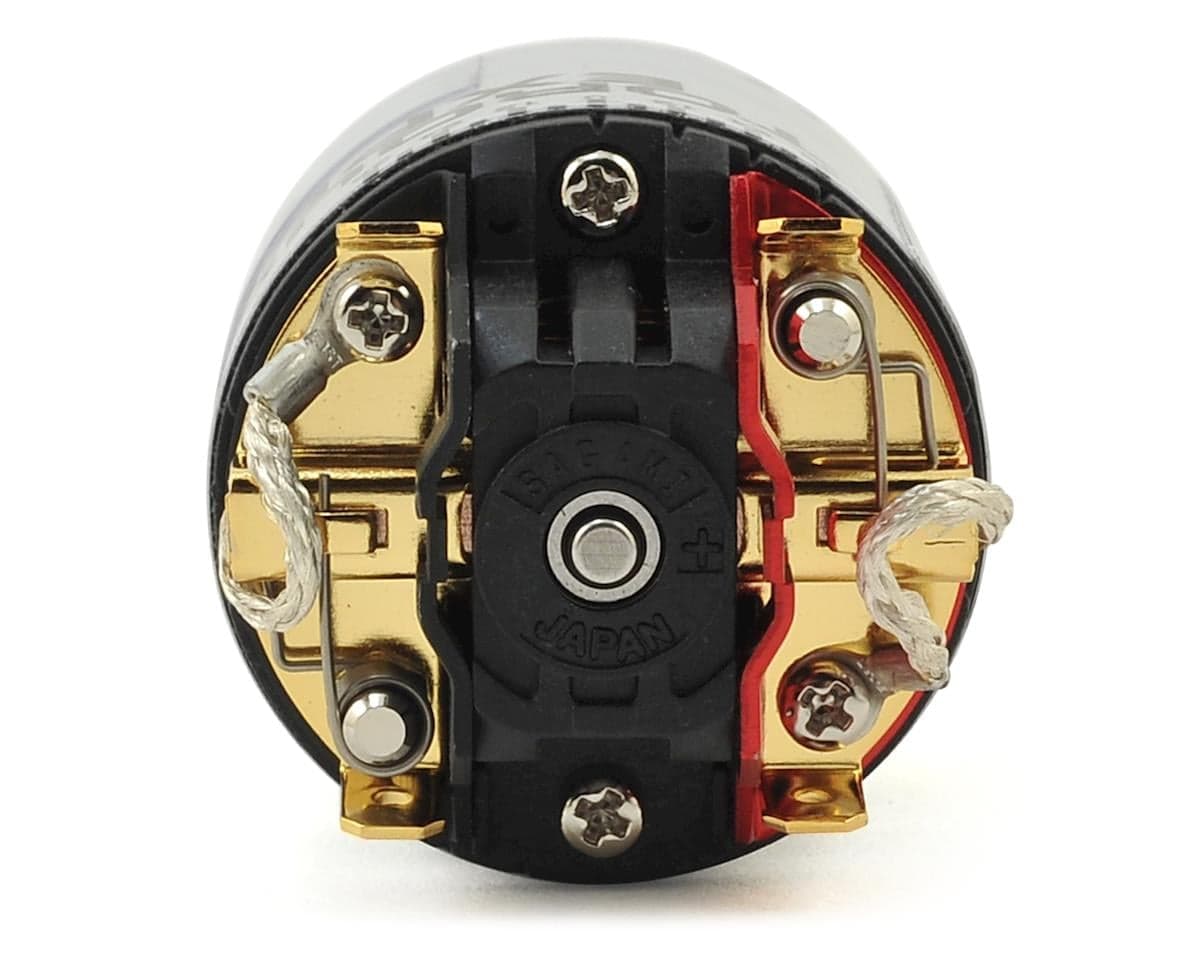

- Standup Brush and 7.5mm Comm- Maximizes power and motor longevity
- Gold plated copper brush hood to resist corrosion and provide lowest resistance
- 4mm web 3 slot armature- Maximizes power and RPMs
- 1.4mm thick can features minimal venting and two high-power FB9 wet magnets to maximize torque and efficiency
- Dual Ball bearings
- Adjustable timing
- 0.55mm Extra Heavy springs for consistent drag brake
- 729 type soft brushes for high torque and long motor life
- Broken in for immediate installation and use
- Every motor carries a 30 day manufacturers warranty to cover manufacturing defects.
- 35T = 1450 rpm/volt: Motor speeds taken from averaged lots at 7 volts, zero timing with no load
Reviews5.0 · 1 review
Branden ParishVerified owneron Holmes Hobbies TorqueMaster Expert 540 Brushed Electric Motor (35T)
Put this in my scx10iii Gladiator w/ 11t 32p pinion gear and 25% overdrive gears in place of my 55t HH trail master and absolutely love it. The trail master was great, I mean really great, had no issues however wanted to try something else and im really happy with the performance. Huge fan of H.H!!! Update!!!! I hate to say it but this motor is garbage had about 10 hours on it and it completely smoked I mean totally fried Super disappointed with holmes hobbies.
2 found this helpful
Builds using this part
No builds use this part yet — add it to yours from the build editor.
