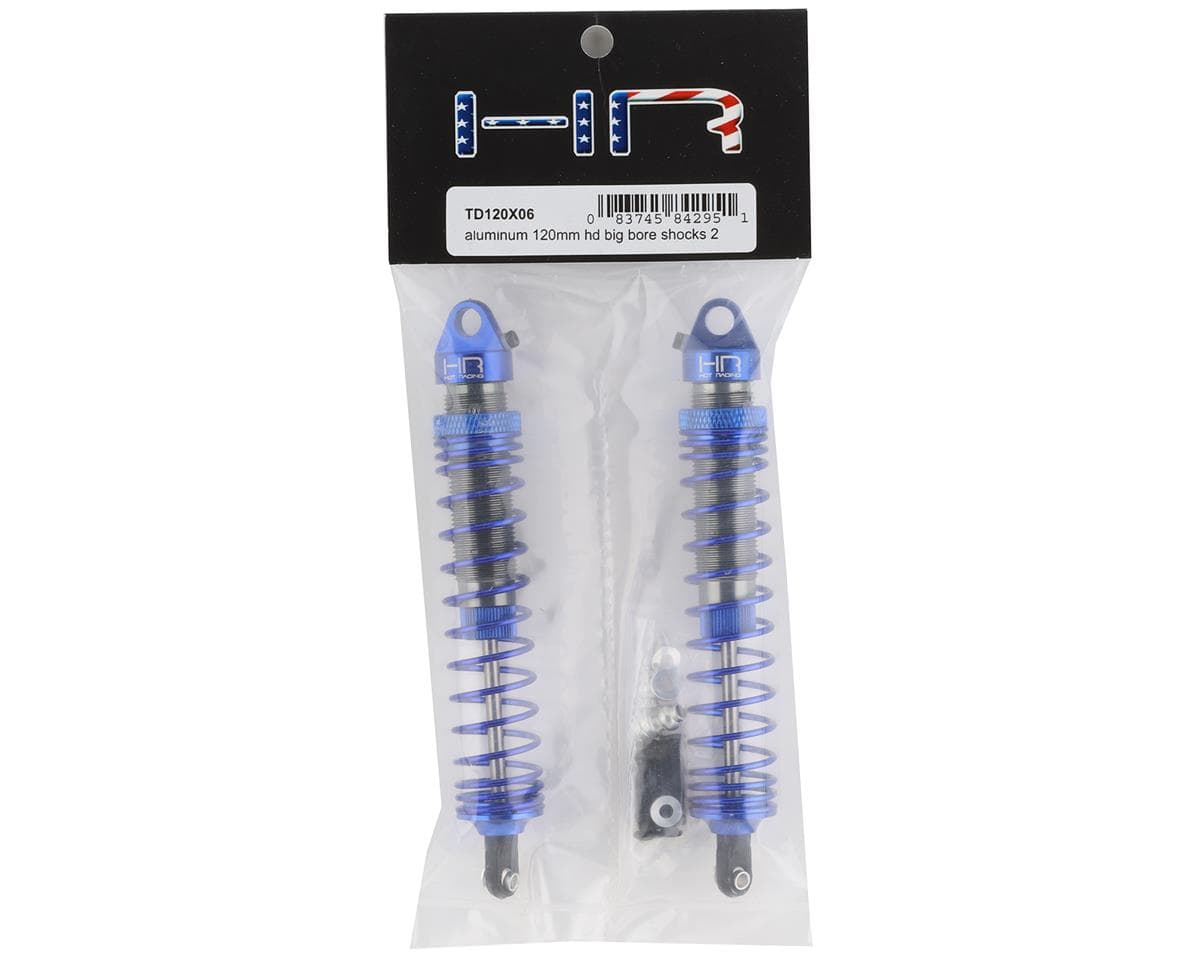

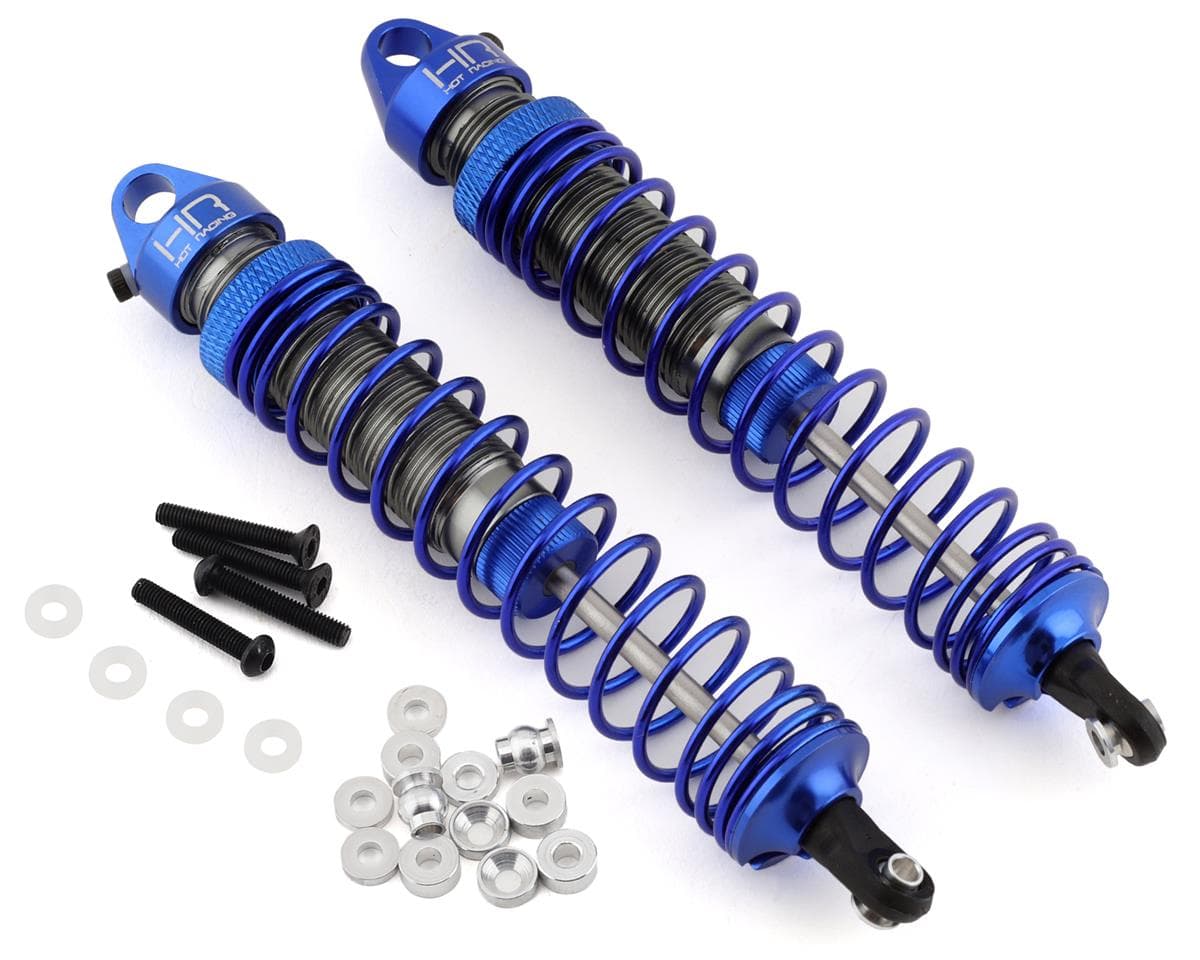

Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks (2)

Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks. These 120mm big bore threaded body aluminum shocks fit many 1/10th scale off-road vehicles that use 120mm shocks.

Features:

• CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
• Big Bore threaded shock bodies
• CNC machined 11mm Delrin pistons
• 3.5mm stainless steel shock shafts
• Gunmetal and blue anodized aluminum components
• Vented shock caps with bladder seals for consistent rebound dampening
• Threaded shock collars with o-rings to prevent unwanted movement
• Composite plastic lower shock ends with aluminum balls
• Fully assembled, just add shock oil and bleed

NOTE:

• Requires silicone shock oil and bleeding per the typical bladder shock bleeding procedure
• Best used with shock o-ring grease when rebuilding lower seal
• Requires snap ring pliers when rebuilding lower seal
• Use spacers as need for installation

Specifications:

Extended length: 120mm

Compressed length: 75mm

Overall length: 130mm

Diameter: 19mm

Spring: ~5.0lb/in, 1.54mm wire, 16 turn dual rate, 19.3mm OD, 73mm long

Includes:

• (2) assembled shocks
• (2) M3x20mm flat head cap screws
• (2) M3x18mm button head cap screws
• (2) 3mm countersunk washers
• (2) 5.9 hollow balls
• (4) 1.5mm thick spacers
• (4) 3mm thick spacers
