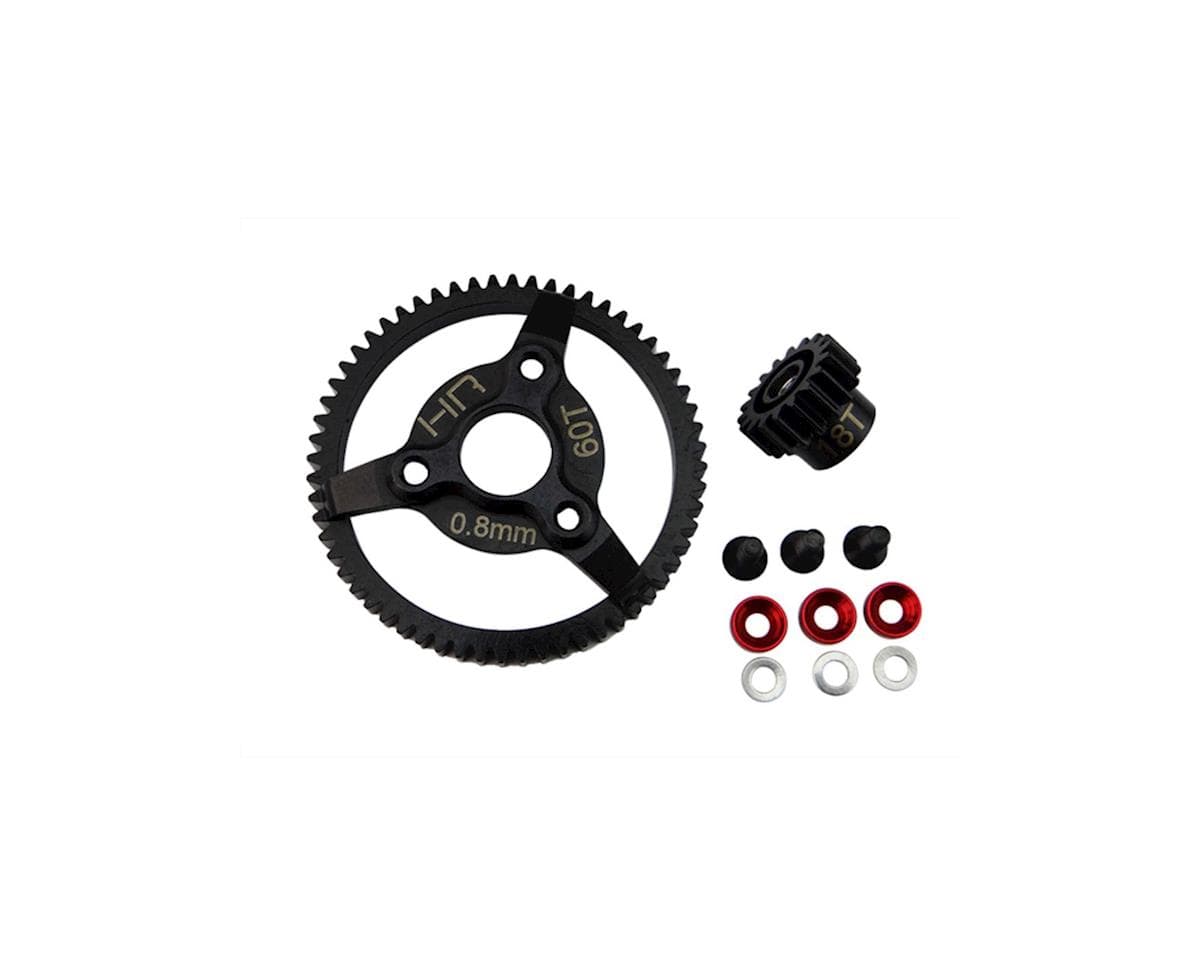

Hot Racing 32P Steel Pinion & Spur Gear Set (Red) (18T/60T) For Slash, Rustler, Stampede, Bandit
Part # HRASTE260
Where to buy
$24.88
Prices are as last seen at the store; stock is not tracked.
About this part
This is the Hot Racing 0.8MOD 32P Brushless Steel Gear Kit, featuring light weight hardened steel 18T/60T 32 pitch pinion and spur gear set for the Traxxas Bandit, Rustler, 2WD Slash, and 2WD Stampede.
Features:
- CNC machined and lightened hardened steel construction
- Replaces stock nylon spur gear
- Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
- Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts
- Black oxide coated gear for durability and corrosion resistance
- Red anodized countersunk aluminum washers
- High strength hardware
Includes:
- (1) 18 tooth 32 pitch (0.8 Mod) pinion gear
- (1) 60 tooth 32 pitch (0.8 Mod) spur gear
- (3) mounting screws
- (3) red anodized countersunk washers
- (1) pinion adapter sleeve
- (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)
Specifications:
Number of Teeth: 18T/60T
Gear Pitch: 32 pitch (0.8 module)
Mounting Holes: 3
Tooth Face width: ~5mm
NOTES:
- Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
- Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
