Hot Racing Arrma 4x4 Fixed Link Steering Servo Saver
Hot Racing

Hot Racing Arrma 4x4 Fixed Link Steering Servo Saver

Part # HRAATF48SH023.5(6)
Where to buy
$18.88
AMain Hobbies
Seen Oct 12, 2026
$18.88Buy
Prices are as last seen at the store; stock is not tracked.

About this part

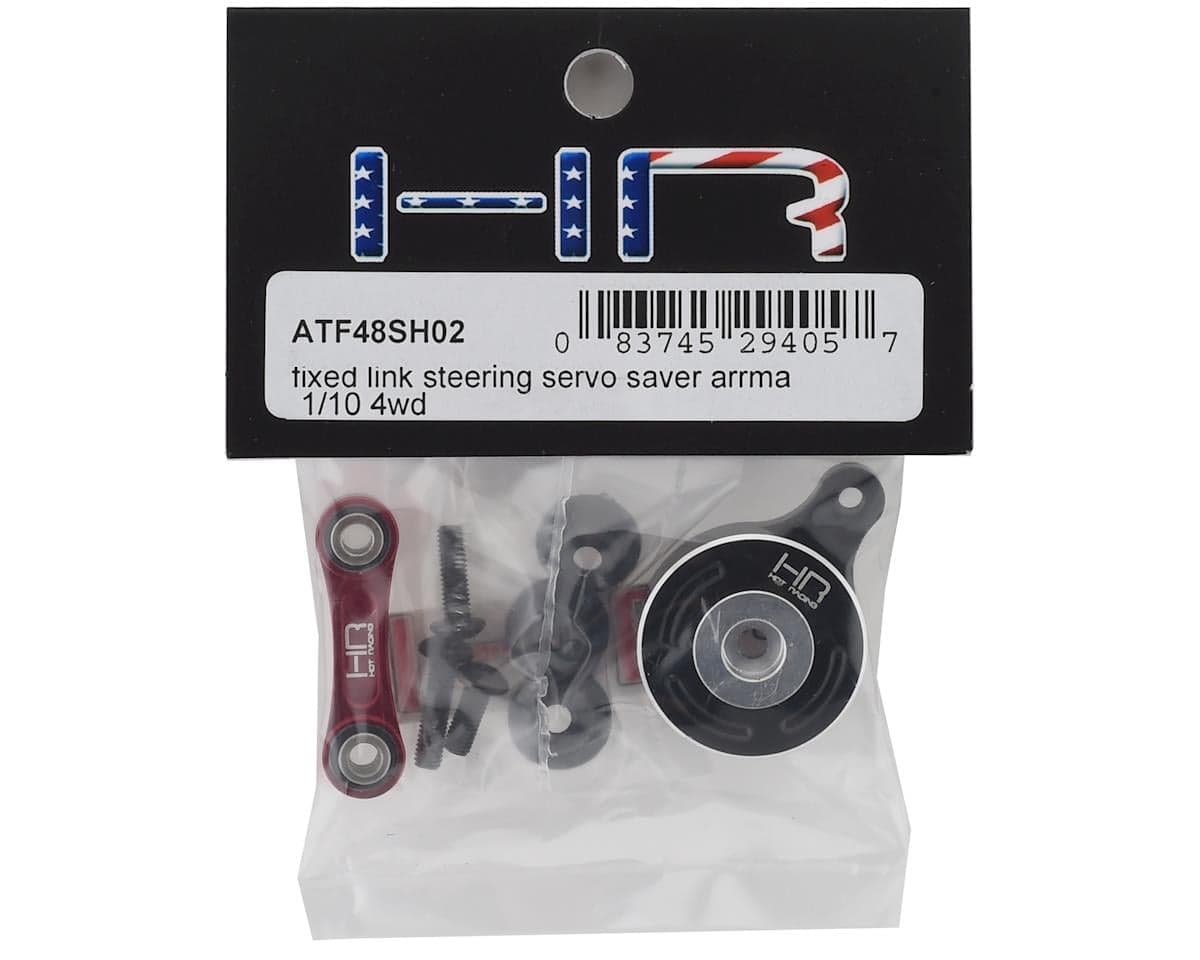

This is an optional Hot Racing Arrma 4x4 Fixed Link Steering Servo Saver, an aluminum servo saver with Fix Link steering for Arrma 1/10 Steering applications.

Features:
  • CNC 6061-T6 aluminum construction
  • Black anodized
  • Multiple inserts to accommodate many different servo splines
Specifications:
Length: 34mm
Diameter: 23mm
23 tooth (KO, Sanwa, JR, Airtronics, Spektrum)
24 tooth (Hitec)
25 tooth (Futaba, Traxxas, SAVOX, Tactic, new Hitec)

Includes:
  • (1) Aluminum Fix steering link.
  • (1) Servo saver
  • (1) Spline adapters for 23 tooth (KO, Sanwa, JR)
  • (1) Spline adapters for 24 tooth (Hitec)
  • (1) Spline adapters for 25 tooth (Futaba)

Reviews3.5 · 6 reviews

Jonathan HogueVerified owneron Hot Racing Arrma 4x4 Fixed Link Steering Servo Saver

This is a chintzy product and I'd feel morally and ethically remiss if I gave it anything above 3-of-5 stars. I feel that the rating I gave is more than generous. The poor build quality of the fixed link servo saver is horrendous; it looks awesome, which is nice, but that's something many of us have come to expect from HR. In my opinion, that's the O-N-L-Y high-point of this part. The longevity of the steering link is lacking to the nth degree. The tiny rubber gaskets that fit in the flanged pivot balls rip during installation so I never got one working between two separate vehicles. I put the first on an Arrma Vortkes 3s BLX and it lasted a couple of runs before popping off the servo saver itself. I contacted Hot Racing directly and they don't sell those little washers as a replacement. Either way, if they offered replacements it wouldn't matter given the poor quality overall. They're so weak it's surprising. The fix for me was installing Arrma 4x4 pivot balls, the stock ones, which served to get rid of the aluminum ones that come with the part (ARA330515). I HIGHLY RECOMMED THIS CUSTOM ADDITION; get rid of the aluminum ones with weak ass gaskets that come with the part right away. That customization made the part operate much more smoothly and has been strong thus far. A tiny amount of Loctite in the servo arm screw and servo saver holes goes a long way. Centering this part is a challenge and the turning radius is negatively impacted. It can't hug tight corners unless you take a line far outside of the hairpin and fall back into the fault line. This feature is lacking compared to A-L-L of my other buggies. I gave it my best effort but I believe the stock setup or competitors' servo saver and arms would prove to be a better setup, but it can be somewhat challenging to track down different setups, which is against the norm for the Arrma line of vehicles. To summerize, the part fell short of my expectations in a big way. Hopefully, regarding my customization/s, it'll prove to be a better setup over time. I update my reviews, so we'll see what transpires. If it explodes I'll check back in and if it performs at the track, I'll share that too!

2 found this helpful
Alexander MagarianVerified owneron Hot Racing Arrma 4x4 Fixed Link Steering Servo Saver

Metal parts seem ok but the plastic insert stripped on first run.

1 found this helpful
Gabriel Bon Hot Racing Arrma 4x4 Fixed Link Steering Servo Saver

Seems good on my Mojave 4s. I haven’t yet had issues with the adapter stripping, but I’ve only had it a month, so it might still strip later. The connecting link/gasket setup seems questionable, however it works great and doesn’t seem to have much slop.

Malik Hansenon Hot Racing Arrma 4x4 Fixed Link Steering Servo Saver

Plastic insert stripped making it useless. Seems shortsighted to make an rigid aluminum 'upgrade' when the weak link remains the same.

John CainVerified ownerMay 16, 2024on Hot Racing Arrma 4x4 Fixed Link Steering Servo Saver

Great for my outcast 4s. The connecting link is garbage but the servo saver itself works great. I’ve read some issues with hot racing servo savers, the spring will get hung up inside. I have several I use on other models as well I put a drop of bearing oil in each hole before use and I have had zero issues with every one I use. Just a tip take it or leave it. Thanks A main

What reviewers say

Reviewers generally find the Hot Racing Arrma 4x4 fixed link servo saver works well on their vehicles and appreciate its looks and the aluminium upgrade over stock. The most consistent complaint is that the plastic insert or adapter stripes or strips, with several reviewers reporting failure on the first run or after a few bashes. Reviewers also criticise the connecting link and rubber gaskets, which some say tear during installation or fail quickly. One reviewer notes the saver does not fit without an adapter. Opinions are mixed, with ratings from 2 to 5 stars, and some reviewers report no problems with the part after a month of use.

  • + Works well and reduces slop
  • + Looks good
  • + Upgrade over stock servo saver
  • + Aluminium construction
  • − Plastic insert or adapter strips
  • − Connecting link and gaskets are weak
  • − Gaskets tear during installation
  • − Needs an adapter to fit
Summary generated from the reviews above.
