Parts/Electric power/Motor parts/Hot Racing Clip-On Two-Piece Motor Heat Sink w/Fan (Orange) for Traxxas
Hot Racing

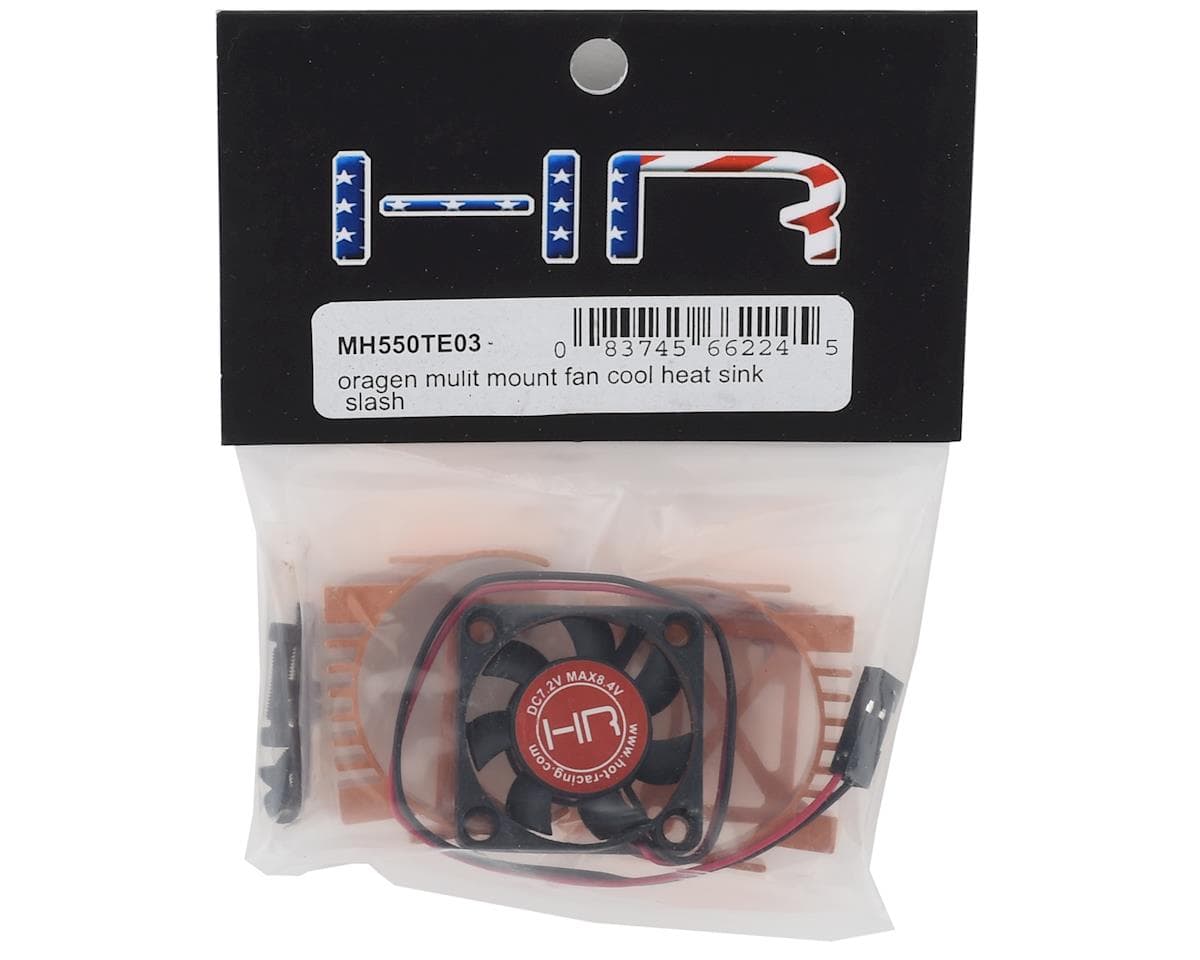

Hot Racing Clip-On Two-Piece Motor Heat Sink w/Fan (Orange) for Traxxas
Part # HRAMH550TE035.0(1)
Fits
Where to buy
$12.88
Prices are as last seen at the store; stock is not tracked.
About this part

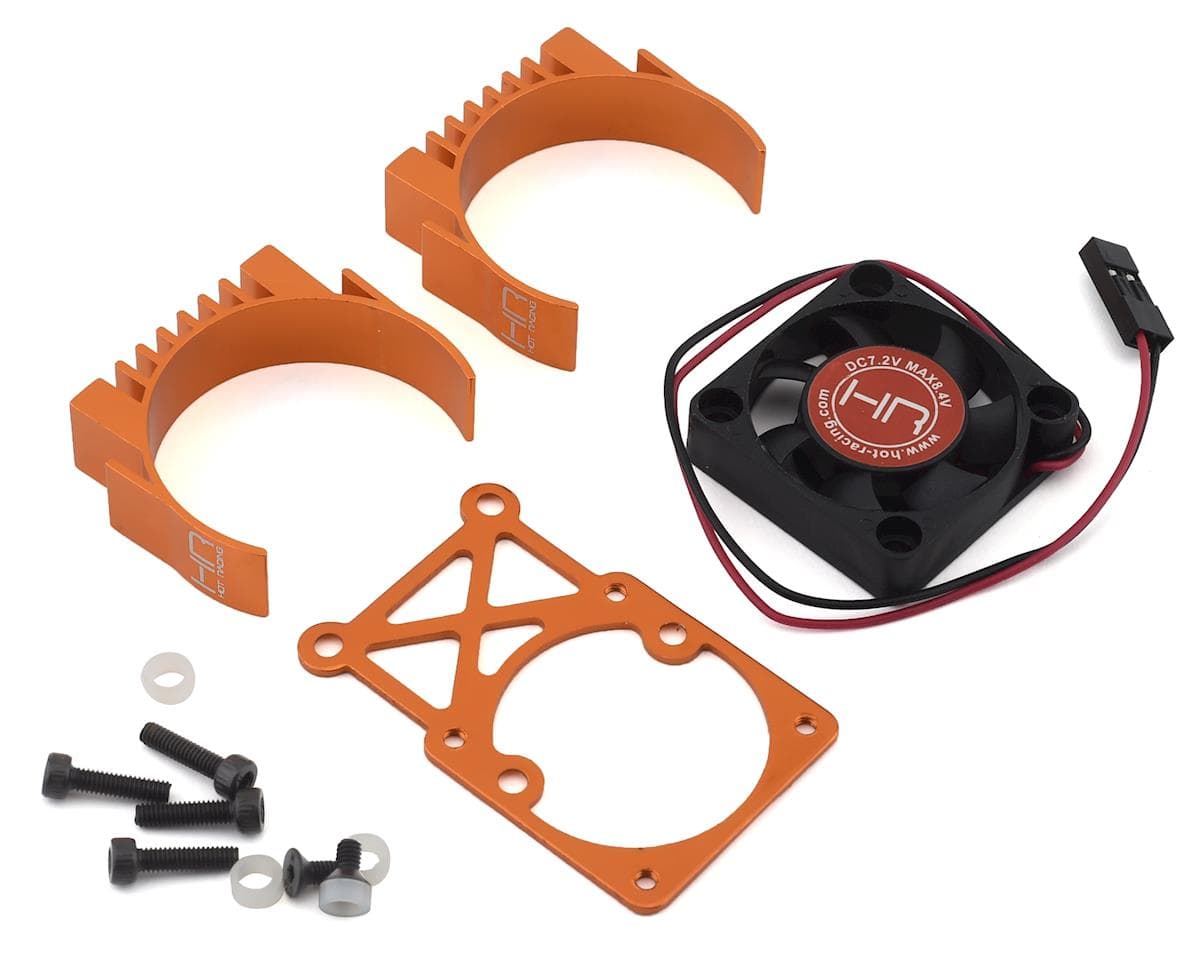

This is a Hot Racing Clip-On Two-Piece Motor Heat Sink with Fan, a universal clip on motor heat sink and fan for use on 540 and 550 size motors. Versatile two-piece heat sink clip provides eight different width adjustments.
Features:
- Keeps the motor running cooler
- Aluminum construction
- Clip on heat sink attaches to 540 and 550 size motors with a 36mm can diameter
- Two-piece heat sink clip provides 8 different width adjustment options (20-40mm). M3 screws and nuts will be required for some configurations.
- Orange anodized
- Laser etched Hot Racing insignia
Specifications:
Overall height: 39mm (1.54 inch)
Fan size: 30x30x7.5mm
Fan mounting hole pattern: 24mm square
Input voltage: DC 7.2-8.4V MAX
Reviews5.0 · 1 review
Michael WestmorelandVerified owneron Hot Racing Clip-On Two-Piece Motor Heat Sink w/Fan (Orange) for Traxxas
Works great! Motor temp driving around the yard seems good so far. Will update review after a few trips up in the hills. It did come with a hole in the package and was missing one of the longer screws. Pretty sure it was just because of other items in shipping package might've rubbed against it. Nothing that a quick trip to the hardware store and fifteen cents couldn't fix.
