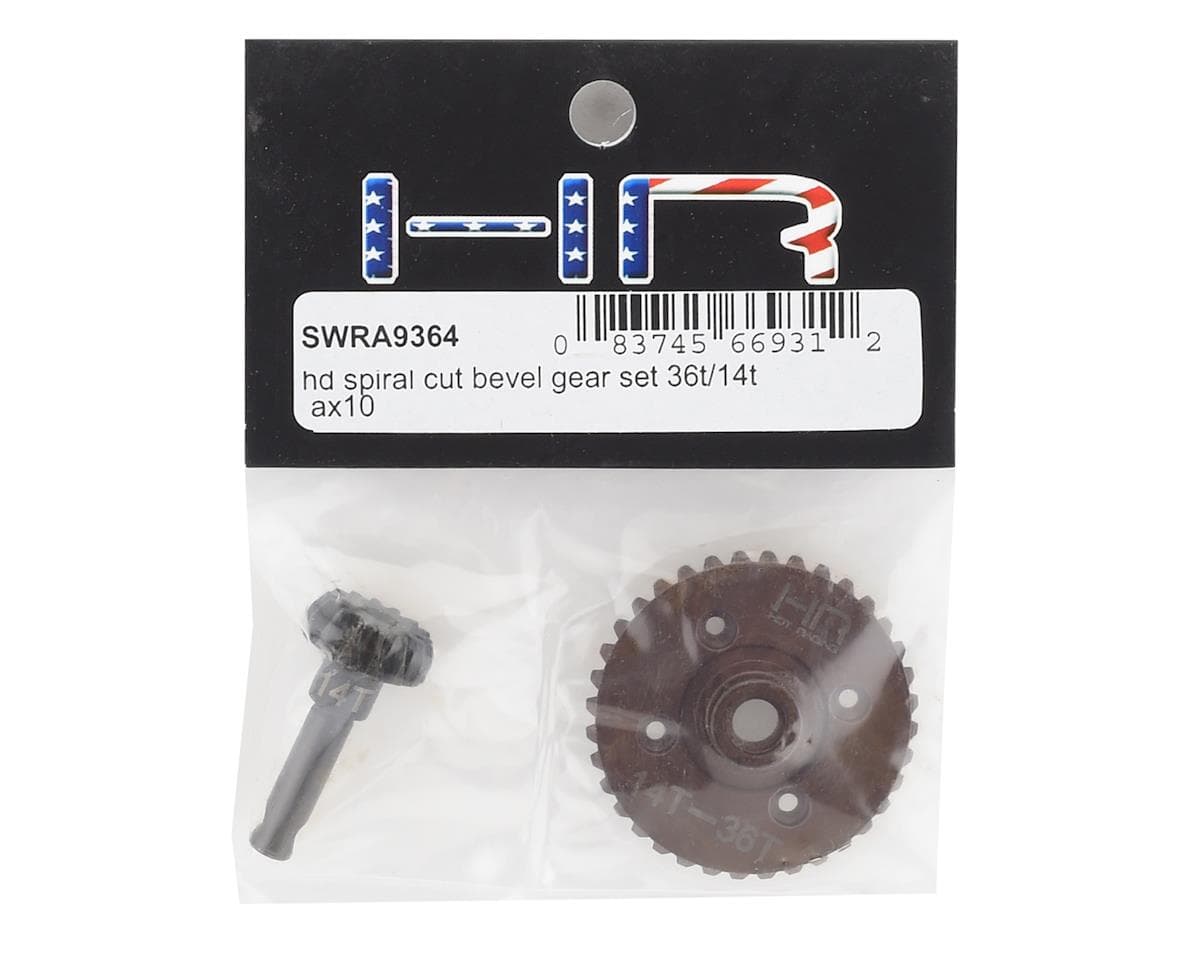

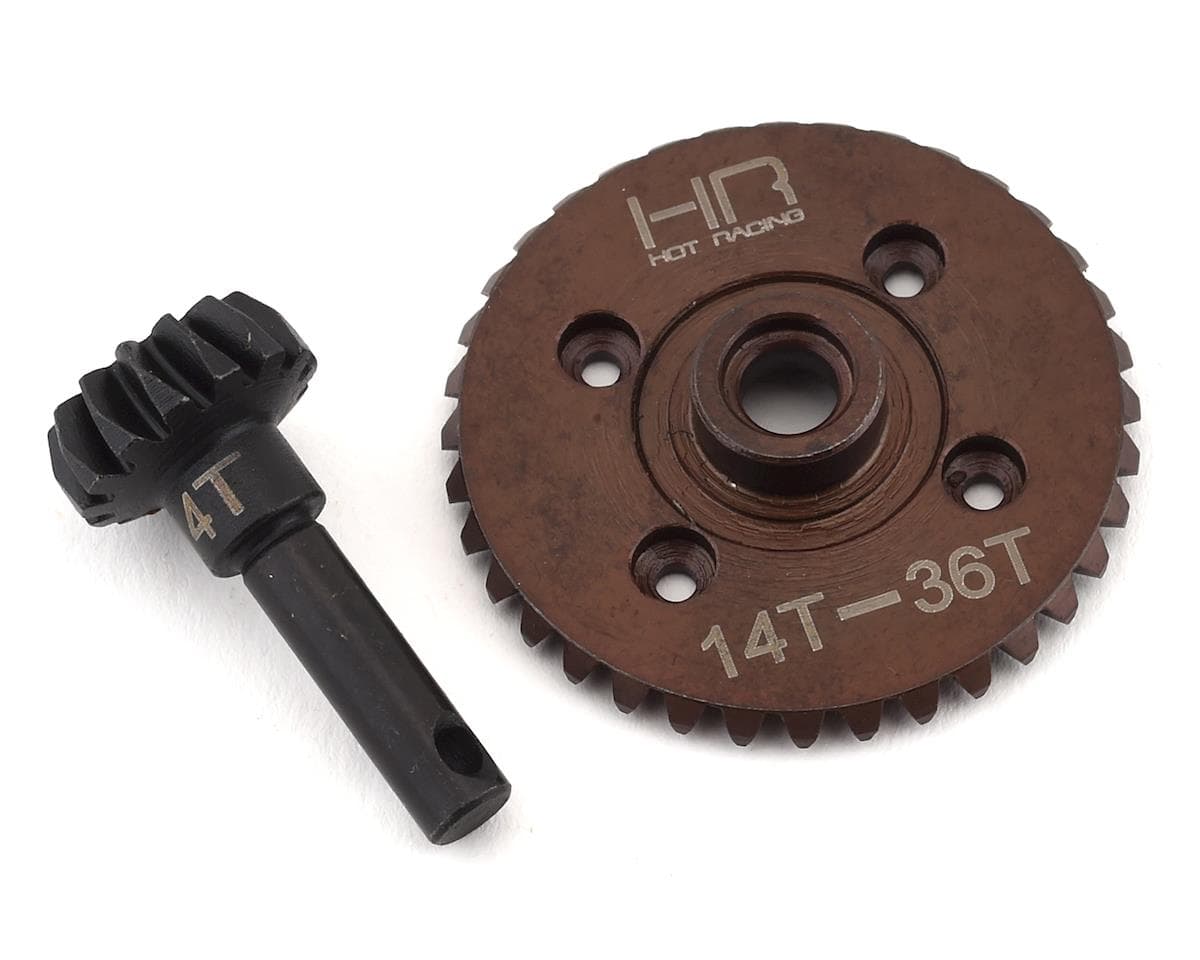

Hot Racing HD Spiral Cut Bevel Gear Set (36T/14T) (AX10)

This is the Hot Racing Spiral Cut Bevel Gear Set for the Axial AX10, Wraith Ridge Crest and EXO Series.

Features:

• Precision machined helical spiral cut gears offer inherently greater strength and smooth operation than the factory bevel cut gears
• High carbon steel construction
• Stronger than the stock bevel-cut zinc cast gears
• 36T/14T provides 12% overdrive (vs stock 38T/13T) increases the wheel speed and is commonly used in the front end for digs
• Works on front or rear. Use cases are typically front and rear at the same time, or front only to increase front digs

Requires:

• Installation following kit manual
• One M3x2.5x11mm (Axial AXIA0175 or Hot Racing SSP311) or M3x2.5x12mm (Axial AXIA176) screw shaft for driveshaft attachment
• Do not use the stock M3x3mm setscrew (Axial AXA180), if originally equipped.
• Medium threadlock (e. g. blue Loctite) if screws are threaded into metalHot Racing SPL10G05 high temp grease recommended

Comments:

• Replaces Axial AXI30392 38/13T bevel-cut zinc cast gears
• Hot Racing gear set options include: HRASWRA9364 (36T/14T overdrive ratio), HRASWRA9383 (38T/13T stock ratio), HRASWRA9433 (43T/13T underdrive ratio)
