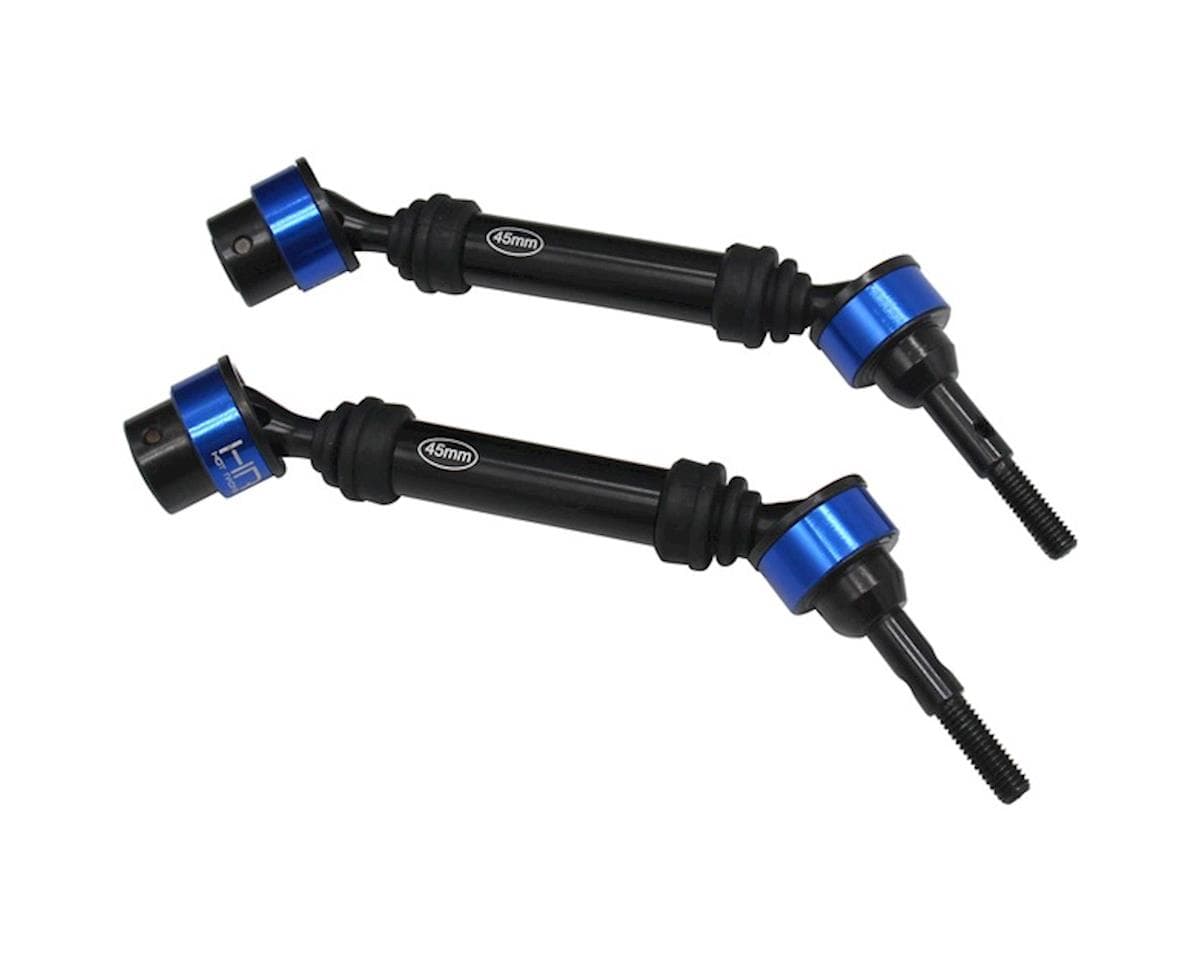

Hot Racing Traxxas Maxx Metal CV Splined Drive Shaft (Blue) (2)

The Hot Racing Traxxas Maxx Metal CV Splined Drive Shaft is an optional heavy duty splined star drive CVD axle kit that fits the front or rear of the Traxxas 1/10th scale Maxx monster truck.

NOTE:

• Traxxas WIDE Maxx applications require optional 65mm center drive tube (HRASLD65T)
• Must re-use the stock Drive pin and set screw Pin
• Maintain CV joint and shaft spline with grease
• Use medium thread lock on screws threading into metal

Features:

• CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle
• CNC machined aluminum slider tube
• Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
• Rubber dust cover boots
• Replaces factory front or rear driveshaft axles

Specifications:
Collapsed length (overall): 140mm
Extended length (overall resulting in zero shaft engagement): 156mm
Collapsed length (wheel pin to outdrive pin): 118mm
Extended length (wheel pin to outdrive pin resulting in zero shaft engagement): 132mm

Includes:

• (2) splined axle assemblies
