About this part
ESC Overview:
Unleash full-throttle action in any weather with the FLX10-3S802 Flux ESC, waterproof, powerful, and ready to push your 1/10 rig to its limits with up to 80 amps of brushless performance.
About the FLX10-3S802 Flux ESC
waterproof Brushless Power

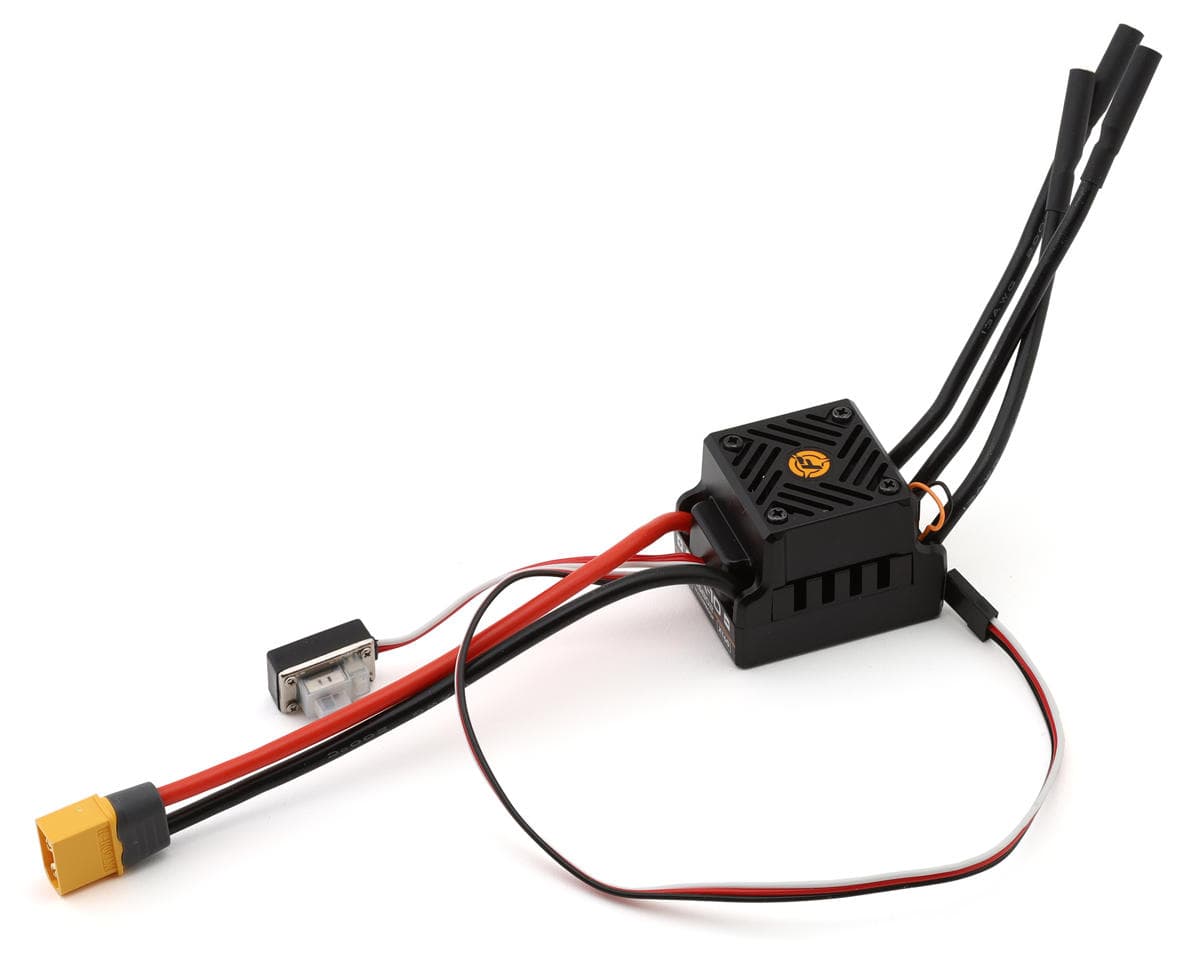

The HPI FLX10-3S802 Flux ESC is a rugged, high-performance electronic speed controller designed to deliver up to 80 amps of sensorless brushless power to your 1/10 scale vehicle. Whether you're chasing big air or high-speed drifts, it’s built for thrilling action with support for 2S–3S LiPo batteries. A built-in cooling fan under a protective cover keeps temps in check, even during intense runs, while full waterproofing lets you tear through mud, puddles, and wet terrain without worry. Featuring an XT-60 connector and compatibility with the Hobbywing LED Program Card, it's a versatile, reliable ESC built for bold performance.
Features:
- Water resistant design
- Delivers up to 80 amps of power
- Fits most 1/10 scale vehicles
- Built-in cooling fan with protective cover
- Compatible with 2S–3S LiPo batteries
- Universal XT-60 connector
- Ideal for on- and off-road use
- Programmable with Hobbywing LED card
Includes:
- (1) FLX-10 3S802 Flux Sensorless Brushless ESC
Specifications:
| Suggested Application | 1/10 On-Road & Off-Road |
|---|---|
| Type | Brushless Sensored |
| Continuous Current | 80A |
| Input Voltage | 2-3S (7.4-11.1V) |
| Input Voltage | 2-3S (7.4-11.1V) |
| BEC Voltage | 6V Switchable, 3A Continuous Current |
| Battery Connector | XT60 |
| Motor Connector | 4mm Bullets |
| Dimensions | 46x36.5x35.5mm |
*Tech Note: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (Fans mounted on speed controllers are not water resistant)
