HPI FLX16-3S30-WP Flux 30A Waterproof Sensorless Brushless ESC (2-3S) w/XT-30 Connector
About this part
ESC Overview:
Take control of your RC power with the HPI FLX16-3S30-WP Flux ESC, a compact waterproof brushless speed controller built for serious performance, delivering reliable punch, smooth control, and all-weather confidence for high-energy driving and stunts.
About the FLX16-3S30-WP Flux ESC
Compact Power Control
The HPI FLX16-3S30-WP Flux ESC is a compact and powerful speed controller designed for small-scale RC vehicles, supporting 2–3S LiPo setups and 30A continuous current output. It is ideal for touring cars, monster trucks, and other models using 20 or 24-size brushless motors, delivering smooth and efficient sensorless brushless control in a lightweight 38.5g package.
All Weather Performance
Built with full waterproof protection, the FLX16-3S30-WP lets you run confidently through puddles, mud, and harsh terrain without worrying about damage. It pairs perfectly with high-performance motors like the FLX16-2435-4500KV for stunts such as backflips, high-speed runs, and wheel-spinning action, while also offering features like a 6V/2A BEC, XT-30 connector, and Hobbywing LED program card compatibility for easy setup and tuning.
Features:
- Compact brushless ESC designed for small-scale RC vehicles
- Supports 2–3S LiPo battery operation
- Delivers 30A continuous current output
- Fully waterproof for all-weather driving
- Compatible with 20 and 24-size brushless motors
- Includes XT-30 connector and 6V/2A BEC output
Includes:
- (1) FLX16-3S30-WP Flux 30A Waterproof Brushless Sensorless ESC

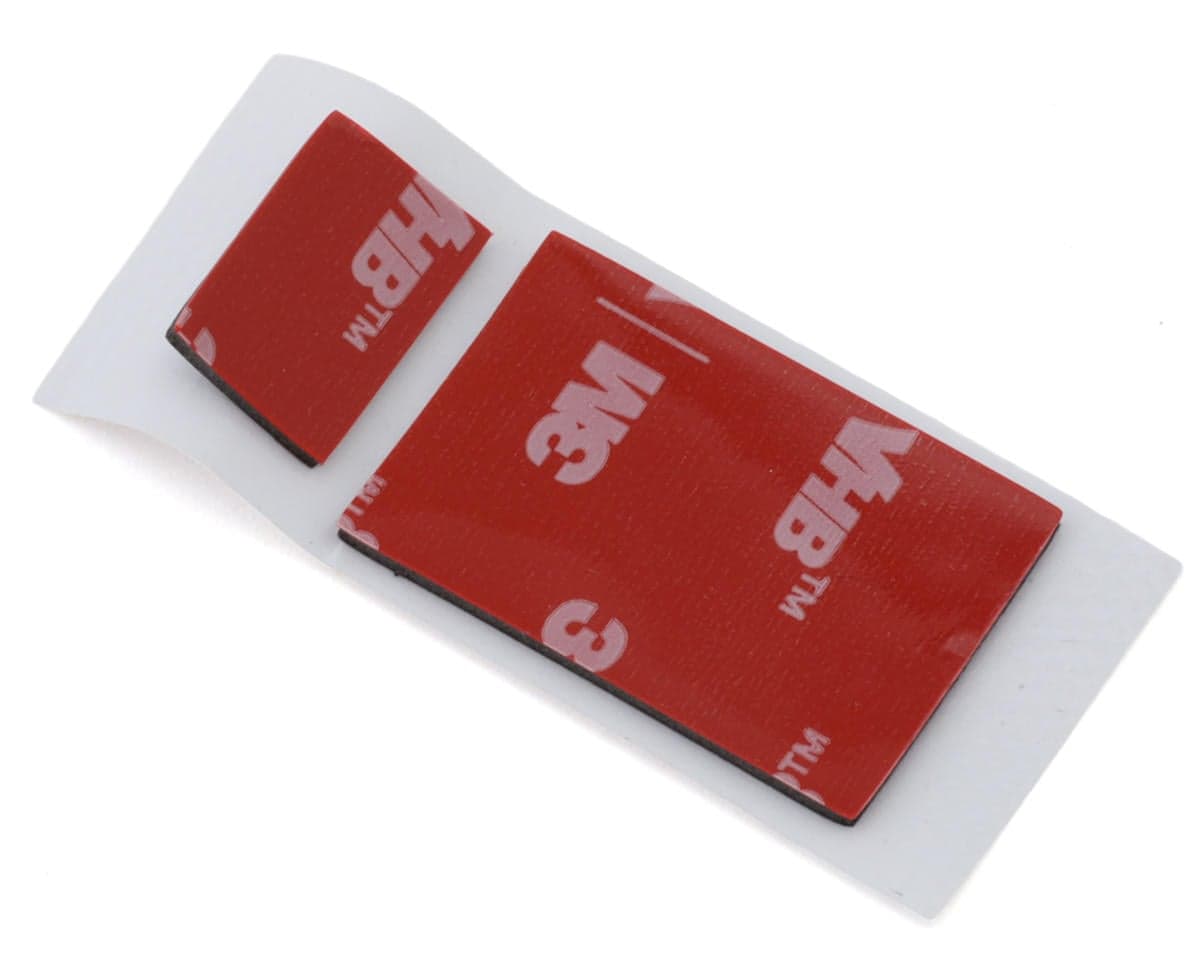

- (1) Double Sided Tape
- (1) Manual
Specifications:
| Suggested Application | 1/18-1/16 |
|---|---|
| Type | Senssorless Brushless |
| Input Voltage | 2-3S LiPo (7.4-11.1V) |
| Continuous Current | 30A |
| Burst Current | - |
| Dimensions (LxWxH) | 1.31x1.05x0.59in (33.4x26.8x15.1mm) |
| Weight | 1.35oz (38.5g) |
| Motor Limits | - |
| BEC Voltage | 6V (Fixed) |
| BEC Continuous Current | 2A |
| BEC Peak Current | - |
| Motor Connector | 3.5mm Bullets |
| Battery Connector | XT-30 |
| Programmable | Yes/Hobbywing LED Program Card |
