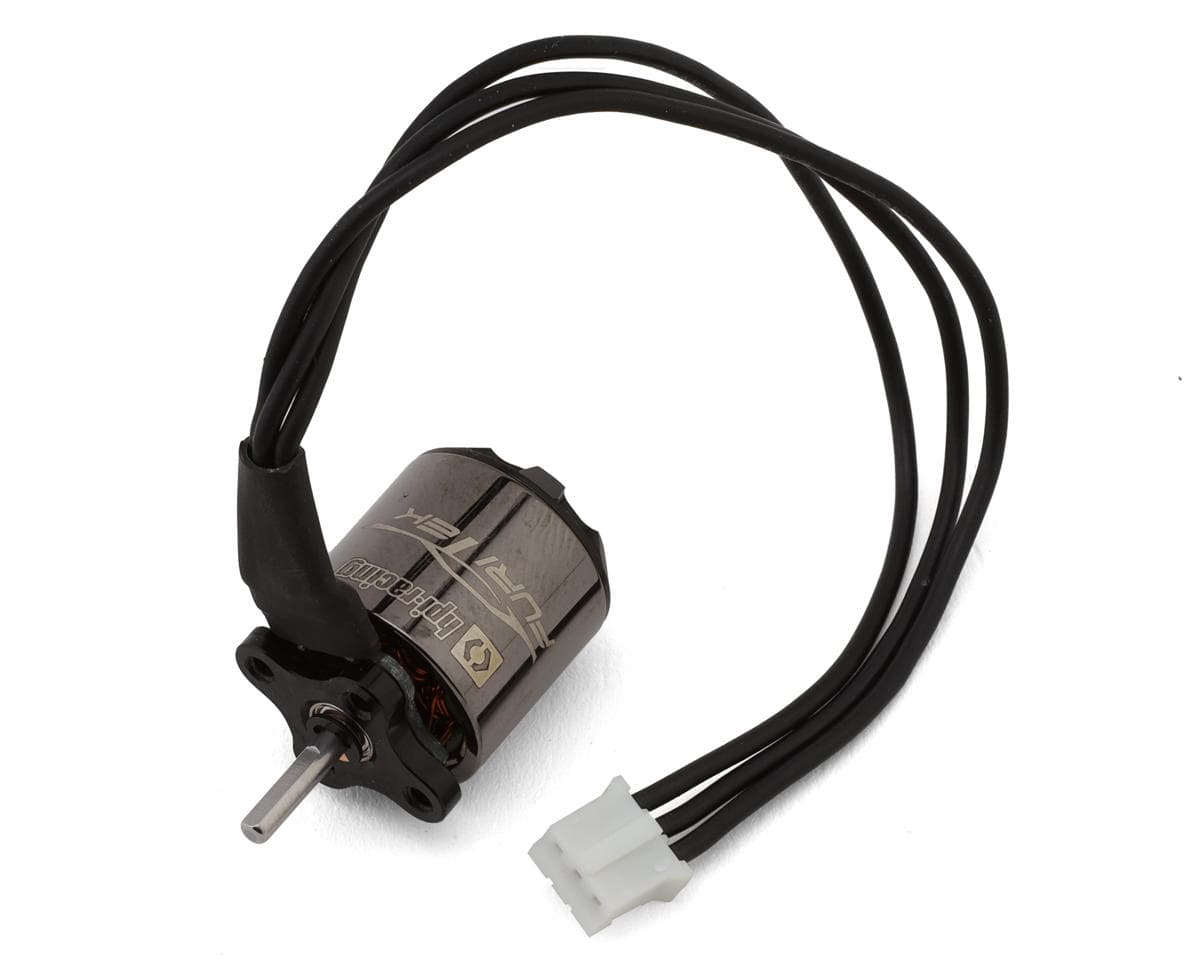

HPI FLX18-1212 Flux Brushless Outrunner Motor (3450Kv)

Motor Overview:

The FLX18 1212 3450KV Outrunner Brushless Motor is designed for rock crawling, providing the perfect balance between torque and speed. Its compact and lightweight design ensures a lower center of gravity, making it an excellent choice for climbing steep hills and navigating rough terrain with precision.

Engineered for efficiency and durability, this motor features a 12-pole high-torque design, precision-balanced rotor, and Japanese NMB high-RPM ABEC5 bearings for smooth operation. The CNC-machined aluminum heatsink can enhance cooling performance, while high-purity copper windings maximize energy conversion and minimize heat buildup.

Features:

• 12-pole high-torque motor design for superior crawling performance
• Precision-balanced rotor for smooth operation and maximum RPM
• Super-thin stator laminations to reduce eddy losses and improve efficiency
• Japanese NMB high-RPM ABEC5 bearings for durability
• CNC-machined 6061-T6 aluminum heatsink can for better cooling
• High-purity, high-temperature copper windings to reduce losses

Specifications:

• Motor Type: Outrunner
• kV Rating: 3450kV
• Input Voltage: 2S (7.4V)
• Slot/Pole Configuration: 12
• No-load Current @10V: 0.7A
• Power Output: 120W
• Resistance: 0.16 Ohms
• Max Current: 10A
• Motor Dimensions: 15.5x20.6mm
• Shaft Size: 2x6mm
• Weight: 17.5g

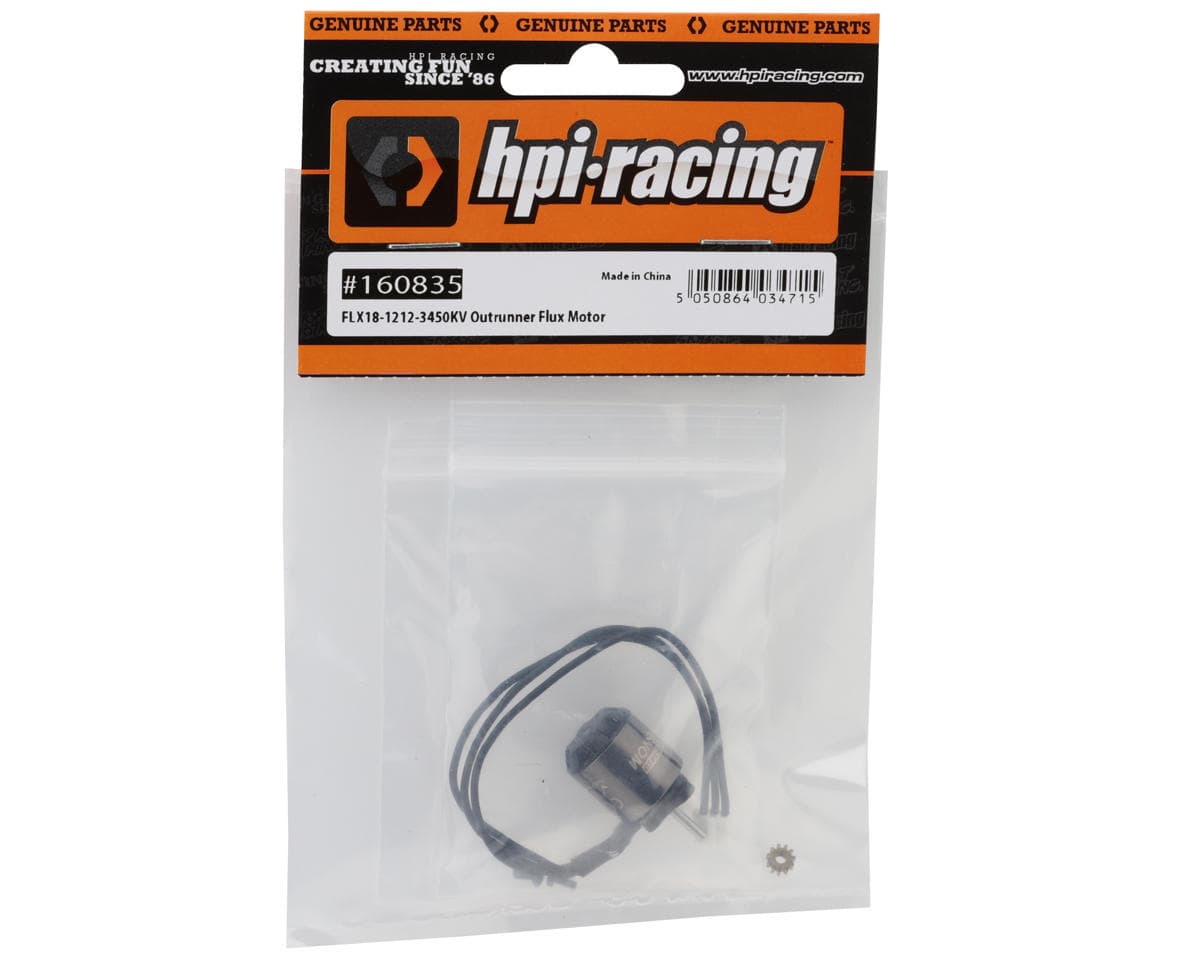

Includes:

• (1) FLX18 1212 3450KV Outrunner Brushless Motor
