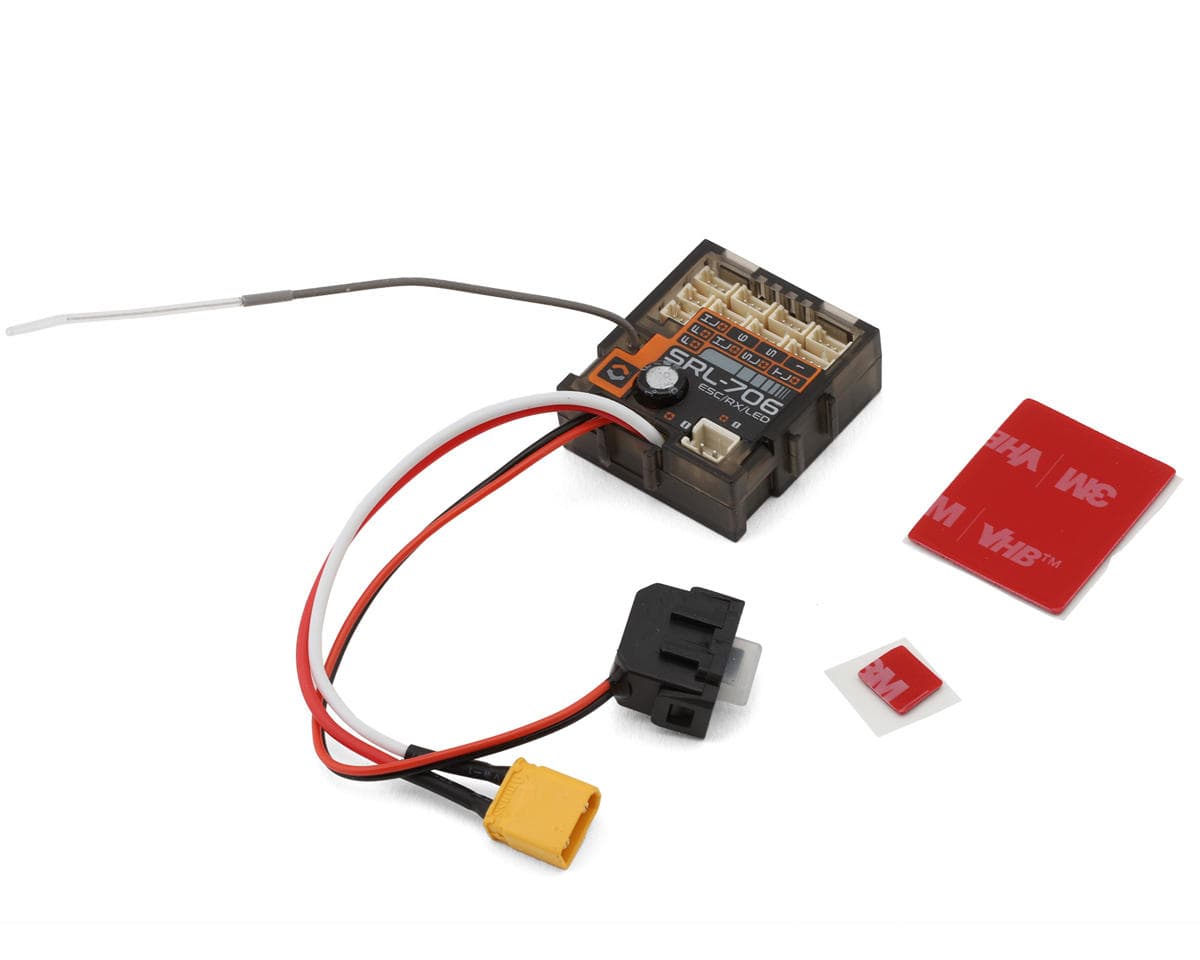

HPI SRL-706 3-in1 Brushed ESC/RX/LED Controller
About this part
ESC/RX/LED Controller Overview:
The SRL-706 3-in1 ESC/RX/LED Controller is a versatile all-in-one unit designed for 1/18 scale RC vehicles equipped with brushed motors. Manufactured by HPI, this compact controller combines a receiver, speed controller, and LED light controller into a single, efficient package. Whether you are running a touring car, truck, or rock crawler, the SRL-706 provides reliable performance and advanced functionality for a wide range of applications.
With its water-resistant construction, the SRL-706 is perfect for outdoor adventures in challenging conditions such as mud, snow, and sand. Its customizable settings, selectable running and battery modes, and integrated LED control offer unparalleled control and convenience, making it an essential upgrade for your 1/18 scale RC vehicle.
Features:
- Designed for use with TF-706 transmitter
- Integrated LED controller with five light modes
- Customizable parameters via TF-706 DIP switches
- Two running modes: normal and rock crawler
- Two battery modes: LiPo and NiMH
- Adjustable drag brake for precise control
- Water-resistant for challenging environments
Specifications:
- Operating Voltage: 2S LiPo / 5-7 Cell NiMH
- BEC Output: 6V/1A
- Continuous/Peak Current: 10A/50A
- Dimensions: 1.29x1.18x0.47in (33x30x12mm)
- Weight: 0.388oz (11g)

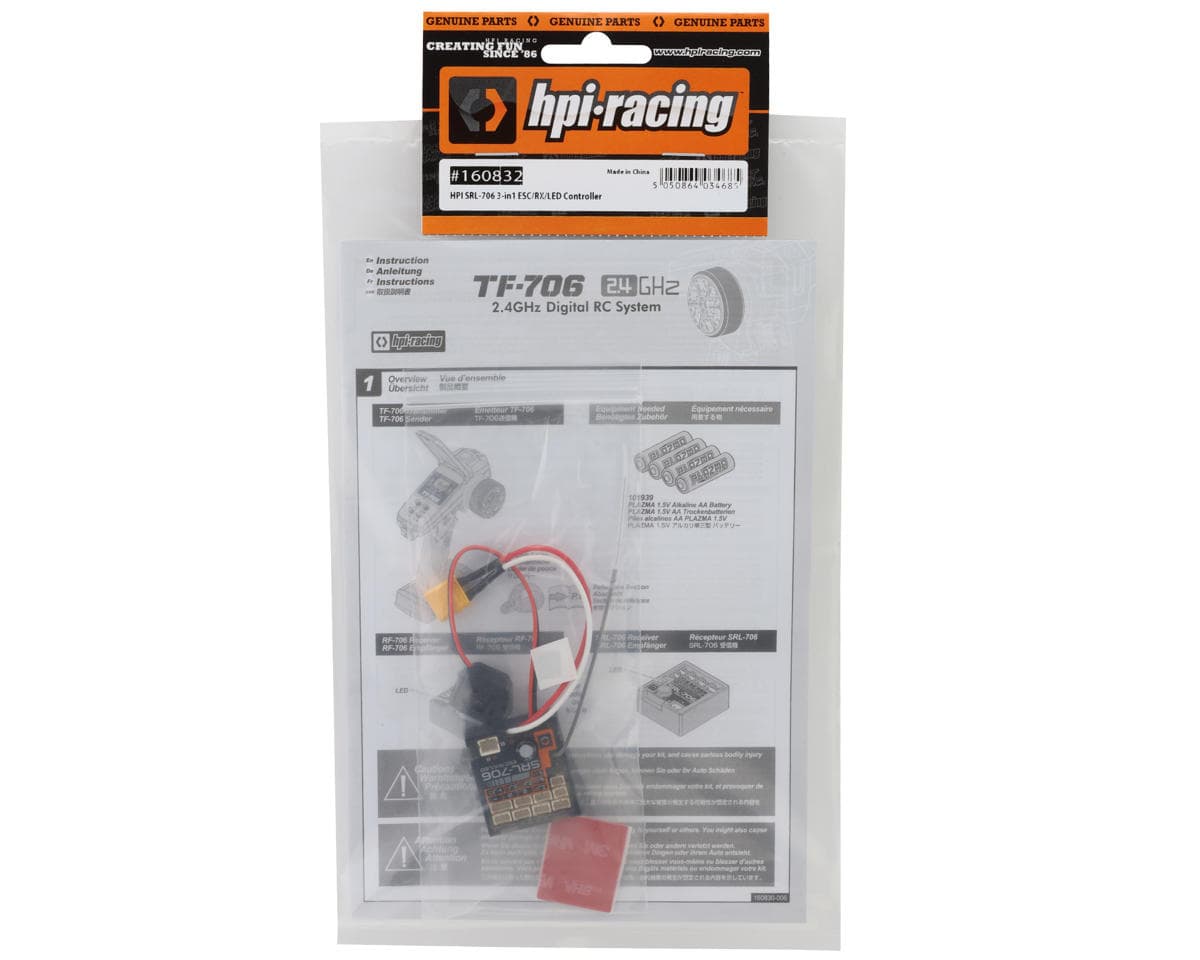

Includes:
- (1) SRL-706 3-in1 ESC/RX/LED Controller
