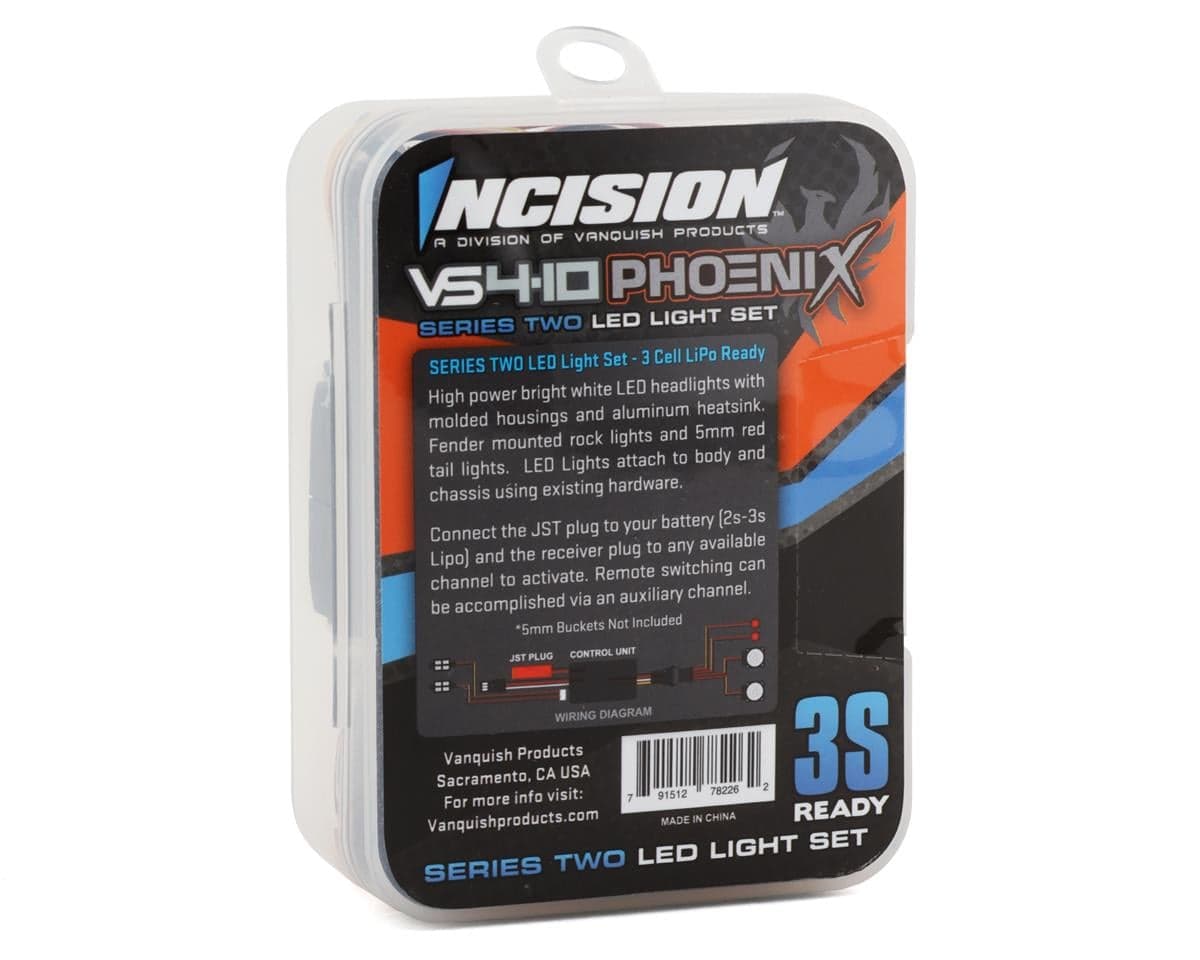

Incision VS4-10 Phoenix Series 2 Light Kit
About this part
Features:
- Molded front light buckets with high powered LED and heatsink
- Red LED tail lights
- White LED inner fender rock lights
- LED light controller
- Manual on / off function
- Additional on / off control from aux receiver channel.
- Headlights powered by 2-3S lipo balance plug on light controller
- Aux control and red LED headlights powered by RX plug
- (2) Molded front led headlight housings with heat sink. direct fit / bolt pattern with Phoenix body grill
- (2) 5mm red LED tail lights
- (2) PCB LED rock lights for use with VPS10180 Narrow Molded Inner Fenders (VS4-10 Phoenix Chassis)

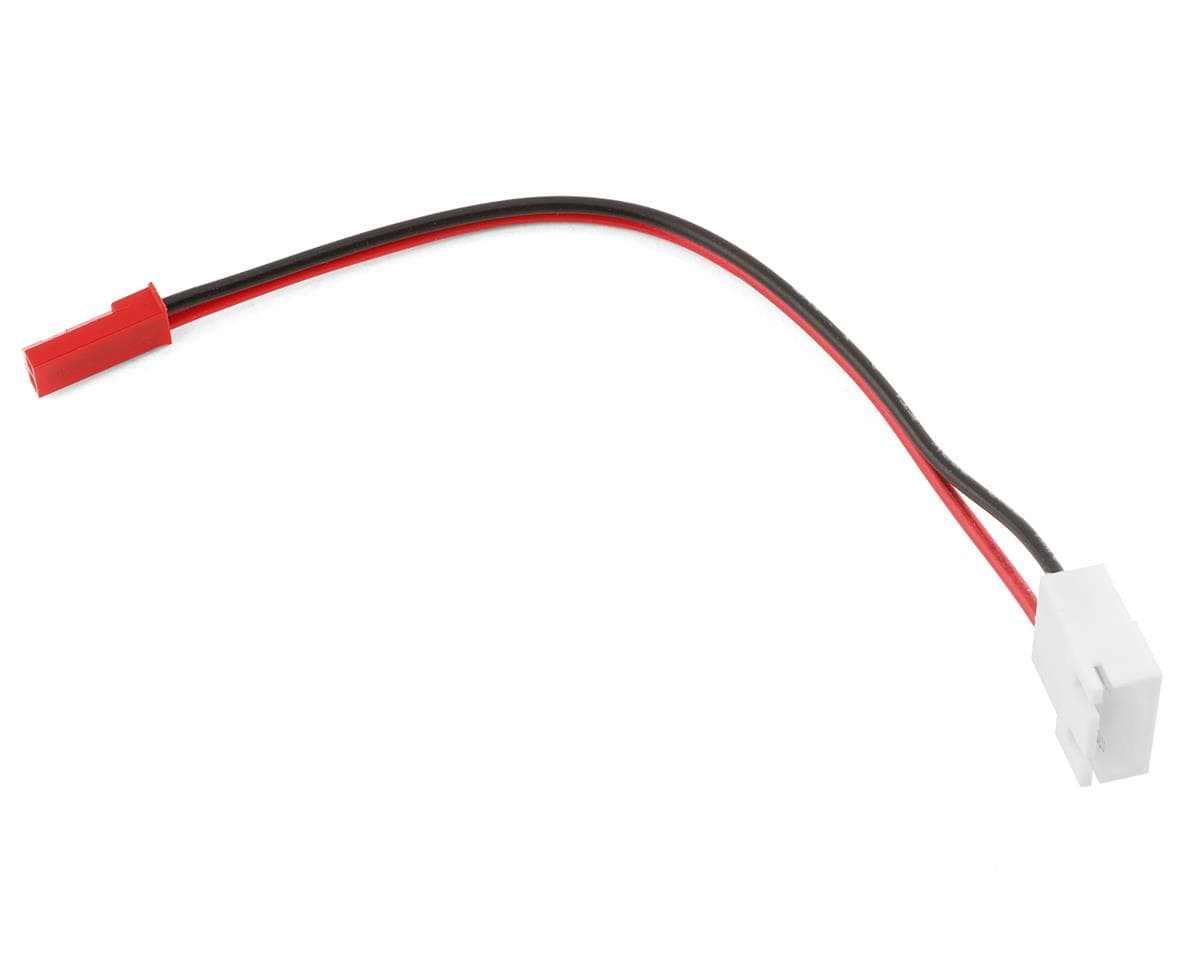

- (1) LED controller with required power plugs
- Nifty parts box
- Instructions for VS4-10 Phoenix:
- Remove stock light buckets from VS4-10 grill. Mount included light assembly to the body with the existing 1-64 hardware. Red LED tail lights mount into stock VS4-10 rear LED housings.
- Remove stock rock light cap, place PCB LED's in place, replace cap.
- Connect LED plugs to the Light Controller. Connect Light Controller to 2s or 3s Lipo battery for headlight power source. Connect Light Controller to receiver to power red LED’s, for full functionality use an open auxiliary channel in receiver. Program auxiliary channel on transmitter for 2 positions (On/Off) with endpoints set to max for each position.
- The 3-position switch located on the LED light controller selects mode (Off / Aux CH on/off control / ON). To control LED function through the transmitter ensure the 3 position switch on LED light controller is in the middle position.
- Tips:
- Attach LED controller and rock lights to chassis.
- Connect and route headlight and tail light LED light wires to underside of body.
- Use Black 4 pin connection plug for easy removal of body.
- Use Balance plug and JST connection for power source and RX connection at chassis for easily removal.
Reviews3.6 · 7 reviews
I was excited to run these lights but to my misfortune you are limited to the headlights power source connection. Note: JST power source powers head lights and rock lights. RX Aux powers taillights. Both power sources must be connected for full functionality. If you are running Spektrum batteries or bullet connectors you will not be able to power the headlight without rigging up some sort of an adapter. I'm still having trouble finding a solution.
Scrappy control unit very disappointed in the quality wires broke off first use not water proof at all just garbage from vanquish
Incredibly bright. Head lights feel especially solid. Definitely worth the price!
Head lights are extremely bright. Tail lights are comparable to Axial tail lights. The wires on the control unit are thin and flimsy feeling, but they have held up so far after about a year. The control board part gets hot (you don't want to touch it) and one time on the trail the head lights started flickering. I don't know if it was because it was overheating or something else. For a Vanquish product it is kind of disappointing. I would try setting up a fan on it, but I don't want to hear a noisy fan while I'm on the trail. These fit perfectly in the Vanquish Phoenix.
These lights are excellent, super bright and give a touch of scale realism.
Reviewers agree the headlights and taillights are very bright, with headlights praised as especially solid and the lights fitting the Vanquish VS4-10 Phoenix well. Several reviewers report a recurring problem with the thin, flimsy control unit wires, which broke off during first use or while handling in one case. One reviewer notes the control board gets hot and that headlights flickered once on the trail, possibly from overheating. Power wiring is a point of confusion: the headlights need the JST connection and the taillights need the RX Aux connection, so both must be connected, and Spektrum or bullet connectors need an adapter for the headlights. One reviewer found the unit not waterproof. Ratings are mixed, from 1 to 5 stars.
- + Very bright lights
- + Headlights feel solid
- + Good fit on the Vanquish Phoenix
- + Taillights comparable to Axial taillights
- − Thin, flimsy control unit wires that break easily
- − Control board runs hot
- − Headlights needs adapter for Spektrum or bullet connectors
- − Not waterproof
