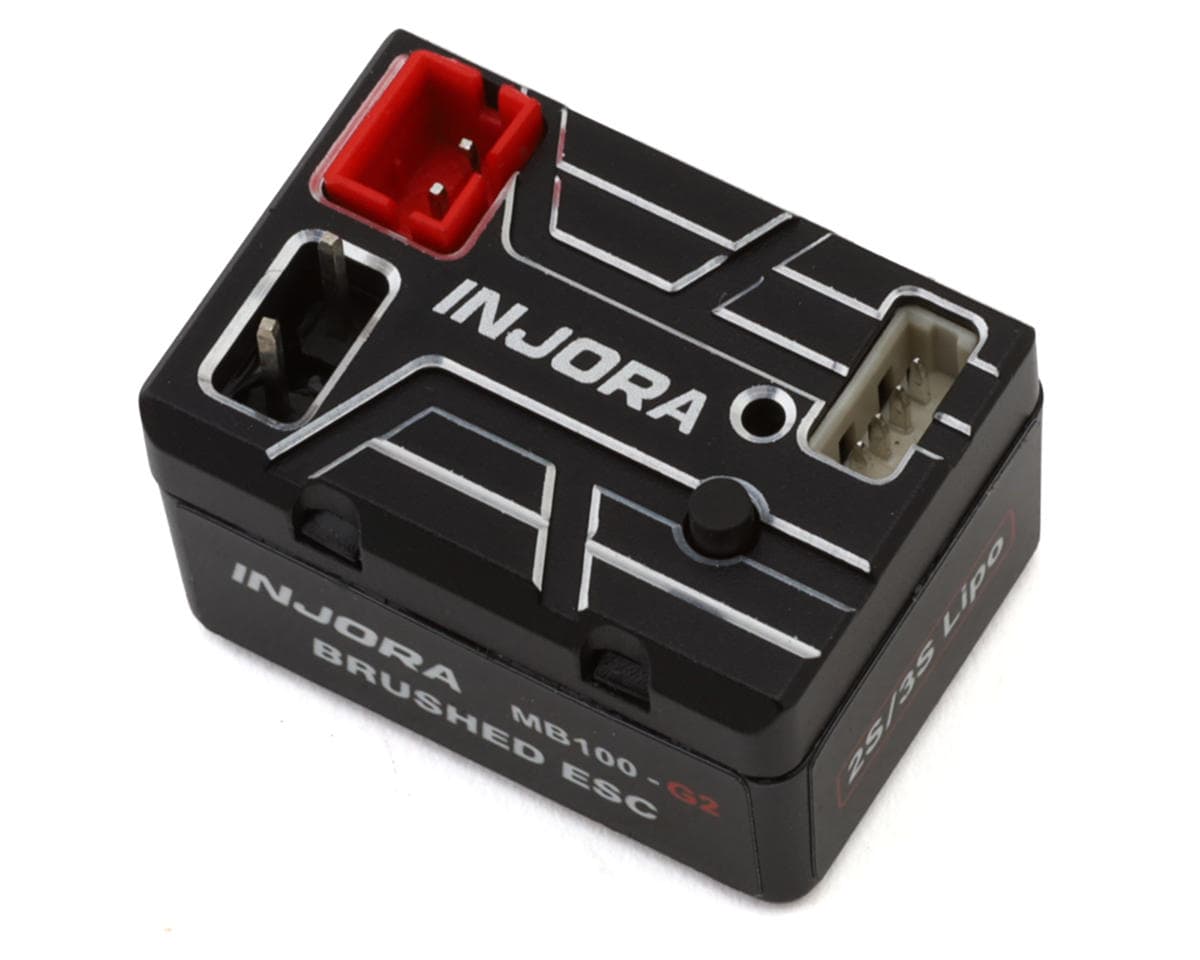

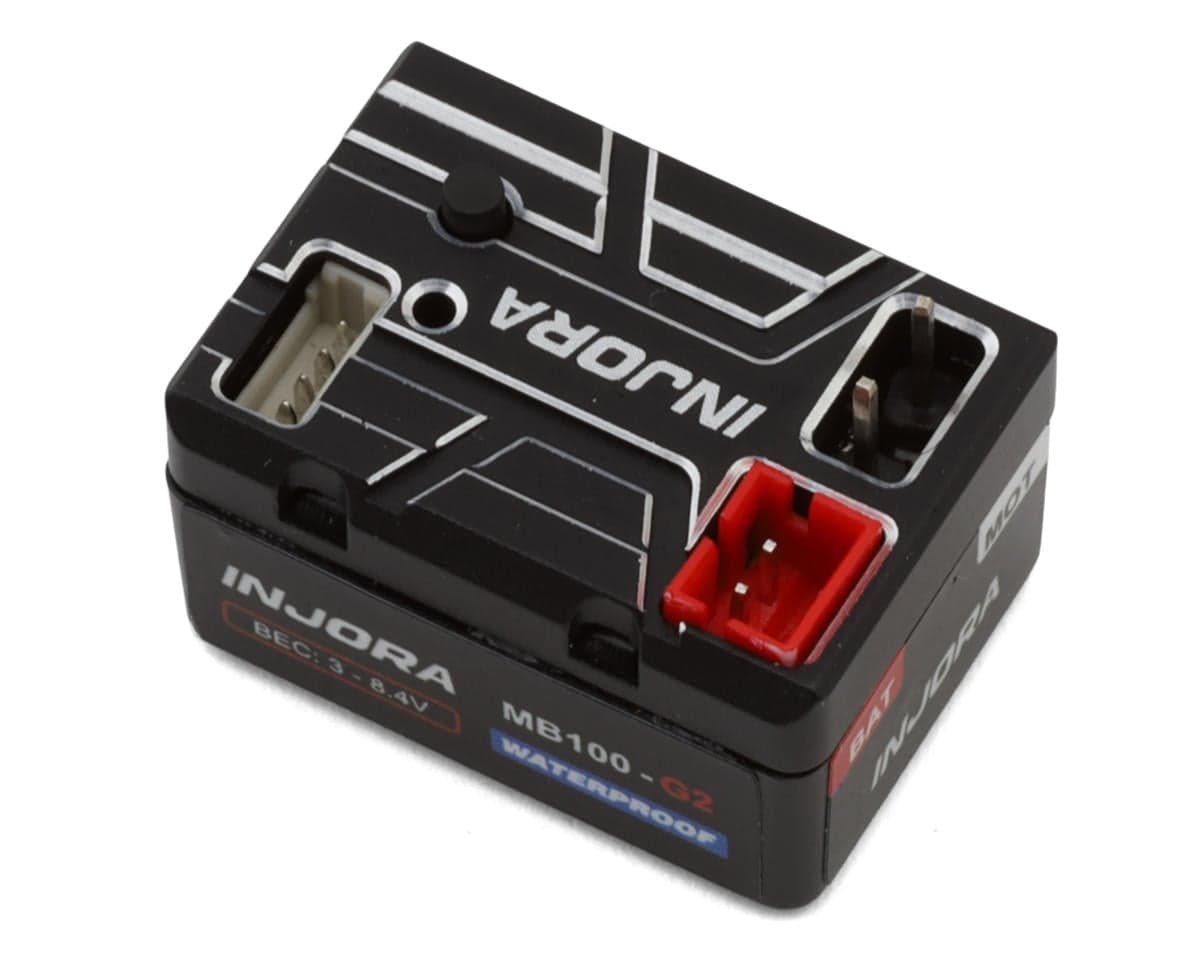

Injora MB100 G2 40A Waterproof Brushed ESC (2-3S)
About this part
ESC Overview:
Take your micro crawler to the next level with the Injora MB100 G2 Waterproof Brushed ESC. Featuring a compact lightweight design, built-in Bluetooth tuning, IP67 waterproof protection, and support for 2–3S LiPo batteries, it delivers the performance, customization, and reliability needed for serious 1/18 and 1/24 scale crawling adventures.
About the MB100 G2 ESC
Compact Power
The Injora MB100 G2 Waterproof Brushed ESC delivers smooth and reliable power management for 1/18 and 1/24 scale crawlers in an ultra-compact 10g package. Supporting 2–3S LiPo batteries and a wide range of brushed motors, its smaller footprint makes installation easier while providing the performance needed for demanding trail and crawling applications.
Advanced Smart Features
Equipped with built-in Bluetooth connectivity, the MB100 G2 allows wireless tuning, data logging, and firmware updates directly through the Injora Link app. Its IP67 waterproof design, AUX parameter adjustment capability, adjustable BEC output, and comprehensive protection systems help ensure dependable operation, making it an excellent choice for drivers seeking maximum customization, durability, and control.
Features:
- IP67 waterproof design for all-weather performance
- Compact size makes installation easier
- Built-in Bluetooth allows wireless tuning
- Works with the Injora Link mobile app
- Supports real-time parameter adjustments
- AUX channel enables on-the-fly parameter control
- Compatible with 2S and 3S LiPo batteries
- Supports 030, 050, 130, 180, and 370 brushed motors
- Adjustable BEC output from 3.0V to 8.4V
- Multiple protections protocols

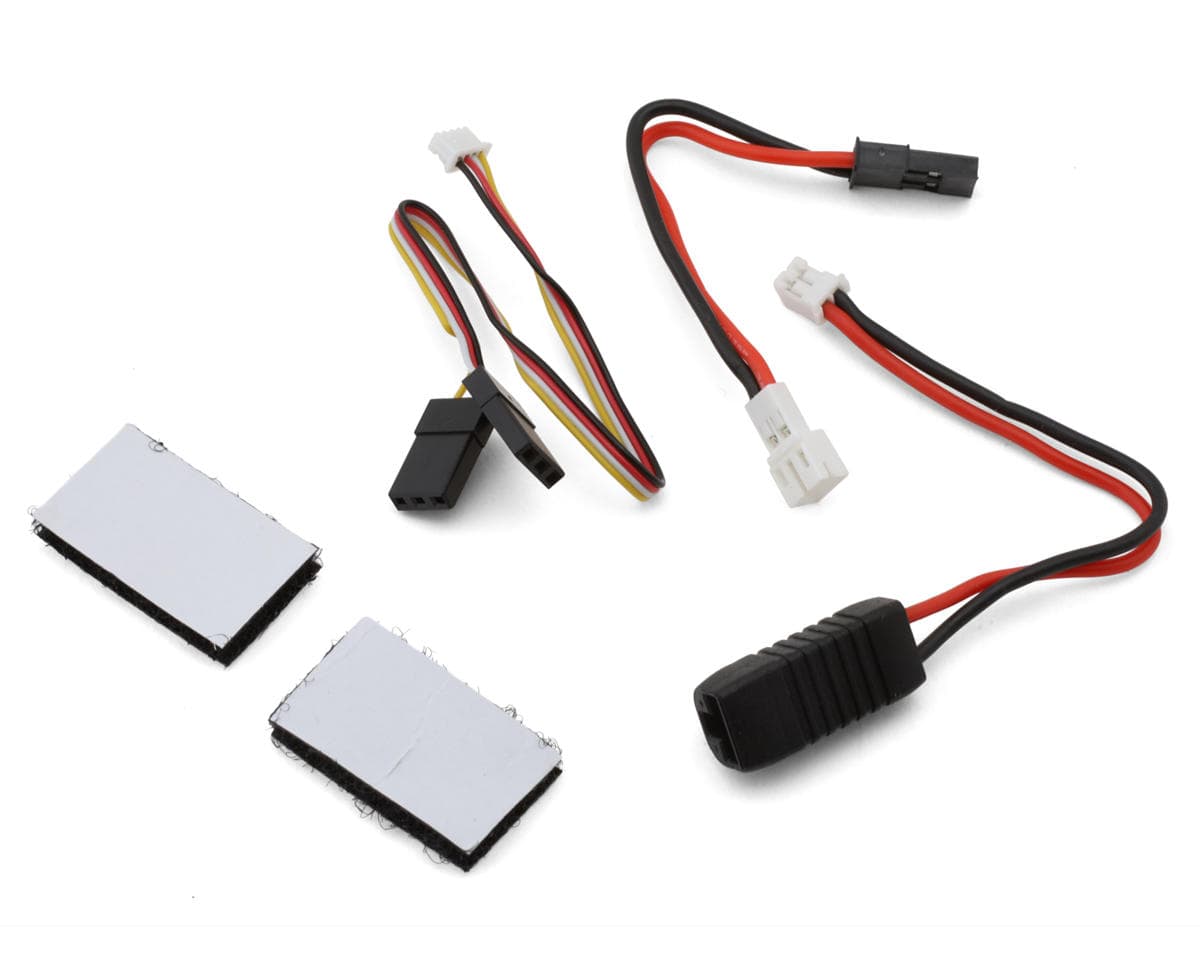

Includes:
- (1) MB100 G2 Waterproof Brushed ESC 40A
- (1) TRX-4M Battery Cable Adaptor
- (1) JST-PH 2.0 Battery Cable Adaptor
- (1) Battery Cable Adaptor
- (1) ESC/Receiver Cable
- (2) Double Sided Tape
- (1) Manual
Specifications:
| Suggested Application | Micro Rock Crawler |
|---|---|
| Type | Brushed |
| Input Voltage | 2-3S (7.4-11.1V) LiPo |
| Continuous Current | 40A |
| Peak Current | 100A |
| BEC Voltage | (3–8.4V) Switchable |
| BEC Continuous Current | 3A |
| BEC Peak Current | 6A |
| Battery Connector | TRX4M/JST-PH 2.0 |
| Programming | Wireless Via Smart App |
*Tech Note: Not compatible with the stock SCX24, TRX4M, and Ascent-18 radio systems. Requires a new transmitter and receiver (with CH2).
