Parts/Batteries & charging/Battery accessories (bags, straps, trays)/iSDT Safe Parallel Charging Board w/XT60 Connectors
iSDT
iSDT Safe Parallel Charging Board w/XT60 Connectors
Part # ISD-P-48605.0(2)
Where to buy
$34.99
Prices are as last seen at the store; stock is not tracked.
About this part

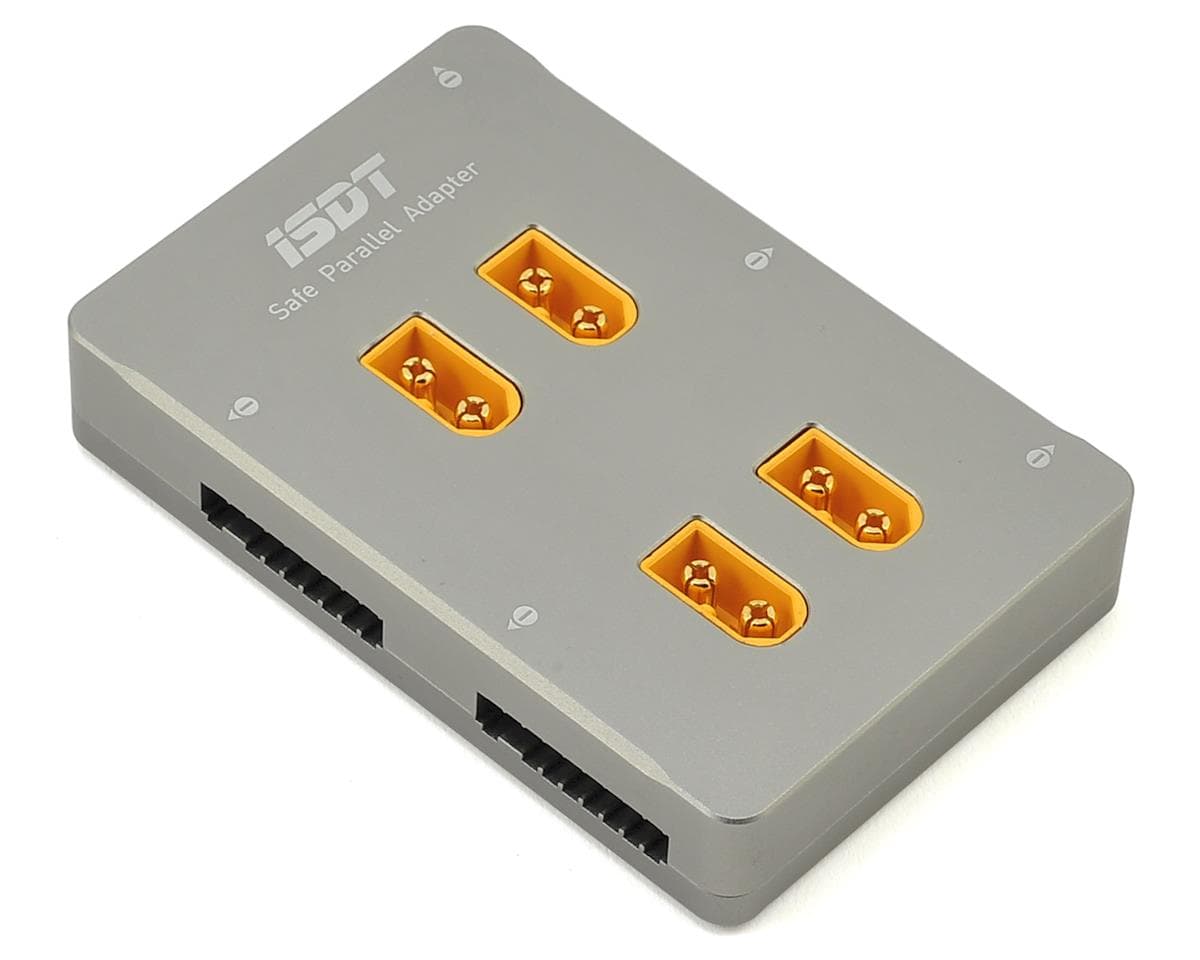

iSDT Safe Parallel Charging Board was developed with a similar concept to iSDT chargers; maximum size optimization, high safety margin, and excellent heat dissipation. Featuring up to 40A input current, 4 output channels, and a sleek aluminum housing. Simply connect the supplied cables with your iSDT SC-606, Q6+, SC-620, or future iSDT chargers, and you can begin parallel charging in a matter of seconds.
Additionally, by supplying your own cables for chargers from different manufacturers, this parallel board can be used with other chargers such as ProTek R/C, EcoPower, iCharger, Revolectrix, and many more! The parallel board supports up to 8S batteries, and is a great add on for the parallel charging enthusiast.
Specifications
Max Input Current: 40A
Max Output Current: 30A per port
Max Balance Current: 2A
Max Cell Count: 8s
Connectors Used: XT60
Includes:
Additionally, by supplying your own cables for chargers from different manufacturers, this parallel board can be used with other chargers such as ProTek R/C, EcoPower, iCharger, Revolectrix, and many more! The parallel board supports up to 8S batteries, and is a great add on for the parallel charging enthusiast.
Specifications
Max Input Current: 40A
Max Output Current: 30A per port
Max Balance Current: 2A
Max Cell Count: 8s
Connectors Used: XT60
Includes:

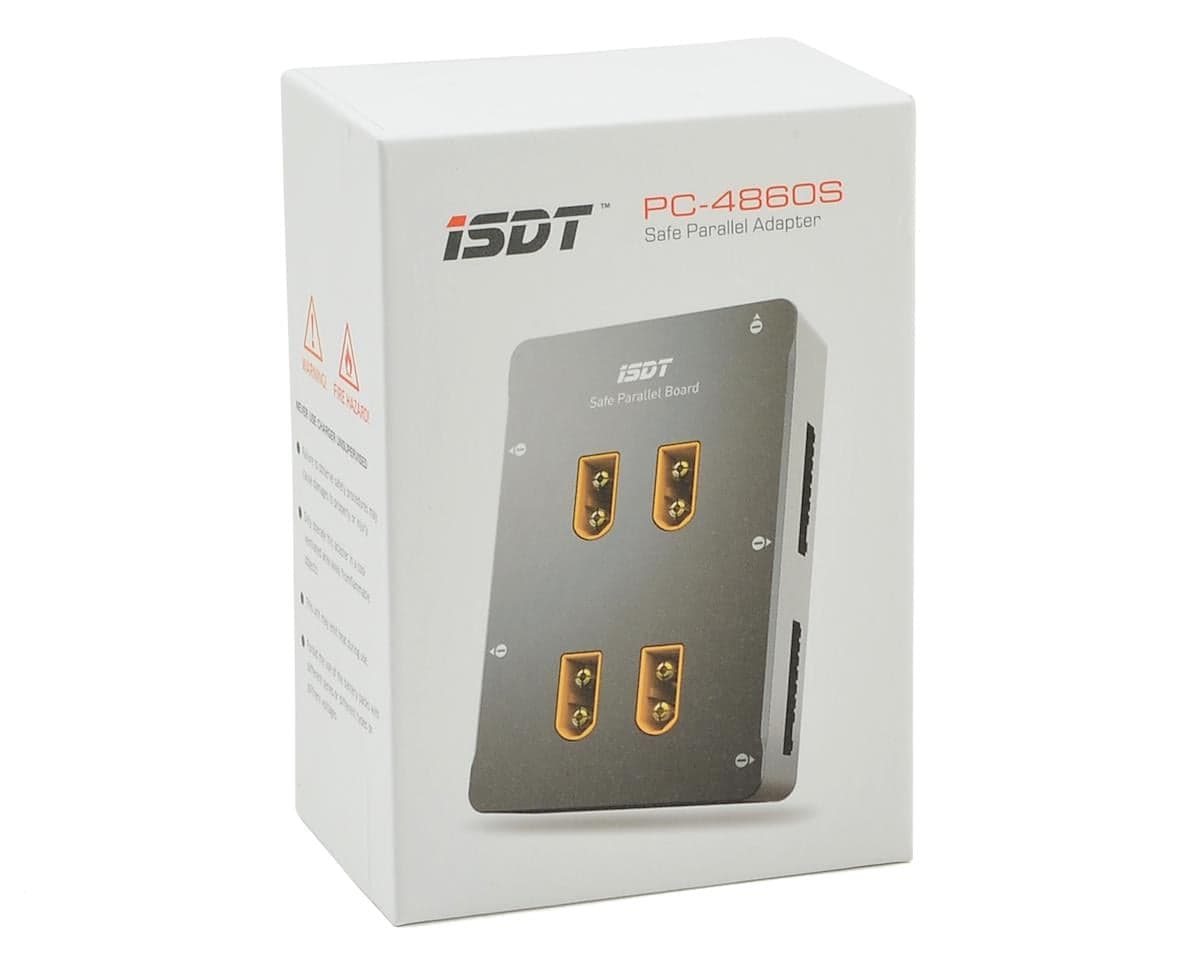

- (1) iSDT PC-4860 Safe Parallel Board

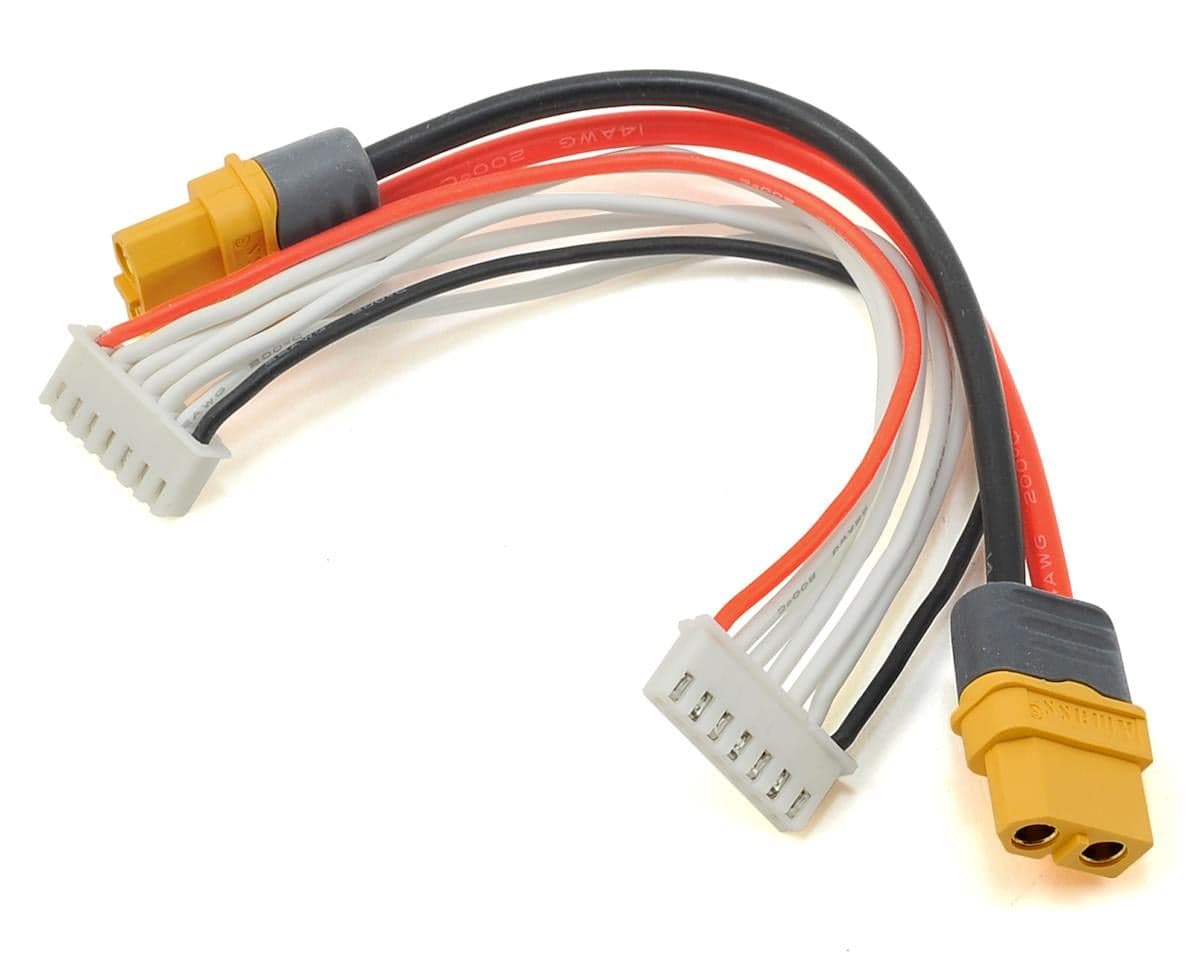

- (1) XT60 Charge Cable
- (1) 6s Balance Cable
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 2 reviews
Peter MazzarelliVerified owneron iSDT Safe Parallel Charging Board w/XT60 Connectors
Top notch accessory, beautiful machined aluminum housing. Unit is hefty, you can feel the quality. If this were my product, it would be priced much higher. Charges up to four 8S batteries. will charge 2 to 8S IOW.However the balance cable supplied is for up to 6S which was fine with me as I do not have any 8S to charge anyhow. Highly recommend.
UG_ALLSTARon iSDT Safe Parallel Charging Board w/XT60 Connectors
Solid cnc case, quality pcb board, plenty of fuses. Best parallel charging board on the market.
