J&T Bearing Co.

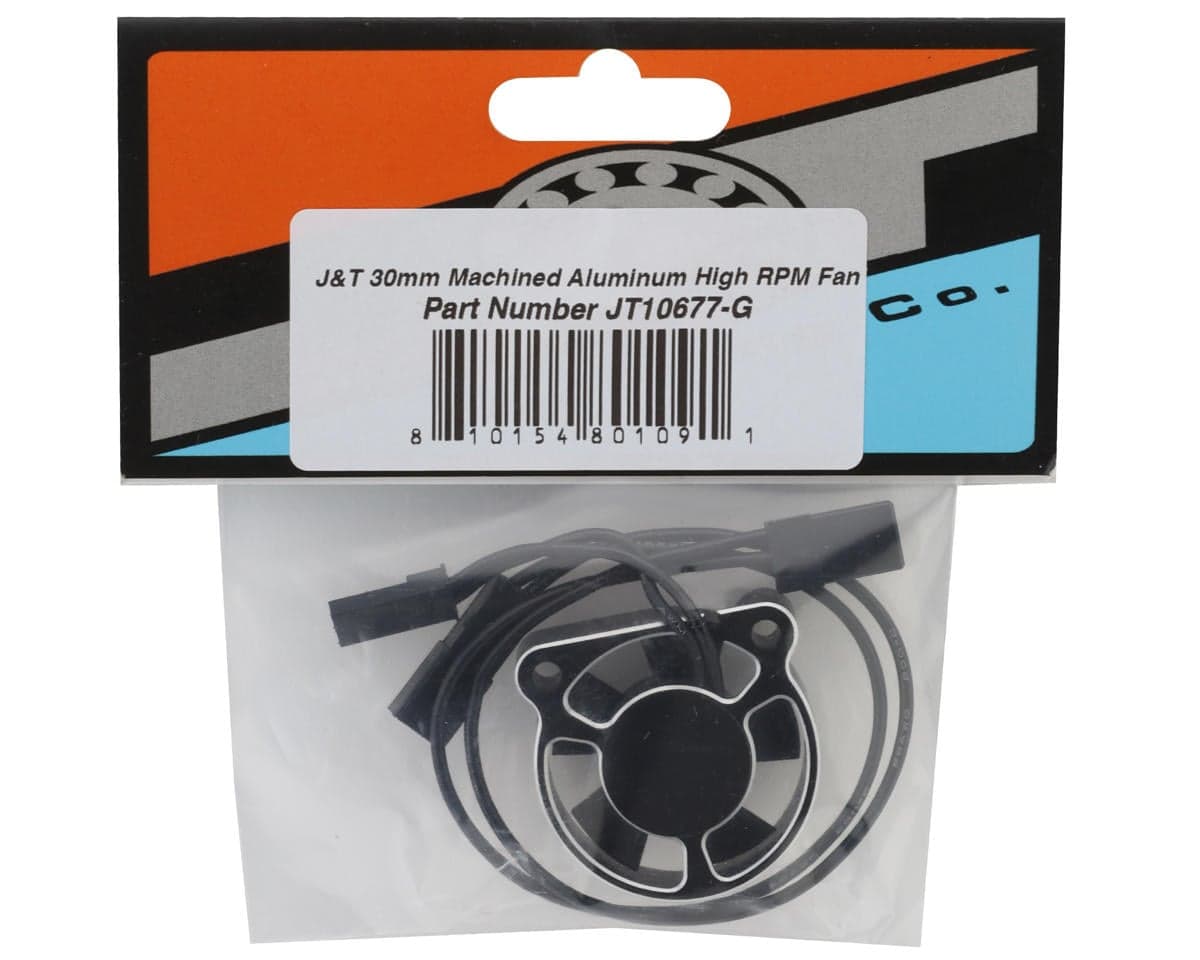

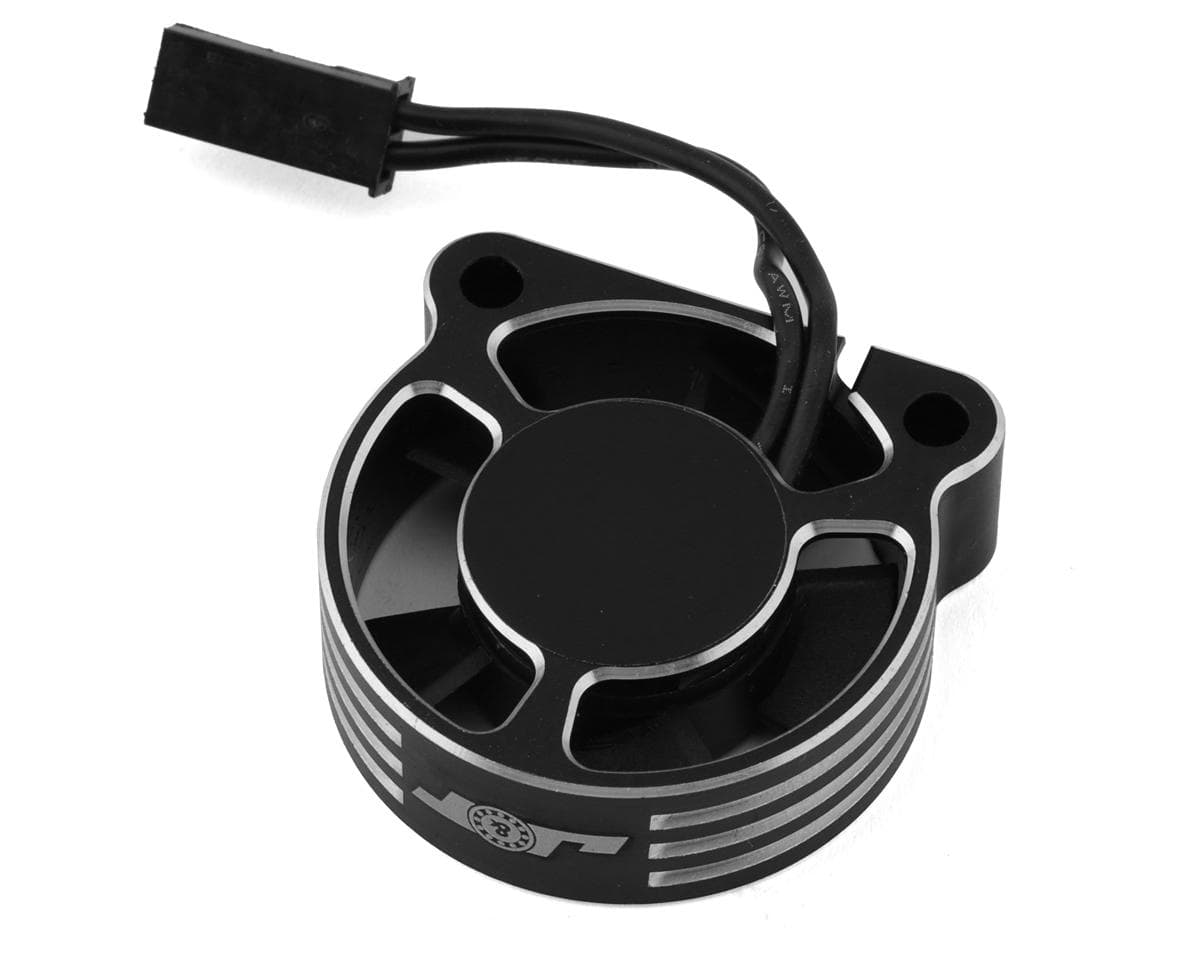

J&T Bearing Co. 30mm Machined Aluminum High RPM Fan (Black)
Part # JTB-JT10677-G
Where to buy
$23.99
Prices are as last seen at the store; stock is not tracked.
About this part
Fan Overview:
This is the 30mm Machined Aluminum High RPM Fan from J&T Bearing Co.. Designed for high-performance applications, this fan features a durable aluminum casing that not only protects the fan blades but also enhances heat dissipation for cooler operation at speeds up to 28,000 RPM. Compatible with 2S HV LiPo systems, this fan is pre-wired with a 2-pin connector for easy installation, making it an excellent choice for ESC and motor applications ranging from 1/12 to 1/8 scale.
Features:
- Durable aluminum casing
- Compatible with 2S HV LiPo systems
- Pre-wired with 2-pin connector
- Enhanced heat dissipation
- Suitable for 1/12 to 1/8 scale applications
Specifications:
- Dimensions: 31x31x10.5mm
- Mounting Pattern: 24mm x 24mm
- Weight: 14 grams
- Material: Aluminum Case & Plastic Fan Blade
- Bearing: Dual Ball Bearing
- Operating Voltage: 5V - 8.75V
- Fan Speed: 28,000 @ 8.4 Volts
- Current: 0.45A
- Connector: JWT 2-Pin
- Fan Applications: 1/10 Scale, 1/8 Scale or 1/12 Scale
Includes:
- (1) 30mm Machined Aluminum High RPM Fan

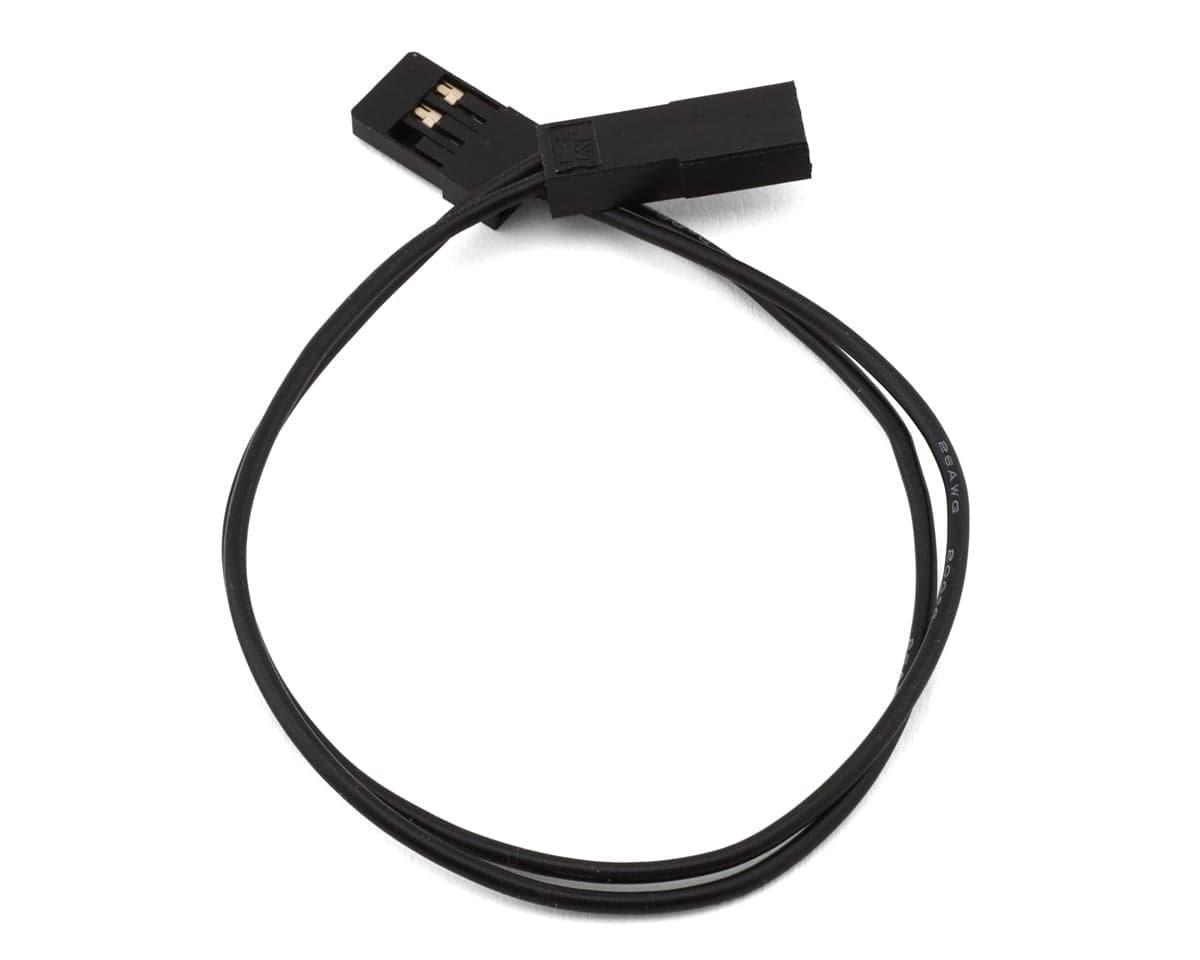

- (1) Wire Extension
