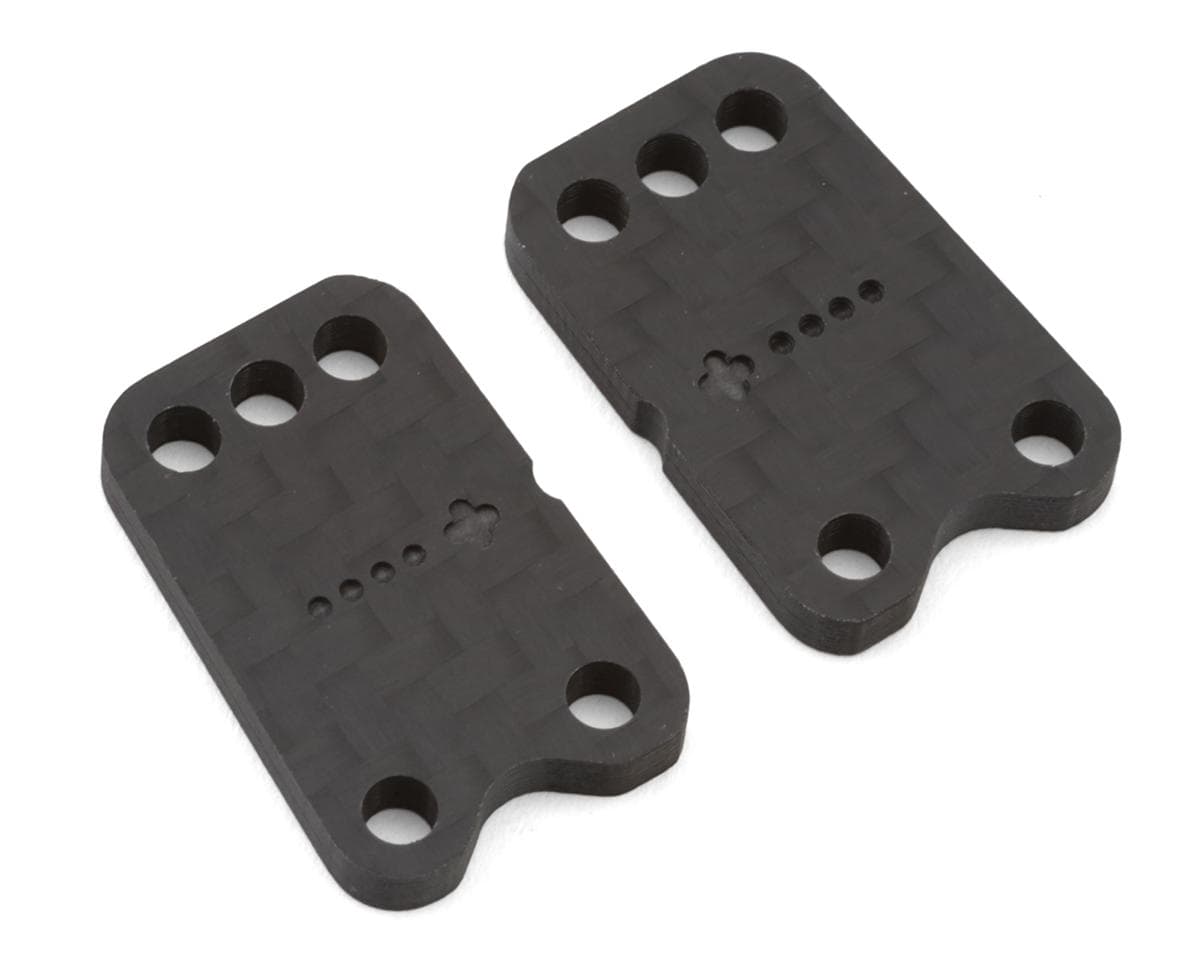

J&T Bearing Co. Mugen MBX8 Carbon Fiber Rear Hub Plates (4) (4-Dot Plus)

Hub Plate Overview:

The J&T Bearing Co. Mugen MBX8 Carbon Fiber Rear Hub Plates are optional hub plates made for the Mugen MBX8 line of vehicles. This version uses a 4-Dot Plus height, which lowers the rear roll center and increases body roll, but at a slower and more controlled rate. That slower rate helps the rear end feel more stable on higher-grip surfaces and can reduce the chance of traction rolling when the vehicle transitions through corners.

About the Carbon Fiber Rear Hub Plates

Rear-End Tuning

The 4-Dot Plus plates also use slightly shorter camber-link locations, giving builders another way to fine-tune how the rear of the vehicle behaves. The shorter link can help the car rotate more quickly, and it can create a more locked-in feel on corner exit as the chassis settles and drives forward in a straighter line. Combined with the roll-center change, these plates offer a blend of stability and rotation that can be useful when adjusting the rear end for different track conditions.

Features:

• Uses a 4-dot plus height
• Provides a lower rear roll center
• Creates slower more controlled body roll
• Helps prevent traction rolling on high-grip surfaces
• Uses shorter camber-link locations
• Provides quicker rotation when cornering
