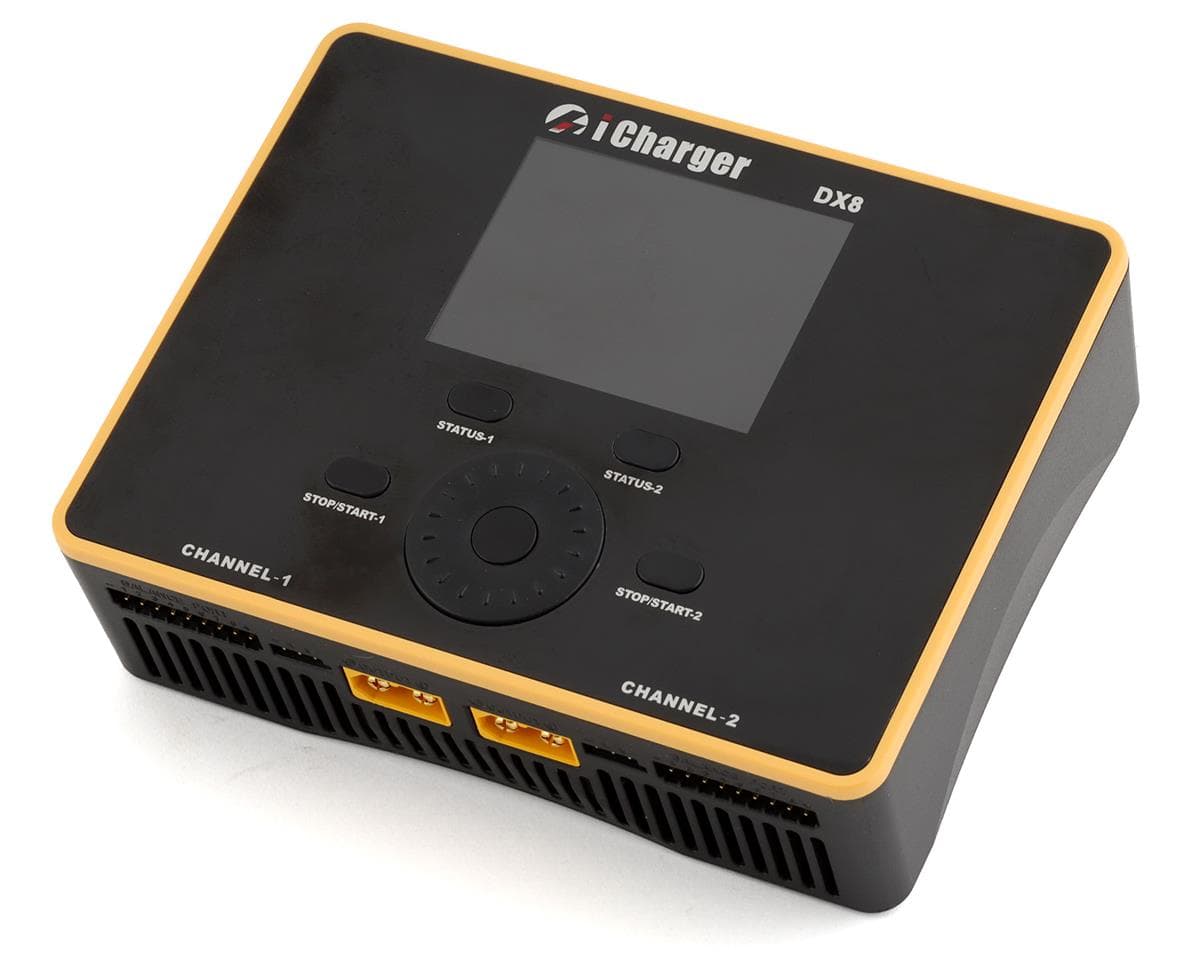

Junsi iCharger DX8 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (8S/50A/1600W)
Part # JUN-DX85.0(1)
Where to buy
$309.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Junsi iCharger DX8 DC Battery Charger is a high power charger that is capable of charging at up to 1600 watts. Using extreme accuracy, this charger features different balance modes keeping your LiPo batteries fresh and performing at their best. The charger shares the accessible and easy-to-understand user interface found in the other popular Junsi iChargers. Charge at peak performance with the Junsi DX8 charger.
Features:
Features:
- High efficiency synchronous buck boost technology, high power, high current and high efficiency
- 1600W peak charging power with up to 50A charging and discharging in synchronous mode
- Supports up to 8S LiPo/LiLo/Life/LIHV/NiZn and LTO batteries, 25-cell NiMH/NiCd batteries and 15-cell Lead-Acid batteries
- Internal temperature sensors allowing control of the fan speed
- Thermal shutdown for added protection
- The DX8 can store up to 64 battery profiles
- Full color 2.4" LCD display provides: current, voltage, electric quantity, power, internal resistance, control status, consumption time, temperature and more
Specifications:
Net weight: 440g
Dimension: 97.5x128.5x40mm ±0.5mm
Input Voltage Range: 9-49VDC
Maximum Input Current Limit: 65A
Maximum Charge/Discharge Current: 30A x2 (50A Bridged)
Maximum Charge Power Capacity: 1100W x2 (1600W Bridged)
Maximum Discharge Power Capacity: 45W x2 (70W Bridged)
Maximum Regenerative Discharge Power Capacity: 1100W x2 (1600W Bridged)
Maximum Extra Discharge Power Capacity: 1050W @35V/30A (2100W Bridged)
Maximum Current Drain for Balancing: 2A x2 (4A Bridged)
WARNING NOTE: This charger is not compatible with Traxxas iD equipped LiPo Batteries; only Traxxas iD chargers properly charge Traxxas iD LiPo Batteries. NEVER, UNDER ANY CIRCUMSTANCES, use this charger to charge a Traxxas iD equipped LiPo Battery.
WARNING NOTE: This charger is not compatible with Traxxas iD equipped LiPo Batteries; only Traxxas iD chargers properly charge Traxxas iD LiPo Batteries. NEVER, UNDER ANY CIRCUMSTANCES, use this charger to charge a Traxxas iD equipped LiPo Battery.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
ron schuurVerified owneron Junsi iCharger DX8 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (8S/50A/1600W)
Excellent little charger with the same familiar functions. I now use only this charger. If you travel or travel light this is a super small and very light.
3 found this helpful
