Parts/Batteries & charging/Chargers/Junsi iCharger X12 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (12S/30A/1100W)
Junsi iCharger X12 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (12S/30A/1100W)
Junsi

Junsi iCharger X12 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (12S/30A/1100W)

Part # JUN-X121.0(1)
Where to buy
$204.99
AMain Hobbies
Seen Oct 12, 2026
$204.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

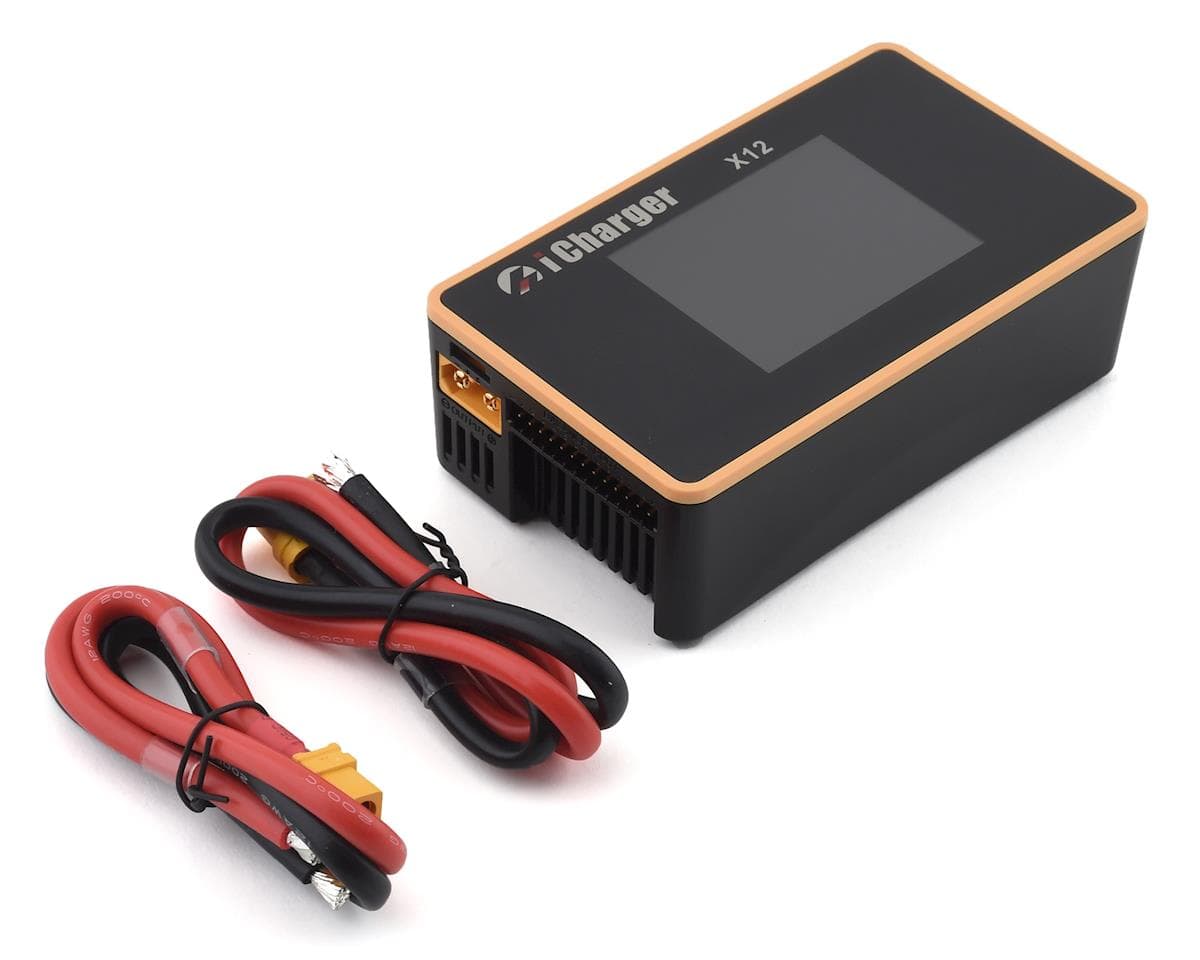

This is a Junsi X12 Lilo, LiPo, Life, NiMH, NiCD DC Battery Charger is a palm-sized charger that's packed with an unbelievable 1100W and 30A of power packed into a miniature frame, full of features only seen in advanced chargers.The charger shares the accessible and easy-to-understand user interface found in the popular Duo iChargers.


Features:
  • The X12 supports up to 12s LiPo, Lilo, LiFe, LiHV, LTO, NiZn batteries with a maximum 2A balance current, and it utilizes a unique balance calculation of internal resistance correction.
  • Intelligent fan control. The internal temperature sensor detects internal temperature, allowing the charger to control fan speed.
  • Internal temperature protection. When the internal temperature exceeds the power reduce temperature, the output power is automatically reduced, and the charger will shut down when temperature exceeds the shut-down temperature.
  • This charger can save 32 parameter settings and support the data import/export to SD Card.
  • A 2.4" IPS LCD Screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time consuming and temperature, etc.
  • Multi discharge features: self discharge, regenerative to input discharge, and lithium battery extra expanding discharge.
  • Supports measurement for internal resistance of batteries both offline and online. Can measure not only the internal resistance of the entire battery pack but also the internal resistance of each cell within the lithium battery.
  • The X12 has protection for reverse polarity, input oor output.
  • Supports software updates via USB port or SD card. The X12 also supports the “Junsi Console” software, which displays, plots, and analyzes the charge and discharge data.
Specifications:
Input voltage range: 11-53VDC
Maximum input current limit: <35A
Maximum charge/discharge current: 30A
Max. output voltage/current for digital power supply: 50V/30A
Maximum charge power capacity: 1100W
Maximum discharge power capacity: 50W built in
Maximum regenerative discharge power capacity: 1100W
Maximum extra discharge power capacity: 1500W@50V/40A
Maximum current drain for balancing: >2.0A
Display: 2.4 " IPS LCD (320×240)
Net weight: 230g
Dimensions: 112 × 64× 37 ± 0.5 mm

Reviews1.0 · 1 review

Shaun BellVerified ownerMay 18, 2023on Junsi iCharger X12 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (12S/30A/1100W)

First time I’ve ever gave icharger a bad review. 4 units dead in total. Works great until you try discharging 12s packs. You my get a few discharged, but it will die. This only happen with bigger lipo’s, so discharging through an external load at 20 or 25amps. The charger will power on, but no display. My icharger X8 dual on the other hand is awesome! Looks to be some design flaw, but nobody at HillRC will ever return an email : (
