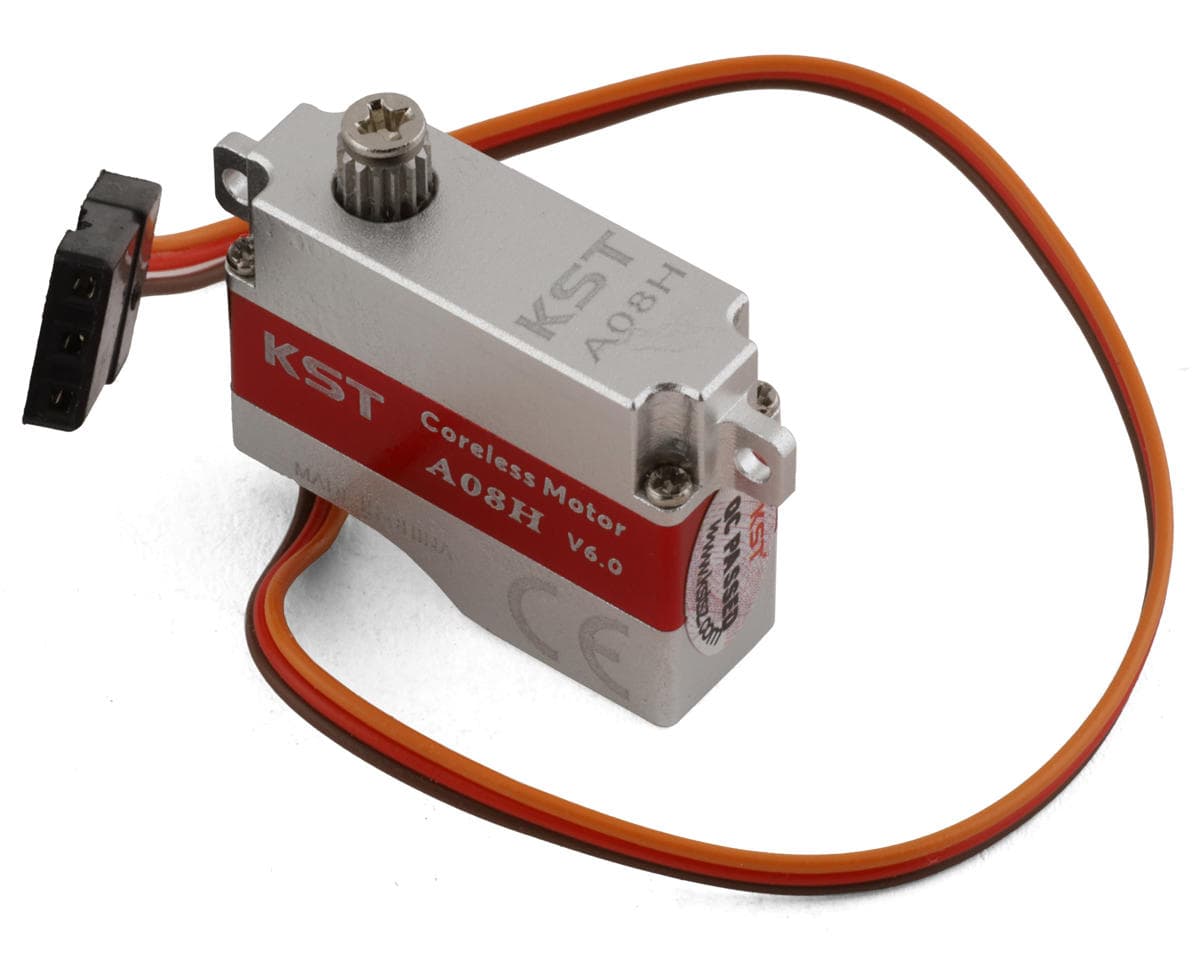

KST A08H V6 3.2kg Digital Metal Gear HV Servo (Horizontal Mount) (Gliders)

This is the KST A08H V6 3.2kg Digital Metal Gear HV Horizontal Servo. This Servo is an ideal choice for gliders looking for a high torque high voltage wing servo. Featuring a motor controller tailored towards providing incredible precision and torque, the coreless motor is paired with a set of updated hardened steel gears that are designed for higher precision and more resistance to damage and provide minimal backlash during operation. Despite the A08H V6 being lighter and slightly smaller than the X08H servo, it actually holds higher torque output than the X08H!

Features:

• HV compatible
• High quality CNC machined aluminum case
• Updated steel gears
• Dual ball bearings
• Designed for high-performance RC Gliders
• Excellent heat dissipation
• Compact and lightweight design
• Excellent torque and speed

Specifications:

• Motor Type: Coreless
• Programmable: Yes
• Torque:
  • 1.4kg.cm (3.8V)
  • 2.2kg.cm (6.0V)
  • 2.8kg.cm (7.4V)
  • 3.2kg.cm (8.4V)
• Speed:
  • 0.20sec/60° (3.8V)
  • 0.13sec/60° (6.0V)
  • 0.10sec/60° (7.4V)
  • 0.09sec/60° (8.4V)
• Rated Voltage: 7.4V
• Voltage Range: 3.8V-8.4V
• Gear Set Material: Hardened Steel
• Case Material: Aluminum Alloy
• Dimensions: 23.5x19.0x8.0mm (LxWxH)
• Weight: ±7g
• Default Travel Angle: ±60° = 120° Total
• Temperature Range: -10C - +65C
• Position Sensor: Potentiometer

Includes:

• (1) A08H V6.0 Coreless Metal Gear HV Servo (Horizontal Mount)

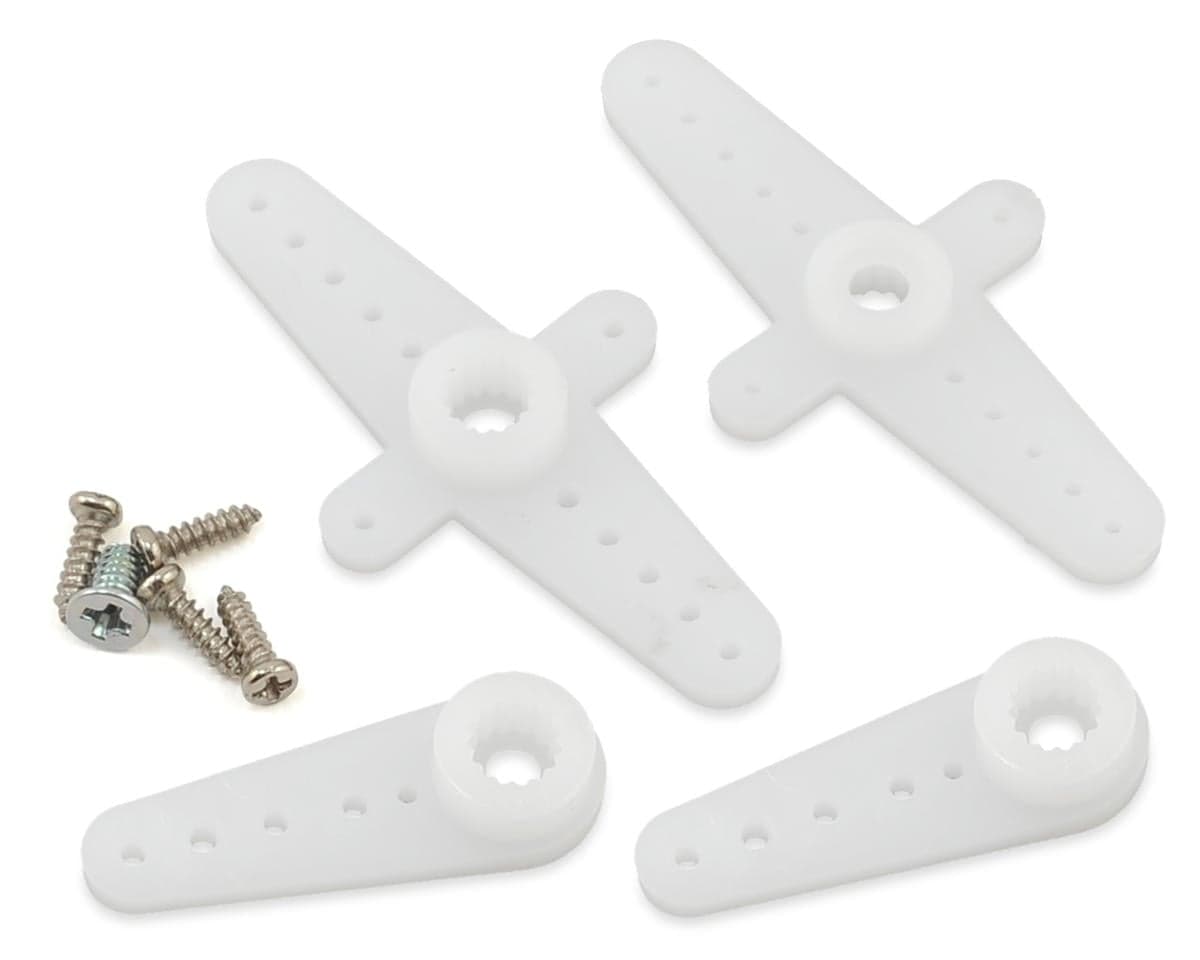

• (4) Plastic Servo Horns
